Water Softener for Hardness Removal – 12×52 FRP Vessel – Automatic Regeneration - H2O Warehouse
AFM® Media FRP Vessel 12x52 – Automatic Backwash Complete with Media - H2O Warehouse

Water Softener for Hardness Removal – 12×52 FRP Vessel – Automatic Regeneration

The 12×52 water softener for hardness removal uses cation softening resin to reduce calcium and magnesium hardness....
Availability: In stock
Product type: Water Filter Vessel
R 11,439.12
R 16,099.00
R 11,439.12
Please hurry! Only 6 left in stock
Subtotal: R 11,439.12
10 customers are viewing this product

Shipping & Delivery

Shipping options and rates are shown at checkout. Orders are normally processed within 3–5 business days. Once your order is dispatched, delivery time depends on your location and the courier service.

Special Delivery Requests / Notes

All 4m & 6m pipe lengths will be cut into 2m lengths for courier delivery. If you require full lengths please email us with your order number and request.

Discounts %

Note: Not all discounts can be compounded, one discount can be applied to an order at a time.
Water Softener for Hardness Removal – 12×52 FRP Vessel – Automatic Regeneration - H2O Warehouse

Water Softener for Hardness Removal – 12×52 FRP Vessel – Automatic Regeneration

R 16,099.00 R 11,439.12

Water Softener for Hardness Removal – 12×52 FRP Vessel – Automatic Regeneration

R 16,099.00 R 11,439.12

The 12×52 water softener for hardness removal uses cation softening resin to reduce calcium and magnesium hardness. This helps limit new hardness-related scale in pipework, geysers and suitable water-using equipment.

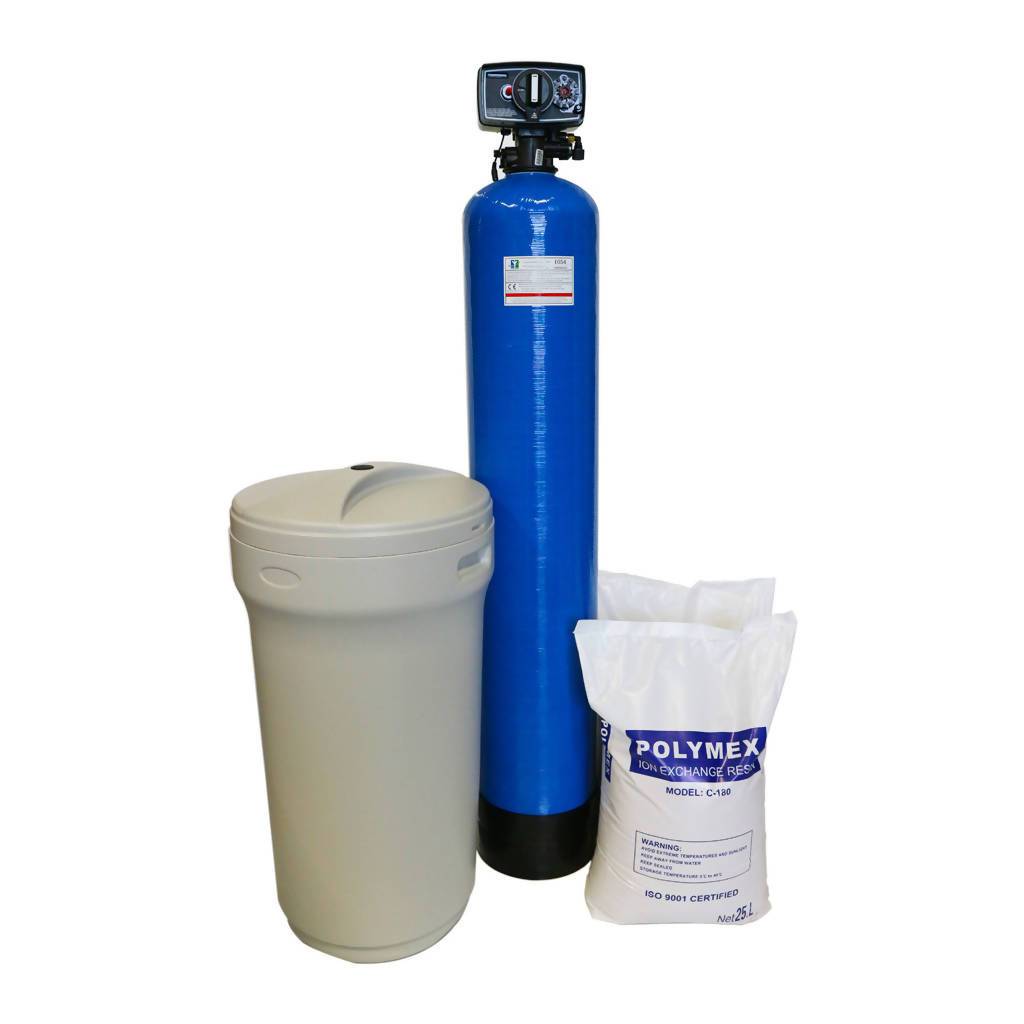

The system combines an 12×52 FRP vessel, Runxin F63C3 automatic metered softener valve, softening resin and a brine tank. Salt-brine regeneration restores the resin for continued use.

Free salt included: One bag of softener salt is included, subject to availability.


Key Features & Benefits

  • Hardness reduction: Ion exchange targets calcium and magnesium responsible for hard water.
  • Automatic metered control: The F63C3 initiates regeneration according to the configured treatment capacity, with delayed or immediate modes available.
  • Regenerable resin: Suitable softener salt is used to restore the resin’s working capacity.
  • Brine tank included: Provides the separate salt-and-water reservoir used during regeneration.
  • FRP vessel: Corrosion-resistant construction houses the resin bed.

Applications

  • Domestic and commercial installations with measured hard water.
  • Point-of-entry softening, sized for the household or site’s peak demand.
  • Reverse-osmosis pre-treatment or compatible process equipment requiring hardness reduction.

Technical Specifications

  • Product code: H2OW22
  • Vessel size designation: 12×52; nominal vessel designation, not the installed height including the valve.
  • Vessel material: Fibreglass-reinforced plastic (FRP).
  • Treatment media: Cation softening resin
  • Head / control: Runxin F63C3 automatic metered softener valve
  • Regenerant: Water-softener salt (sodium chloride).
  • System capacity: Determined by the actual resin loading, inlet hardness, required outlet hardness and salt dose; the valve rating is not the complete system’s treatment rating.
  • Valve model reference: F63C3 / 63604; metered down-flow regeneration.

What’s Included

  • Vessel: 1 × 12×52 FRP vessel.
  • Control valve: 1 × Runxin F63C3 automatic metered softener valve.
  • Resin: Cation softening resin included for this product configuration.
  • Brine tank: 1 × brine tank.
  • Salt: 1 free bag of softener salt, subject to availability.

Installation & Use

  • Sizing and commissioning: Set treatment capacity, salt dose, stage times and regeneration interval from the water analysis and actual resin loading.
  • Pre-treatment: Provide sediment and iron/manganese treatment where necessary to protect the resin.
  • Installation: Provide suitable pipework, isolation/bypass arrangements and a drain for regeneration water. Any feed pump has its own power and installation requirements.
  • Resin loading: Allow the specified expansion space for backwashing; do not fill the vessel completely with resin.
  • Routine care: Keep the brine tank supplied with suitable salt and test treated-water hardness to confirm performance.
  • Regeneration control: Metered delayed mode starts at the programmed regeneration time after capacity is used; immediate mode starts when capacity is exhausted. Intelligent modes use configured resin volume and water hardness.
  • Day override: The F63C3 also supports a maximum-day interval alongside metered operation. Follow the F63C3 sections of the shared manual when configuring the controller.
  • Manual initiation: A regeneration cycle can also be started from the control panel when required.

Important Information

  • Water supply during regeneration: Allow for an interruption to normal softened-water service during regeneration of this single-vessel system.
  • Treatment scope: Softening reduces hardness; it does not disinfect water or replace treatment for other contaminants.
  • Existing scale: The purpose is to reduce further hardness-related scale formation, rather than promise immediate removal of established deposits.
  • Safe servicing: Isolate and depressurise before servicing. Follow the vessel, valve and resin instructions.

Downloads

The shared F63/F68 manual covers several valve models. Use the F63C3 / 63604 sections for this system.
