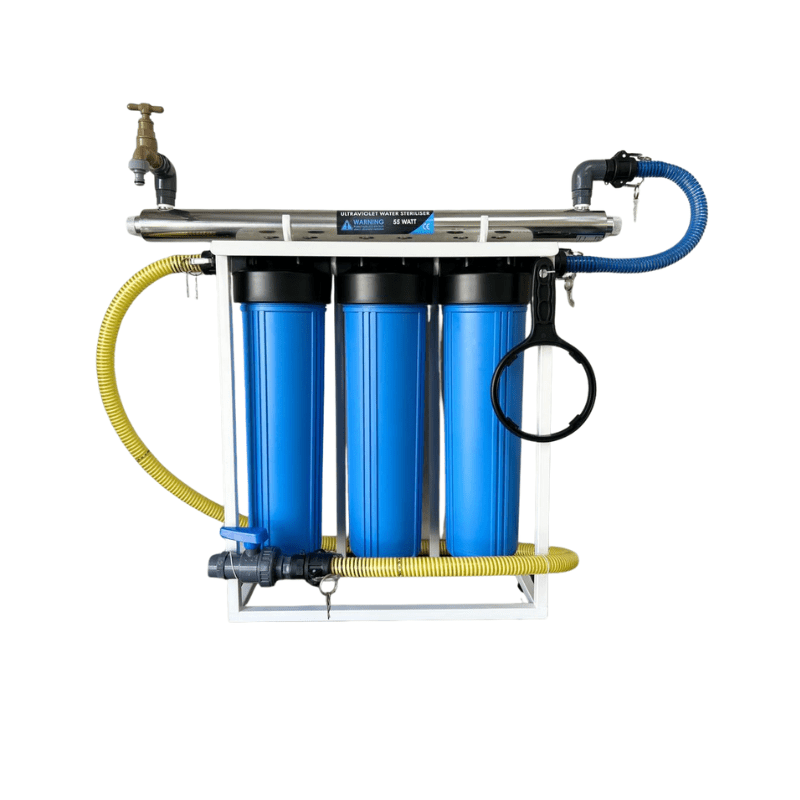

Portable 3-Stage Big Blue Water Filtration System – 20” | 2720 L/h | 55W UV Steriliser | Quick Connect Hoses

This portable 3-stage Big Blue water filtration system is designed for fast, effective water treatment in flexible or temporary setups. Fitted with quick-connect camlock fittings and flexible hoses, the system allows easy connection to any 1” pump outlet and delivers clean water via a garden tap hose fitting.

The unit includes three 20” Big Blue housings with sediment and carbon filtration, followed by a 55W stainless steel UV steriliser for powerful microbial disinfection. Pre-installed in a powder-coated white steel frame with reinforced yellow flexible piping, the system is easy to move, set up, and stow away after use.

Ideal for mobile setups, tank fills, site use, rental properties, camping, or any application needing temporary, high-flow water filtration with microbial control.

Note: The UV lamp is fragile and must be packaged securely during transport or storage.

• Key Features

• 3-Stage 20” Big Blue filtration system with integrated 55W UV steriliser
• Flexible yellow inlet/outlet hoses with industrial camlock fittings
• 1” pump inlet compatibility (camlock type)
• Garden tap with hose connector for filtered water outlet
• High-flow capacity: up to 2720 litres/hour
• Portable white powder-coated steel frame
• Includes spanner wrench for housing removal
• Quick-connect, disconnect and store – fully mobile setup
• Designed for easy transport, setup and stow-away use

✓ Benefits

✓ Quick and simple plug-and-play installation – no hard plumbing required
✓ Delivers clean, disinfected water for off-grid, rental, or temporary setups
✓ UV steriliser kills bacteria, viruses, and microorganisms
✓ Compact, freestanding frame – perfect for mobile or emergency use
✓ Sturdy construction with corrosion-resistant coated steel and reinforced hose
✓ Ideal for borehole, rainwater, tanked, or municipal water supply
✓ Filters are easily replaceable and accessible with supplied spanner

Technical Specifications

• Filter Size: 20” Big Blue (×3 housings)
• Flow Rate: Up to 2720 L/h (depending on pump and inlet pressure)
• Stage 1: 5 micron sediment cartridge
• Stage 2: Carbon block cartridge
• Stage 3: 1 micron polishing or carbon cartridge
• UV Steriliser: 55W stainless steel chamber, ¾” BSP male thread ends
• Inlet Connection: 1” camlock quick-connect with reinforced yellow hose
• Outlet Connection: Garden tap with hose pipe adapter
• Frame: Powder-coated white steel – portable/freestanding
• Additional Components: Disc pre-filter, housing spanner, camlock fittings
• Temperature Range: 4 – 45°C
• Pressure Rating: Up to 6 bar
• Dimensions: ~650 mm (W) x 400 mm (D) x 800 mm (H)

What You Get

1 × Fully assembled 3-stage Big Blue filtration unit with 55W UV
1 × Powder-coated portable steel frame

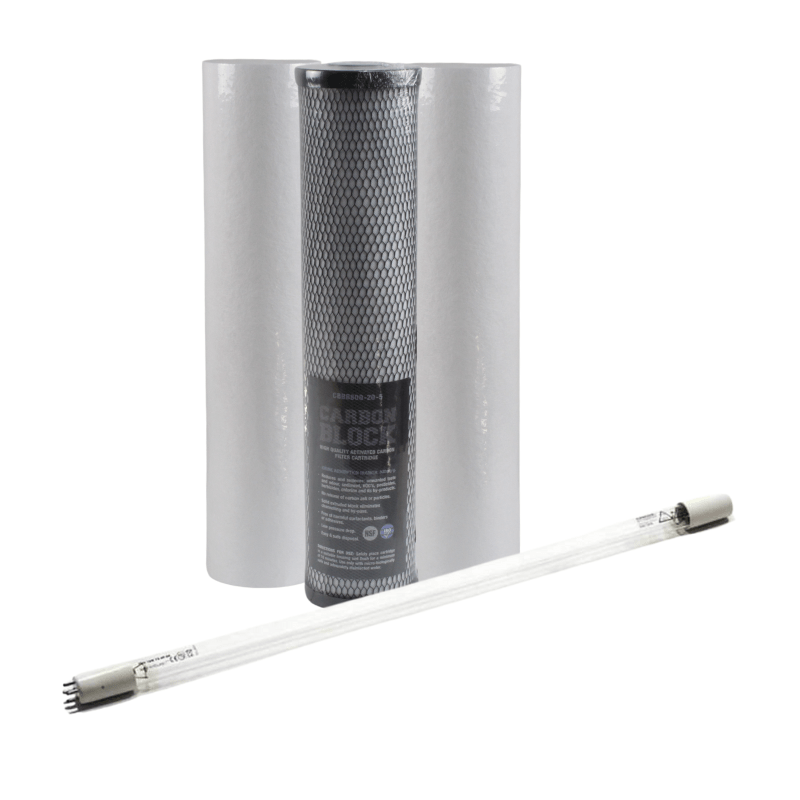

3 × Pre-installed filter cartridges (sediment + carbon + polish)
1 × Flexible yellow inlet hose with 1” camlock fitting
1 × Outlet hose with garden tap and hose adapter
1 × Filter spanner for housing removal

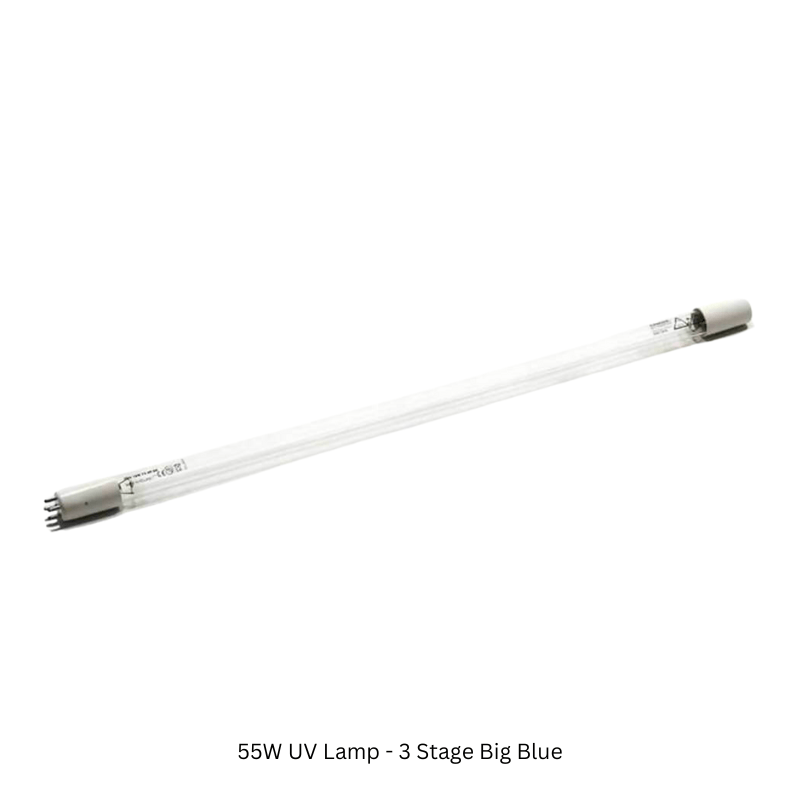

Note: UV bulb included inside the steriliser. Handle with care when transporting.
