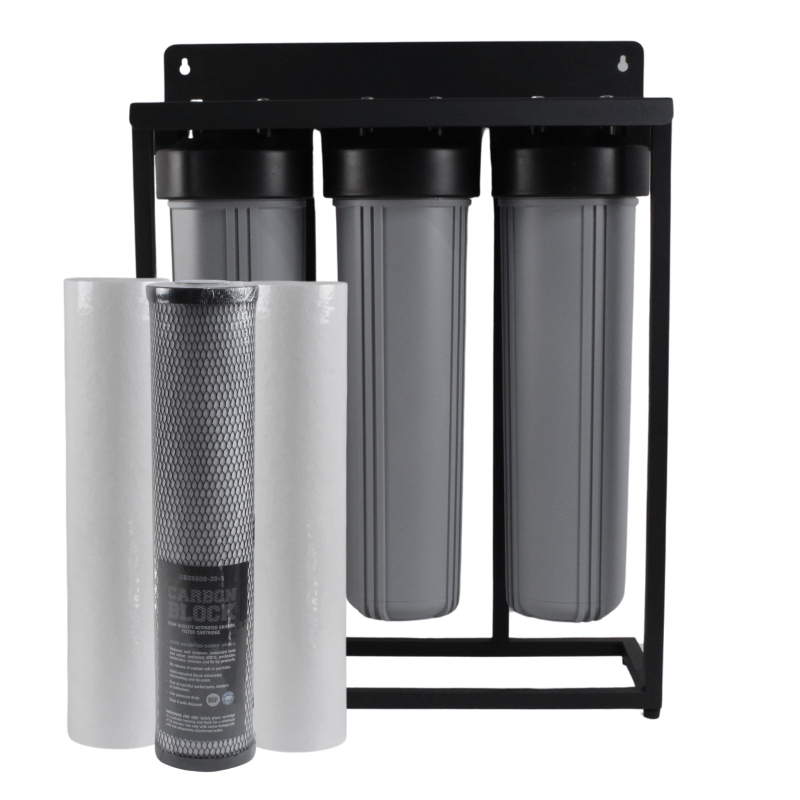

Black powder-coated stainless-steel three-stage 20-inch Big Blue filtration unit with grey housings and premium filters
65W WONDER HC-800 stainless-steel UV steriliser with premium timer and alarm control box
Premium DARLLY 20-inch Big Blue sediment and carbon-block filter cartridge set
Typical installation layout for a three-stage Big Blue filtration system with UV steriliser

3-Stage 20-Inch Big Blue Stainless Steel Filtration System with 65W WONDER® UV Steriliser | 3.02 m³/h

The H2O Warehouse 3-Stage 20-Inch Big Blue Stainless Steel Filtration System with 65W WONDER® UV Steriliser is...
Availability: In stock
Product type: Water Filtration System
R 9,783.63
R 16,067.00
R 9,783.63
Please hurry! Only 5 left in stock
Subtotal: R 9,783.63
10 customers are viewing this product

Shipping & Delivery

Shipping options and rates are shown at checkout. Orders are normally processed within 3–5 business days. Once your order is dispatched, delivery time depends on your location and the courier service.

Special Delivery Requests / Notes

All 4m & 6m pipe lengths will be cut into 2m lengths for courier delivery. If you require full lengths please email us with your order number and request.

Discounts %

Note: Not all discounts can be compounded, one discount can be applied to an order at a time.
3-Stage 20-Inch Big Blue Stainless Steel Filtration System with 65W WONDER® UV Steriliser | 3.02 m³/h - H2O Warehouse

3-Stage 20-Inch Big Blue Stainless Steel Filtration System with 65W WONDER® UV Steriliser | 3.02 m³/h

R 16,067.00 R 9,783.63

3-Stage 20-Inch Big Blue Stainless Steel Filtration System with 65W WONDER® UV Steriliser | 3.02 m³/h

R 16,067.00 R 9,783.63

The H2O Warehouse 3-Stage 20-Inch Big Blue Stainless Steel Filtration System with 65W WONDER® UV Steriliser is a premium point-of-entry water treatment system designed for whole-house, rainwater, borehole and light commercial applications. It combines high-capacity mechanical and carbon filtration with chemical-free UV disinfection in one complete product.

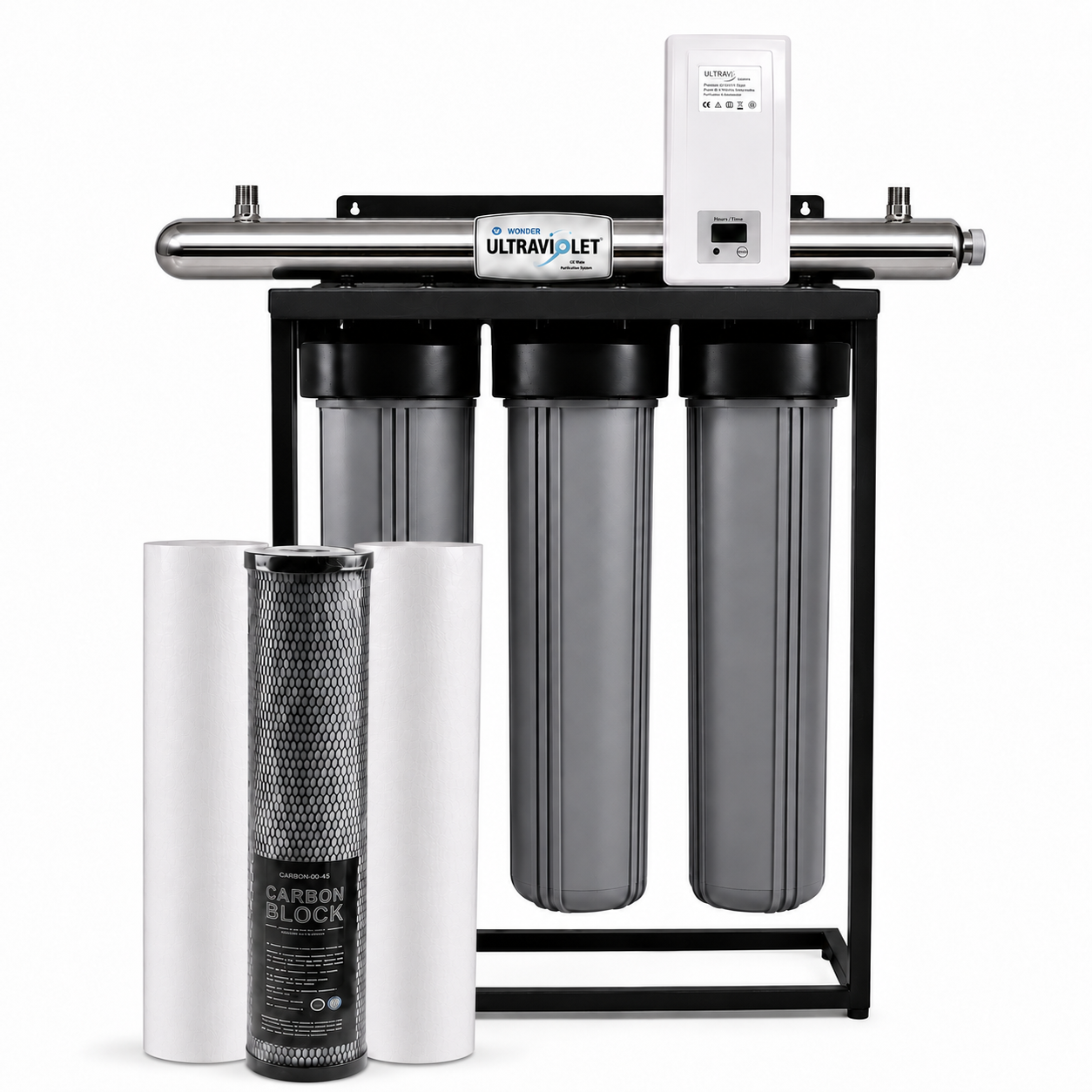

The filtration unit uses a durable black powder-coated stainless-steel frame, three grey double-O-ring Big Blue housings and premium DARLLY sediment cartridges. The separate WONDER® HC-800 65W UV steriliser provides the final disinfection stage at flow rates of up to 3,024 litres per hour, subject to water quality and operating conditions.


Key Features

  • Complete four-stage treatment: three cartridge filtration stages followed by 65W UV disinfection.
  • Premium stainless-steel frame: black powder-coated construction with integrated rear bracket for floor-standing or wall-mounted installation.
  • Grey double-O-ring housings: three heavy-duty 20-inch Big Blue housings for reliable sealing and high-capacity filtration.
  • Premium DARLLY filtration: 5-micron and 1-micron sediment cartridges with an 800 mg/g iodine-rated carbon block.
  • 65W WONDER® HC-800 UV: SUS304 stainless-steel chamber, 1-inch BSP connections and premium timer/alarm control box.
  • Chemical-free disinfection: UV treatment supports microbial control without adding chlorine or altering the water’s taste.

Filtration Stages

  1. Stage 1 – DARLLY 5-Micron PP Sediment Cartridge: captures sand, silt, rust and larger suspended particles.
  2. Stage 2 – Premium 800 mg/g Carbon Block Cartridge: reduces chlorine, unpleasant taste, odour and selected organic contaminants.
  3. Stage 3 – DARLLY 1-Micron PP Sediment Cartridge: provides final particulate polishing before UV treatment.
  4. Stage 4 – 65W WONDER® HC-800 UV Steriliser: exposes clear, pre-filtered water to germicidal UV-C light for chemical-free microbial control.

Technical Specifications

  • Product SKU: H2OW1461
  • System type: 3-stage 20-inch Big Blue filtration with 65W UV disinfection
  • Rated flow: up to 3,024 L/h (50 L/min), subject to pressure, water clarity and cartridge condition
  • Filter housing configuration: 3 × 20-inch Big Blue grey housings with double O-rings
  • Filter connections: 1-inch BSP
  • Frame material: stainless steel with black powder-coated finish
  • Installation configuration: floor-standing or wall-mounted using the integrated rear mounting bracket
  • Overall filtration-unit dimensions: 615 mm (L) × 200 mm (W) × 770 mm (H)
  • UV brand and model: WONDER® HC-800
  • UV power rating: 65W
  • UV connections: 1-inch male BSP threaded
  • UV chamber material: SUS304 stainless steel
  • UV operating pressure: maximum 6.8 bar
  • Operating temperature: 5–45°C
  • UV lamp: T565, approximately 9,000–10,000 operating hours
  • Electrical supply: 230V / 50Hz / single phase
  • Control box: hour meter, LED status indicators and audible alarm

What’s Included

  • 1 × black powder-coated stainless-steel triple frame and rear mounting bracket
  • 3 × grey 20-inch Big Blue filter housings with double O-rings
  • 1 × DARLLY 20-inch Big Blue 5-micron PP sediment cartridge
  • 1 × premium 20-inch Big Blue 800 mg/g carbon block cartridge
  • 1 × DARLLY 20-inch Big Blue 1-micron PP sediment cartridge
  • 1 × Big Blue housing spanner
  • 1 × WONDER® HC-800 SUS304 stainless-steel UV chamber
  • 1 × 65W UV-C lamp
  • 1 × quartz sleeve
  • 1 × premium control box with timer and alarm
  • 2 × UV mounting brackets
  • 1 × UV instruction manual

Applications

  • Whole-house point-of-entry water filtration
  • Rainwater harvesting systems
  • Pre-treated borehole or well water
  • Residential, lodge and light commercial water treatment
  • Pre-treatment for reverse osmosis or other downstream purification systems

Installation and Maintenance

  • Install the UV steriliser after the three-stage filtration unit so only clear, pre-filtered water enters the UV chamber.
  • Use a qualified plumber and provide isolation valves, unions and suitable interconnecting pipework.
  • Replace the cartridges approximately every six months, or sooner where pressure loss or water quality indicates.
  • Replace the UV lamp annually and inspect or clean the quartz sleeve during routine servicing.
  • Use surge protection and install the UV control box in a dry, moisture-protected location.

Important Product Notes

  • The filtration unit and UV steriliser form one complete product but are packaged separately for safe transport.
  • The stated 615 × 200 × 770 mm dimensions apply to the three-stage filtration unit only and exclude the separately packaged UV steriliser.
  • The UV lamp and quartz sleeve are fragile and are not pre-installed for transport.
  • Interconnecting plumbing between the filtration unit and UV steriliser is not included unless specifically stated.
  • UV performance depends on clear water, correct flow, a clean quartz sleeve and a functioning lamp. Additional pre-treatment may be required for water containing elevated sediment, colour, iron, manganese or turbidity.

Choosing This Configuration: Stainless frame with 65W WONDER UV

This version combines grey double-O-ring housings, a black powder-coated stainless-steel frame and the 65W WONDER HC-800 UV unit. The supplied sediment/carbon stages prepare the water for UV. Allow room for the separate UV chamber and its timer/alarm control box, as well as future lamp and sleeve servicing.

Cartridge Size and Treatment Choices

These housings use the 20-inch Big Blue format, nominally 4.5 inches in diameter. Do not substitute 10-inch cartridges or narrow 20-inch slimline cartridges. Check dimensions, end seals and treatment-flow requirements when choosing replacements.

Sediment cartridges trap suspended particles; carbon cartridges target chlorine taste and odour within their rated capacity. A finer micron rating is not automatically better: dirtier water can block fine cartridges quickly and reduce flow. Specialist Siliphos, GAC/KDF or Quantum Disinfection cartridges must be chosen for their own water-quality limits and purpose, not simply because they fit the housing.

Plan the Installation and Running Costs

  • Allow working space below each bowl for cartridge removal, access to isolation valves and room for any UV lamp or sleeve to be withdrawn.
  • Support the connecting pipework separately. Check pressure, surges, fittings and mounting suitability before installation; the lowest-rated component limits the complete system.
  • Choose a practical isolation and servicing arrangement. Installation, additional fittings and future cartridges are separate from the supplied components unless expressly listed above.
  • Monitor flow and cartridge condition. Replace cartridges at their rated interval or earlier when pressure loss or treatment capacity requires it; appearance alone is not a reliable service indicator.

Using the UV Stage Correctly

A UV-equipped system can be a practical option for municipal water or collected rainwater when water quality, pre-filtration and the UV-rated treatment flow are suitable. Provide a protected electrical supply and follow the supplied maintenance instructions. Replace the lamp on schedule and inspect the quartz sleeve: a glowing lamp does not establish adequate treatment.

Laboratory testing is recommended before relying on the water for drinking, including testing the treated water. UV does not remove dissolved salts or hardness, and some sources require additional treatment. No configuration is a guarantee that every source becomes potable.

Compare Options and Find Replacements

Compare all three-stage systems · Replacement cartridge packs · Individual 20-inch Big Blue cartridges.

Replacement cartridges and alternative treatment media are sold separately. Check that the selected pack matches this model’s intended treatment sequence; the standard sediment/carbon pack is not a like-for-like replacement for a Siliphos configuration.
