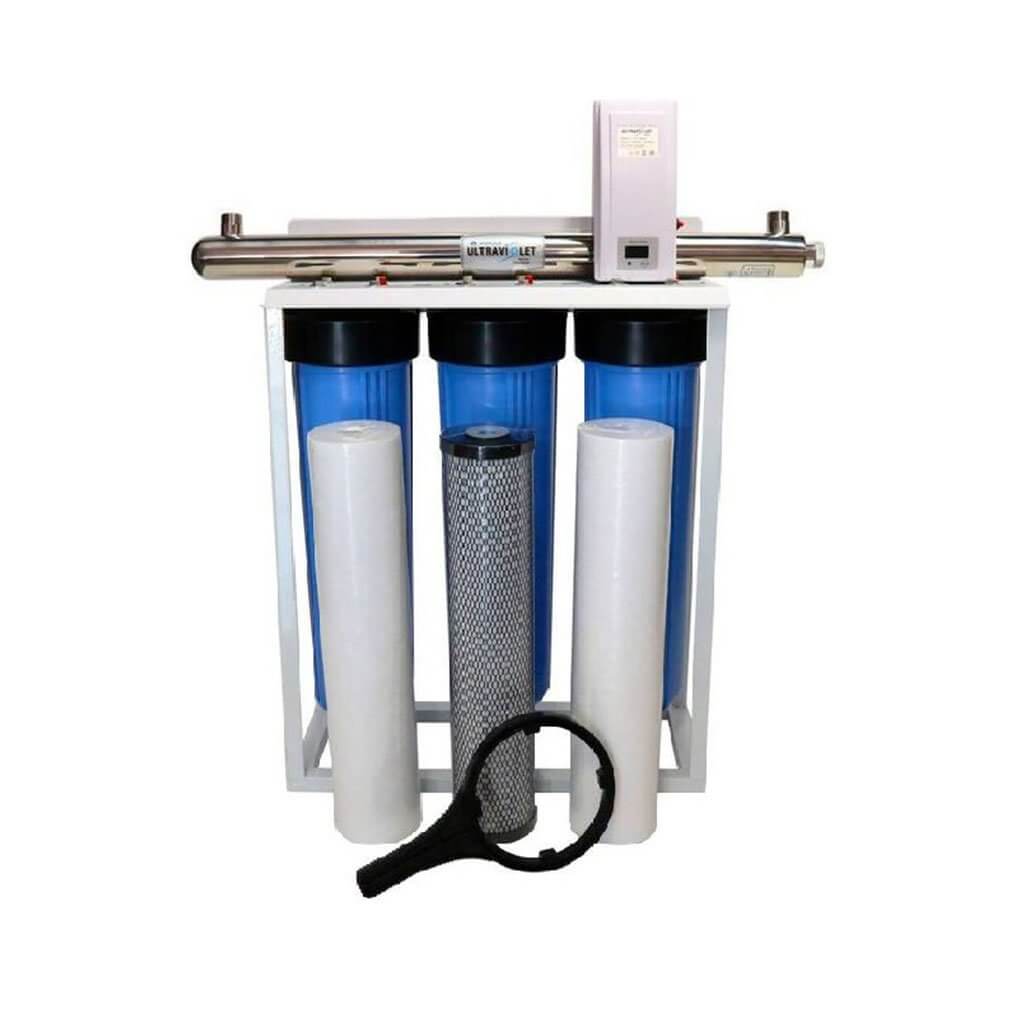

3 Stage Big Blue Water Filtration System with Advanced 65W WONDER® Germicidal UV Sterilizer

Protect your home’s water supply with this high-performance 3 Stage Big Blue Water Filtration System, complete with an advanced 65W WONDER® Germicidal UV Sterilizer for thorough disinfection. Designed to handle municipal or rainwater sources, this system is ideal for households concerned about sediment, chlorine, odours, and microbial contamination (including E.coli, Giardia and other protozoa).

The triple-stage Big Blue system combines two NSF-certified sediment filters and a carbon block filter, while the UV sterilizer provides chemical-free disinfection, neutralising harmful microorganisms with high-quality European-made UV bulbs rated for 8000 hours of germicidal performance.

Whether you're filtering tank-collected rainwater or enhancing your municipal water quality, this unit delivers clean, clear, and safe water at flow rates of ±3024 litres per hour – enough to power up to five household taps simultaneously.

Key Features

• Complete 3-Stage Big Blue Filtration System – Removes sediment, rust, algae, chlorine, bad taste, odour and more.

• 65W WONDER® UV Sterilizer – Disinfects water by destroying 99.99% of bacteria, protozoa, spores and viruses.

• High Flow Capacity – Up to ±3024 LPH (litres per hour), suitable for whole-house water supply.

• European-Manufactured UV Bulb – Guaranteed 8000-hour germicidal performance.

• Premium Control Box – Includes LED display, built-in timer, and audible alarm for UV lamp maintenance.

• NSF Certified Cartridges – Assures high-quality water treatment and safety.

• Ideal for Rainwater & Municipal Supply – Especially effective in South African water conditions.

Filtration Stages

1. Stage 1 – 5-Micron Sediment Filter
   Removes sand, mud, slime, rust and other large particles.

2. Stage 2 – Carbon Block Filter
   Reduces chlorine, bad taste, odour and organic compounds.

3. Stage 3 – 1-Micron Sediment Filter
   Final polish to remove finer particles before UV treatment.

4. UV Sterilization – 65W WONDER® Germicidal UV Unit (HC-800)
   Disinfects water by neutralising bacteria, viruses, and cysts without the use of chemicals.

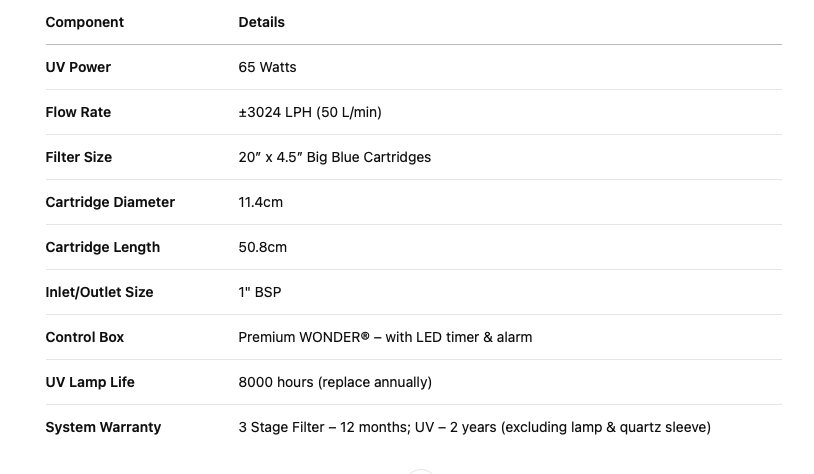

Technical Specifications

What You Get

• 3 x 20" Big Blue Filter Housings (mounted on frame)

• 1 x Mounting Bracket / Frame

• 1 x 5-Micron Sediment Filter (NSF Certified)

• 1 x Carbon Block Filter (NSF Certified)

• 1 x 1-Micron Sediment Filter (NSF Certified)

• 1 x 65W WONDER® UV Sterilizer (Model HC-800)

• 1 x Premium Control Box (LED timer, alarm)

• Pre-fitted cartridges (wrapped inside housings in correct sequence)

Applications

• Whole-House Filtration

• Rainwater Harvesting Systems

• Municipal Water Disinfection

• Light Commercial Applications

• Pre-treatment for Reverse Osmosis Systems

What You Will Need (Not Included)

• 2 x AMG Fittings

• 1 x Shut-Off Valve

• 2 x RCG Fittings

• 3 x Unions

• 4 x Elbows, PVC Pipe

• PVC Glue & Thread Tape

Important Notes

• UV Lamp is not pre-installed to prevent damage during shipping. Installation required.

• Filter cartridges are installed inside housings but wrapped in protective packaging – unwrap before use.

• It is recommended to use a certified plumber for installation.

• Replace filter cartridges every 6 months, and the UV lamp every 12 months for optimal performance.

• Quartz sleeves and lamps are consumables and not covered under warranty due to their fragile nature.
