AquaGem InverMax DCX25 Inverter Pool Pump | 2.5 kW
Designed for demanding circulation duties, the AquaGem InverMax DCX25 pairs a 2.5 kW full-inverter drive with an...
Availability:
In stock
Product type:
Inverter Pool Pumps
- R 34,999.00
- R 34,999.00
- Unit price
- per
Please hurry! Only 2 left in stock
10 customers are viewing this product
Shipping & Delivery
Select from shipping options at Check Out -
Shipped & Delivered Within 2- 5 Business Days
Special Delivery Requests / Notes
All 4m & 6m pipe lengths will be cut into 2m lengths for courier delivery. If you require full lengths please email us with your order number and request.
Discounts %
Note: Not all discounts can be compounded, one discount can be applied to an order at a time.
Designed for demanding circulation duties, the AquaGem InverMax DCX25 pairs a 2.5 kW full-inverter drive with an IE4 permanent-magnet motor. Its substantial hydraulic performance and connected controls make it a compelling choice when the pool system needs more than a conventional residential pump.
Why choose InverMax
- Full-inverter operation adapts output to the circulation task, helping avoid unnecessary full-speed running.
- A large 2.7 litre strainer basket supports debris handling and convenient inspection.
- Wi-Fi and iGarden app control complement the pump’s touch interface.
- InverSilence technology supports quieter operation at reduced speeds.

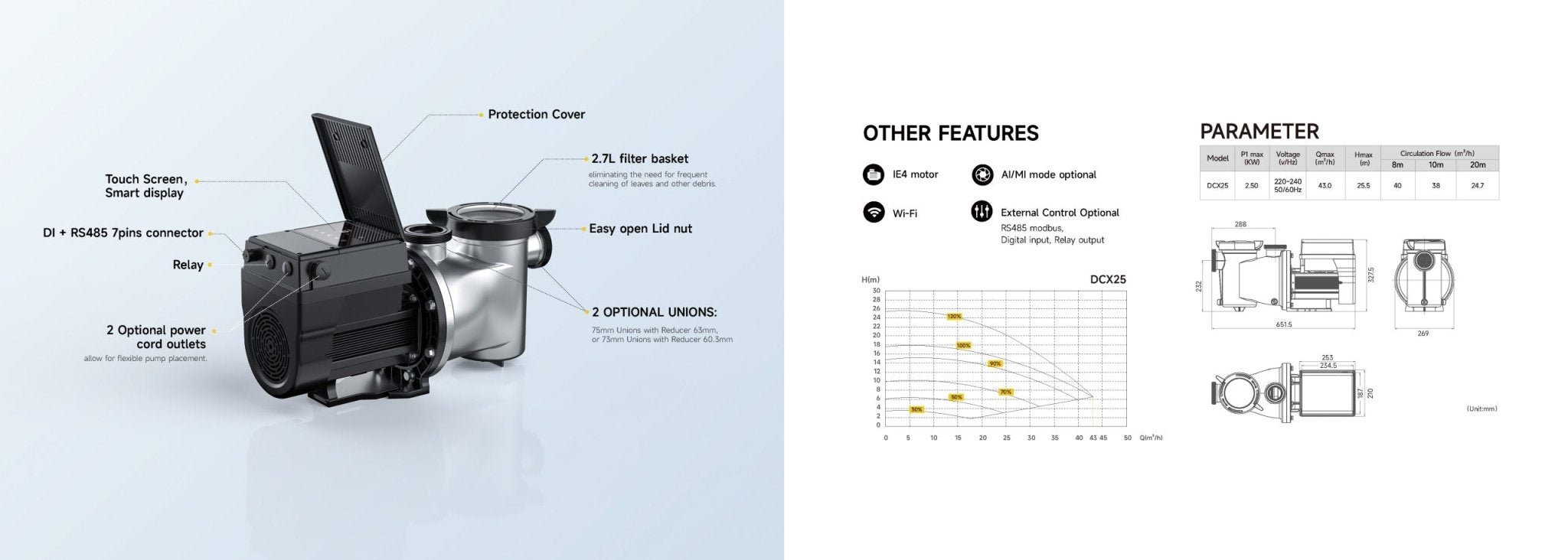

- Select the pump against the system duty point using the official performance curve.
DCX25 specifications
| Model | DCX25 |
|---|---|
| Maximum input power | 2.5 kW |
| Electrical supply | 220–240 V AC, 50/60 Hz |
| Maximum flow (Qmax) | 43 m³/h |
| Maximum head (Hmax) | 25.5 m |
| Flow at 10 m head | 38 m³/h |
| Flow at 8 m head | 40 m³/h |
| Running capacity | 30–120% |
| Motor | IE4 permanent-magnet motor |
| Controls | Touch controller, Wi-Fi and iGarden app |
| Ingress protection | IP55 |
Select the right pump
Choose the DCX25 by required circulation flow and total dynamic head. The official curve shows how output changes with system resistance. Maximum flow and maximum head are separate endpoints, not simultaneous operating values. Actual energy use and sound level vary with speed, installation and operating conditions.
Official product brochure
