(Sediment + Carbon Block + Siliphos Cartridge)
The 3-Stage Big Blue Descale Filtration System is a point-of-entry whole-house water filter that delivers clean, fresh water to every tap while protecting your plumbing and appliances from limescale build-up.
With its 20-inch Big Blue housings and 2720 L/h flow capacity, this system is suitable for households, small businesses, and light industrial setups that want reliable water treatment without an electrical supply for the filter bank. The Siliphos stage uses slowly dissolving treatment media.
Technical Specifications
Flow rate: 2720 L/h
Filter size: 20-inch Big Blue cartridges
Inlet/outlet: 1” BSP thread
Maximum operating pressure: 6 bar
Filtration stages:
Includes: Epoxy-coated floor-standing and wall-mountable frame + housing spanner
Why Choose the 3-Stage Big Blue Descale System?
Unlike standard whole-house filters, this system goes beyond just improving taste and clarity — it actively protects your infrastructure.
Siliphos Anti-Scale Technology: Siliphos media supports scale and corrosion control where its operating limits and the water chemistry are suitable. It does not remove hardness minerals and is not a water softener.
Long-Term Savings: Can help reduce scale-related maintenance where the system is appropriately selected and serviced.
Simple to Run: Works without electricity or a chemical dosing pump, making it low-maintenance.
What You Get

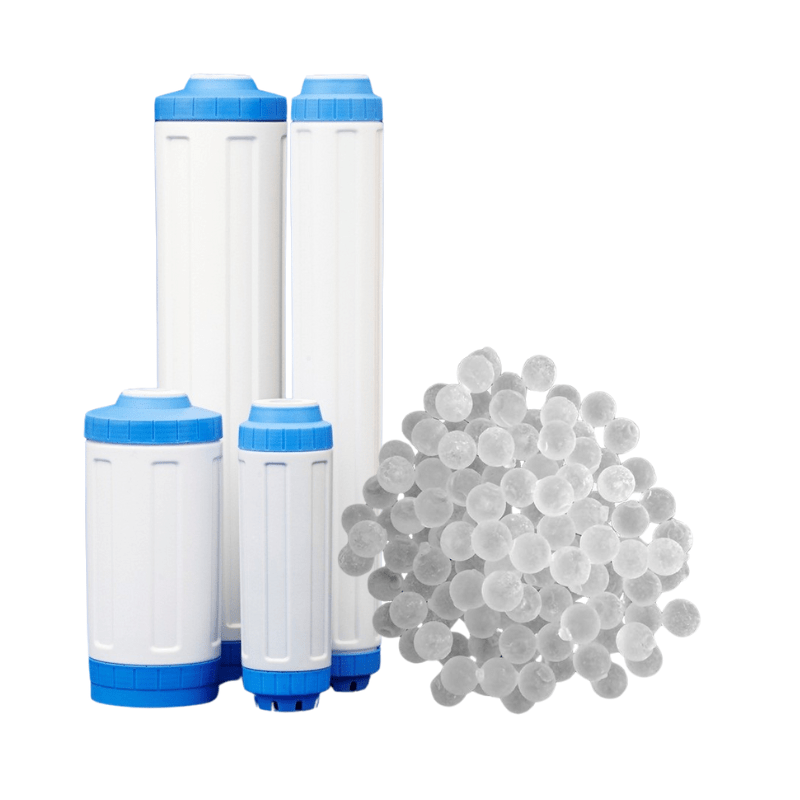

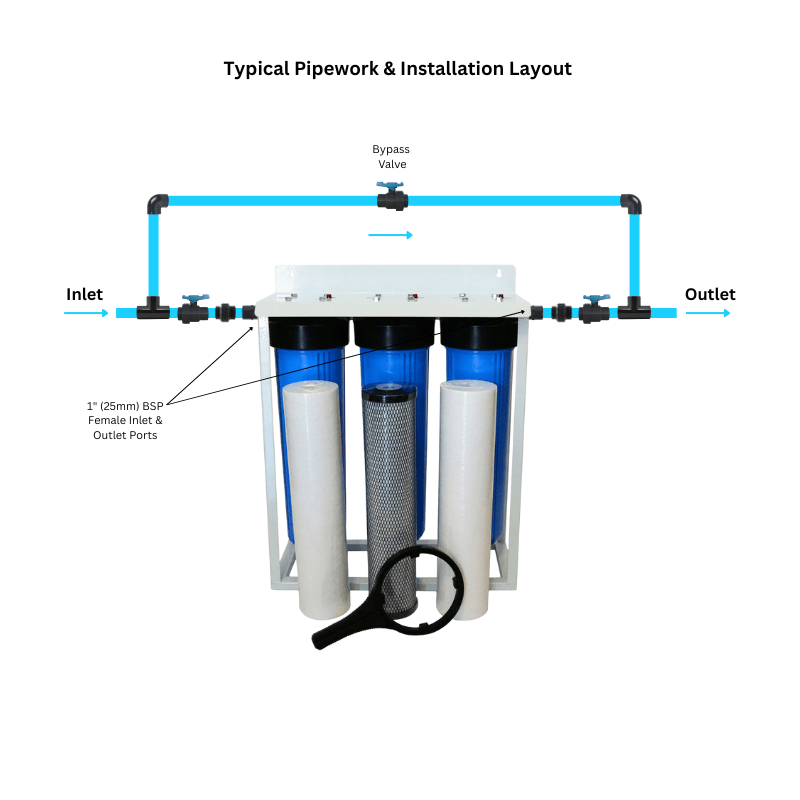

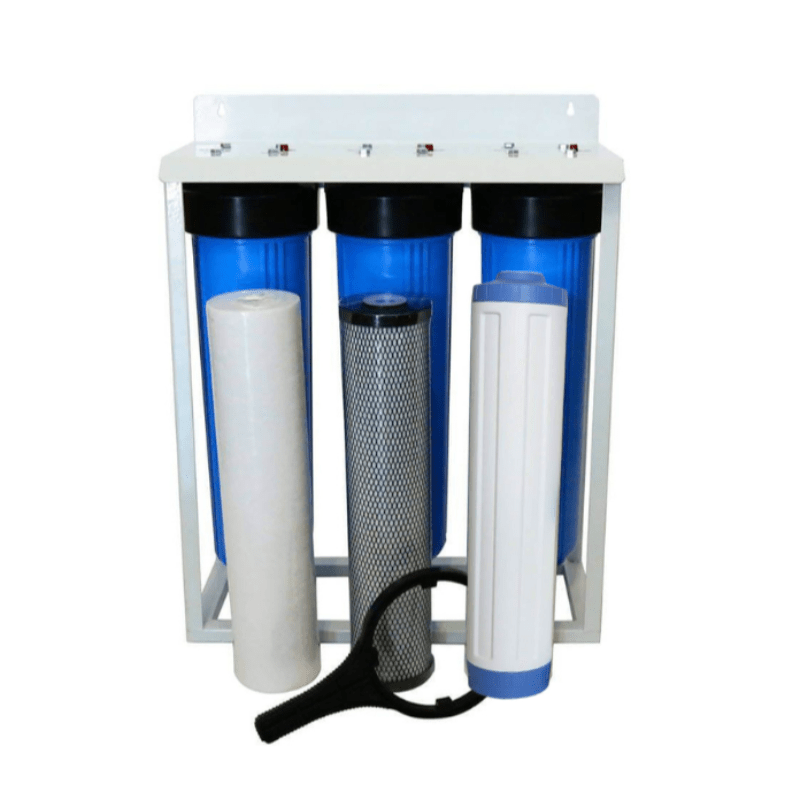

3 x 20” Big Blue filter housings with 1” BSP connections
Stage 1: 5 Micron PP Sediment Cartridge
Stage 2: Carbon Block (CTO) Cartridge
Stage 3: Refillable Siliphos Cartridge (with initial media fill)
Epoxy-coated floor-standing and wall-mountable frame
Housing spanner

Benefits
Removes sediment, silt, rust, and other suspended solids
Reduces chlorine, bad odour, and chemical taste
Helps inhibit scale build-up where the water chemistry and operating conditions suit the media
Supports corrosion control under suitable water conditions
Supplies filtered water to every tap in the house
Easy to maintain with affordable, widely available replacement cartridges
Applications
Whole-house filtration for municipal or borehole water
Protection for geyser heating elements and appliances
Small commercial setups (offices, guesthouses, cafés)
Irrigation systems where scaling is a concern
Filter Replacement Guide
Filter lifespan depends on water quality and usage. As a general guideline:
Stage 1 – Sediment Filter (5 micron): Replace every 6 months
Stage 2 – Carbon Block (CTO): Replace every 6 months
Stage 3 – Siliphos Media: Inspect media consumption regularly and refill according to the cartridge and media instructions; do not overfill.
Routine maintenance keeps the system performing as intended while protecting your plumbing and appliances.
The third position is a Siliphos cartridge rather than the standard final sediment cartridge. This provides a scale-inhibition option alongside sediment and carbon treatment. Siliphos is not a water softener and does not remove dissolved hardness; select it for the water chemistry and application.
These housings use the 20-inch Big Blue format, nominally 4.5 inches in diameter. Do not substitute 10-inch cartridges or narrow 20-inch slimline cartridges. Check dimensions, end seals and treatment-flow requirements when choosing replacements.
Sediment cartridges trap suspended particles; carbon cartridges target chlorine taste and odour within their rated capacity. A finer micron rating is not automatically better: dirtier water can block fine cartridges quickly and reduce flow. Specialist Siliphos, GAC/KDF or Quantum Disinfection cartridges must be chosen for their own water-quality limits and purpose, not simply because they fit the housing.
This configuration does not include UV. Sediment and ordinary carbon cartridges are not reliable disinfection and do not remove dissolved hardness or salts. Water from rainwater tanks or boreholes may require additional treatment. Test source and treated water before relying on the installation for drinking-water use.
Compare all three-stage systems · Replacement cartridge packs · Individual 20-inch Big Blue cartridges.
Replacement cartridges and alternative treatment media are sold separately. Check that the selected pack matches this model’s intended treatment sequence; the standard sediment/carbon pack is not a like-for-like replacement for a Siliphos configuration.
