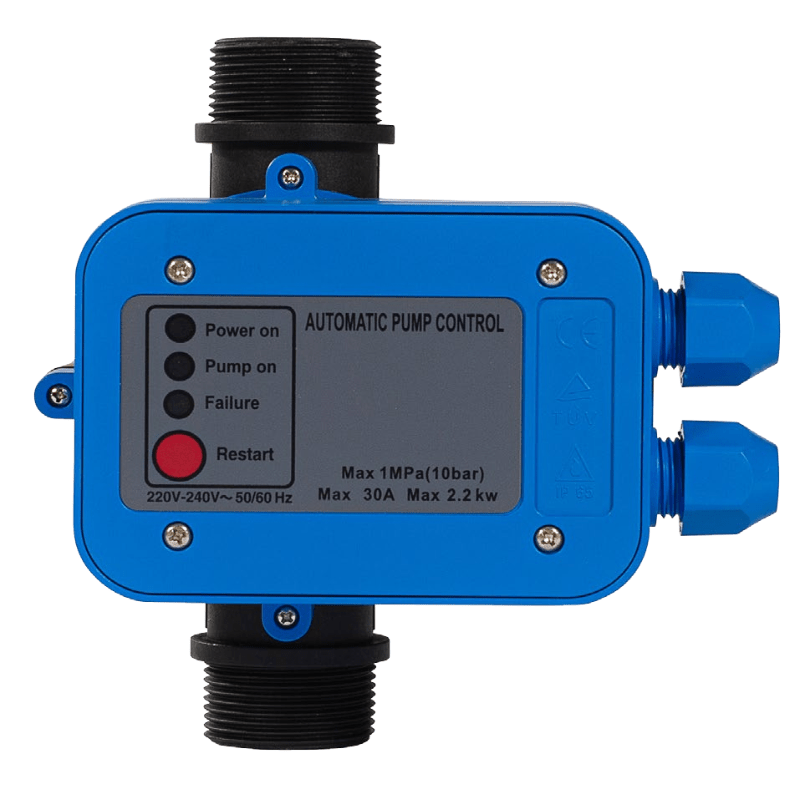

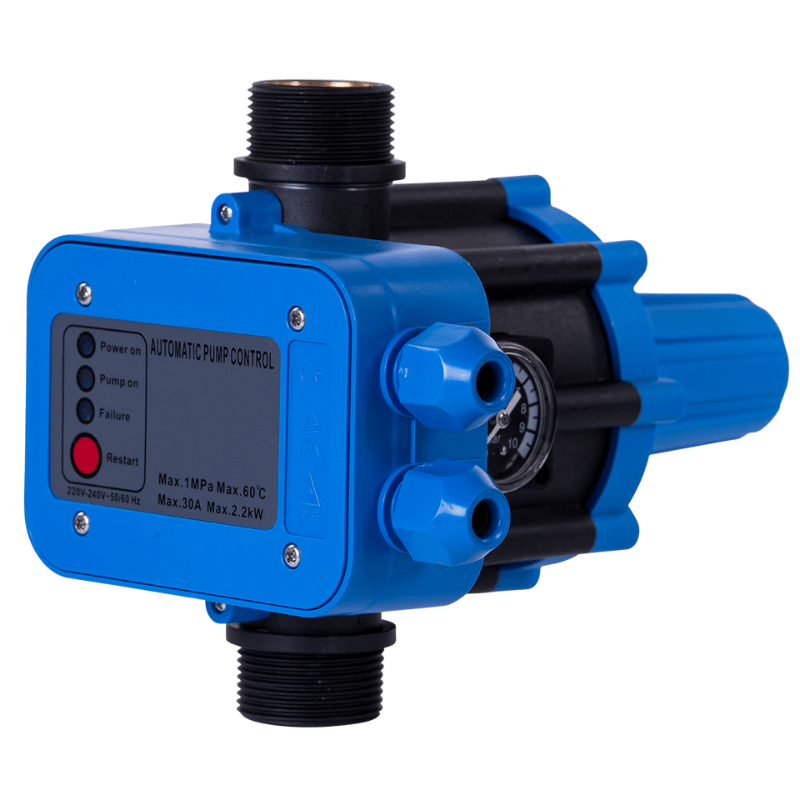

VEGA SKD-11 Automatic Pressure Controller for Water Pumps, 10bar (30A, 2.2kW, 230V)

The SKD-11 Automatic Pressure Controller for 2.2kW Water Pumps, 10bar Maximum Pressure ensures your water pump is always running at its optimum performance.

Automatic pressure controller that allows simple installation
Easy-to-use with a clear & user-friendly interface
Provides stable performance, low maintenance & extended operation lifetime
Equipped with automatic stop/start & automatic shutoff in the case of your pump running dry
Always keeps the pump at its maximum pressure

Performance range
Flow from 0 to 15m³/h.
The SKD-11 flow control starts the pump automatically when pressure decreases (for example taps are opened) and stops it when there is no flow/water shortage (for example taps are closed). It can be used for drinking water or non-potable water piping systems.

Product specifications:

Starting pressure: 1.5bar to 2bar
Maximum rated current: 30A
Maximum allowable pressure: 10bar
Rated voltage: 220V
Frequency: 50/60Hz
Working power: 2.2kW (220-240V)
Maximum ambient temperature: 40ºC
Maximum liquid temperature: 60ºC
Protection degree: IP65
Connection thread: 1 1/4 inch male
