Vega 3SDM2/11 Borehole Pump Kit | 0.25 kW | 220–240 V
The Vega 3SDM2/11 is a 0.25 kW submersible borehole pump and motor set for water supply from...
Availability:
In stock
Product type:
Borehole Pumps
- R 2,437.89
R 2,868.10- R 2,437.89
- Unit price
- per
Please hurry! Only 2 left in stock
10 customers are viewing this product
Shipping & Delivery
Select from shipping options at Check Out -
Shipped & Delivered Within 2- 5 Business Days
Special Delivery Requests / Notes
All 4m & 6m pipe lengths will be cut into 2m lengths for courier delivery. If you require full lengths please email us with your order number and request.
Discounts %
Note: Not all discounts can be compounded, one discount can be applied to an order at a time.
The Vega 3SDM2/11 is a 0.25 kW submersible borehole pump and motor set for water supply from boreholes, wells and reservoirs. Its compact 75 mm pump body suits installations with a minimum internal well diameter of approximately 102 mm. The 11-stage hydraulic assembly provides up to 48 m shut-off head, with model-specific delivery shown below.
Key features
- Continuous-duty design for domestic, farming and irrigation water supply.
- Replaceable pump and motor components support servicing.
- AISI 304 stainless steel pump and motor external casings.
- Cast-copper alloy delivery casing and suction lantern; PC diffusers and POM impellers.
- Single-phase 220–240 V, 50 Hz motor supplied with a matched start control box.
- 25 mm nominal (1 inch) discharge connection.
Benefits for your water system
✓ Compact multistage design for narrow borehole installations.
✓ Matched pump, motor and control box supplied together.
✓ Model-specific flow/head data supports accurate selection.
✓ Choice of standard or extended installation kit.
3SDM2/11 technical specifications
| Model / SKU | 3SDM2/11 |
|---|---|
| Motor power | 0.25 kW |
| Supply | 220–240 V AC, single phase, 50 Hz |
| Maximum published flow | 2.7 m³/h (45 L/min) |
| Maximum head (shut-off) | 48 m |
| Head at 1.8 m³/h (30 L/min) | 36 m |
| Head at 2.7 m³/h (45 L/min) | 15 m |
| Discharge | 25 mm nominal (1 inch) |
| Pump / motor diameter | 75 mm maximum pump body / 73 mm motor |
| Assembled pump-and-motor length | 752 mm |
| Pump-and-motor net mass | 6.9 kg; accessories and packaging excluded |
| Minimum well internal diameter | Approximately 102 mm (manufacturer: 4 inch minimum) |
| Maximum liquid temperature | 35 °C |
| Maximum sand content | 0.25% |
| Curve tolerance | ISO 9906, Grade 2B |
| Manufacturer warranty | 1 year, subject to applicable terms and conditions |

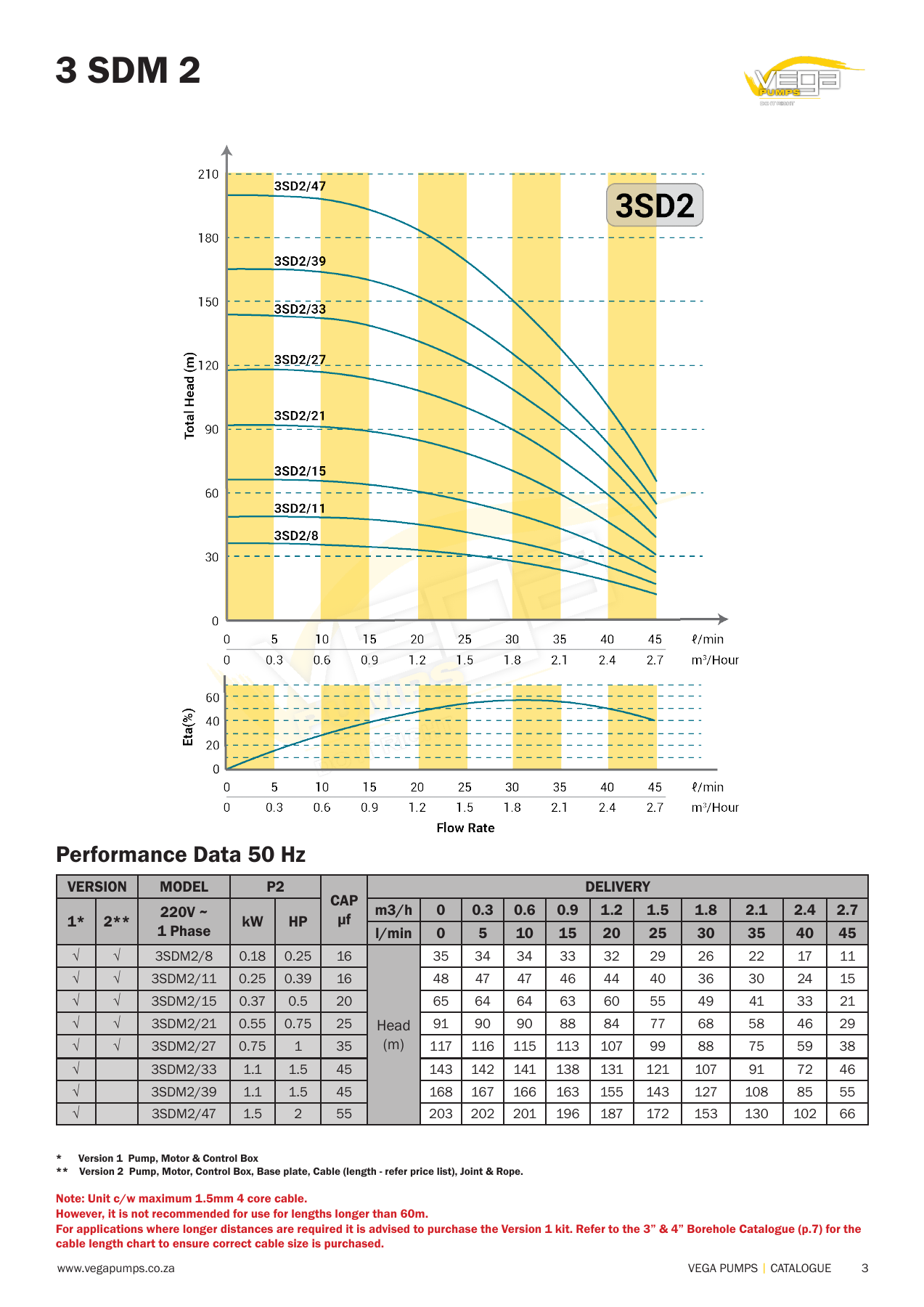

Model-specific performance at 50 Hz
| 0.0 m³/h (0 L/min) | 48 m head |
|---|---|
| 0.3 m³/h (5 L/min) | 47 m head |
| 0.6 m³/h (10 L/min) | 47 m head |
| 0.9 m³/h (15 L/min) | 46 m head |
| 1.2 m³/h (20 L/min) | 44 m head |
| 1.5 m³/h (25 L/min) | 40 m head |
| 1.8 m³/h (30 L/min) | 36 m head |
| 2.1 m³/h (35 L/min) | 30 m head |
| 2.4 m³/h (40 L/min) | 24 m head |
| 2.7 m³/h (45 L/min) | 15 m head |
Maximum flow and maximum head are separate operating points and are not delivered simultaneously. Select the pump against the required flow and total dynamic head, including the pumping water level, elevation, required outlet pressure and pipework losses. Match the pumping rate to the sustainable borehole yield.
What is included
- Version 1: pump, motor and control box.
- Version 2: pump, motor, control box, baseplate, 40 m cable, cable joint and rope. The cable length is specified for this kit; confirm the rope length when planning the installation.
Select the required kit version where options are offered. Delivery pipework, valves, separate water-level controls and installation labour are additional unless specified in your quotation.
Installation and protection
Use a qualified installer for cable sizing, electrical protection, earthing and commissioning. Provide suitable water-level and dry-run protection; the supplied start box should not be assumed to provide dry-run protection. Keep the motor suitably submerged and cooled. The manufacturer advises the Version 1 kit with separately sized cable where longer cable runs are required; do not assume that the Version 2 cable is suitable for your installation.

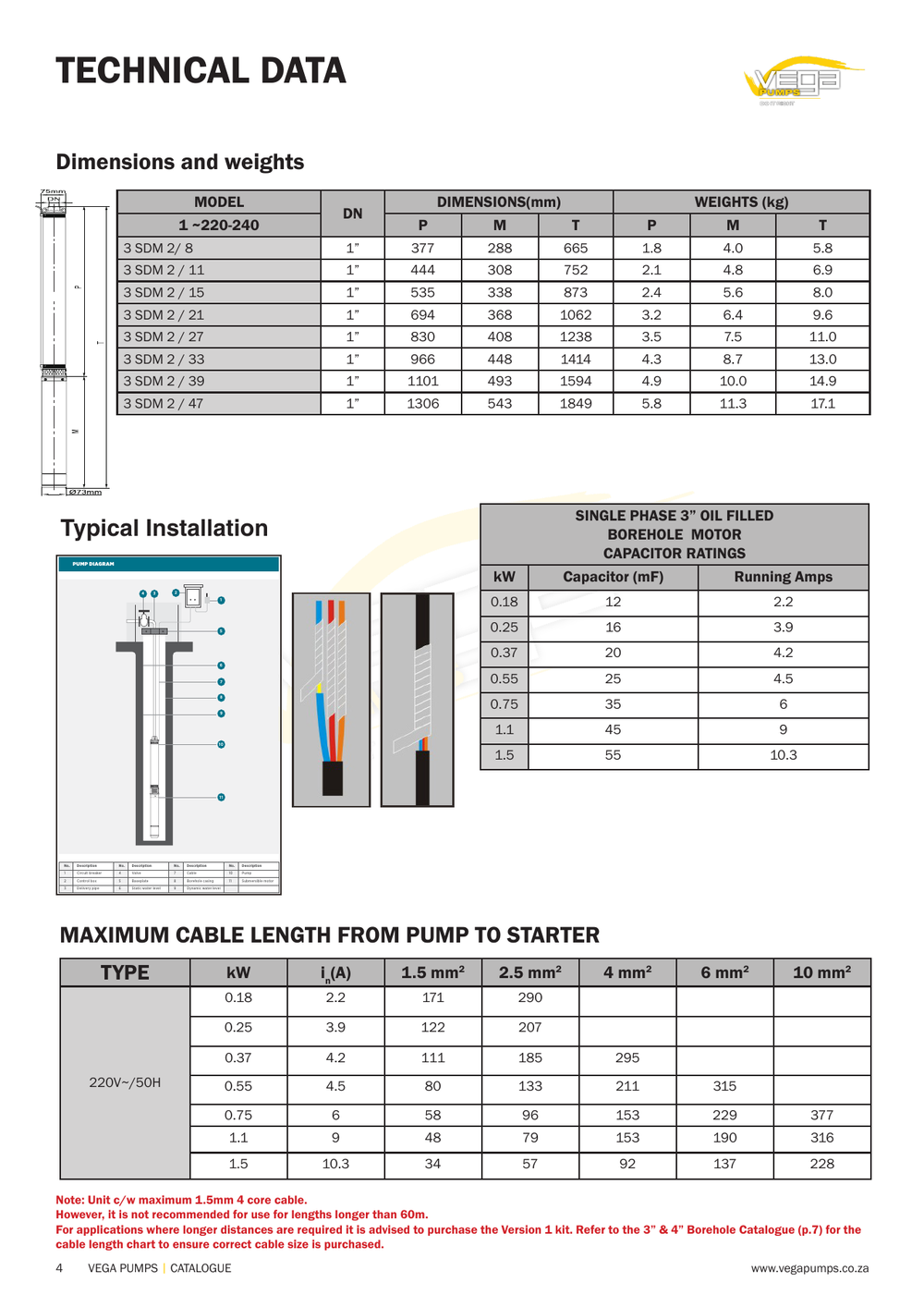

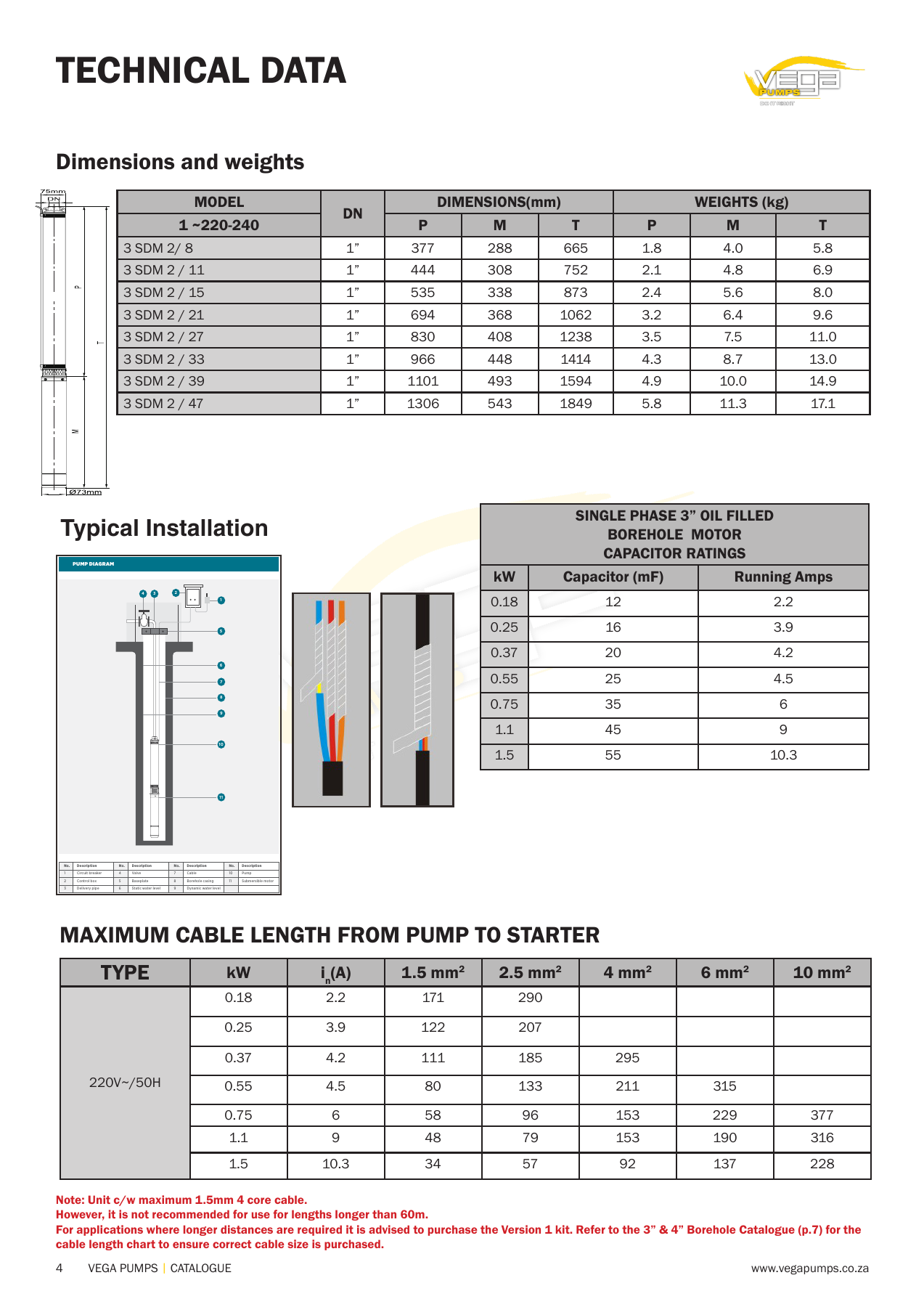

Manufacturer performance and dimensions
Data sheet download
Download the official Vega 3SDM borehole pump data sheet (PDF)

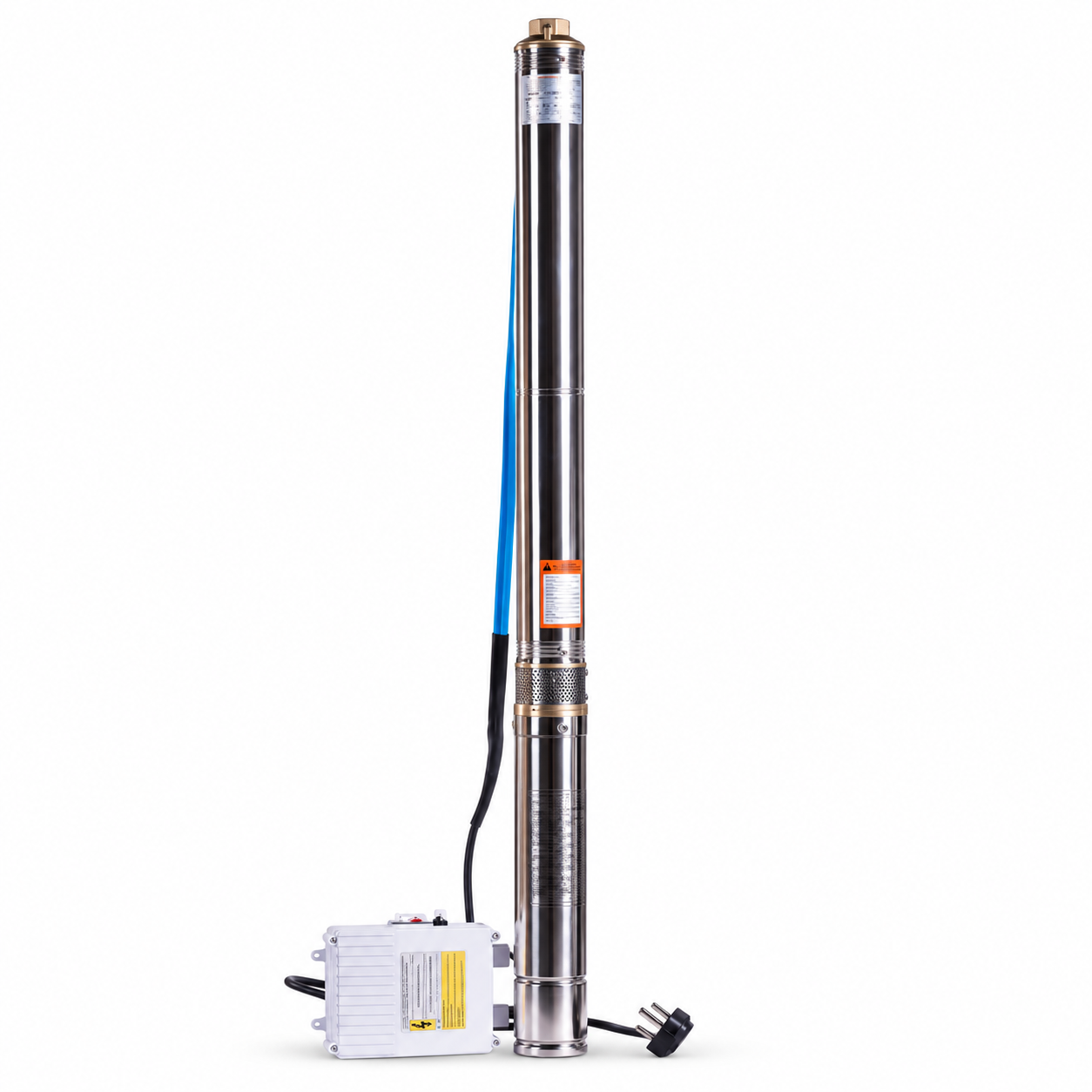

Main image is a representative catalogue-based illustration of the Vega 3SDM range. Pump length and supplied accessories depend on the selected model and kit version.
