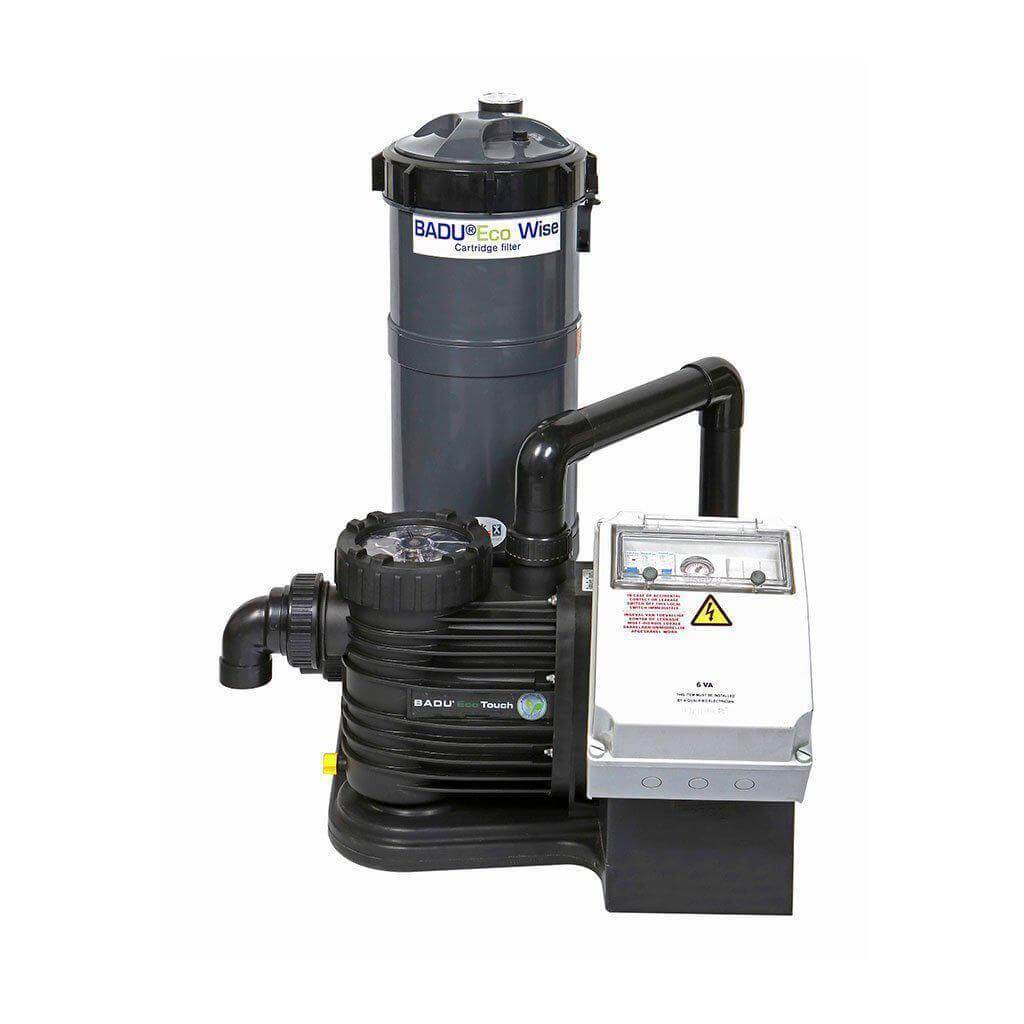

SPECK BADU Eco Combi-Pro 3 with EcoTouch Self-Priming Circulation Pump & Eco Wise 3 Cartridge Filter (0.24/0.5/0.75kW, 230V)

The SPECK BADU Eco Combi-Pro 3 with EcoTouch Self-Priming Circulation Pump & Eco Wise 3 Cartridge Filter (0.24/0.5/0.75kW, 230V) combines the latest material technology with innovative engineering and design to produce one of the most eco-friendly systems on the market.

Combination unit with 0.24/0.5/0.75kW EcoTouch variable speed self-priming circulation pump, high rate Eco Wise 3 cartridge filter & complete electrical distribution box
The self-priming circulation pump is equipped with a pump casing & is electrically safe with complete electrical separation of swimming pool water & the pump shaft
The pump is manufactured from high-quality plastics that are corrosion-resistant & 100% recyclable
The cartridge filter is manufactured from durable ABS material with impact resistance & is 100% recyclable
Equipped with a self-drainage function ensuring all water is drained from the filter casing & the front union is loosened when cleaning
Perfect for applications in small filtration plants, splash pools, koi ponds & water features.

The BADU®Eco Touch self-priming circulation pump is manufactured with highly innovative motor technology ensuring lower energy consumption, operating costs and C0² emissions, creating better quality water for swimming pools and koi ponds.
Speck Pumps, a globally recognized name in the swimming pool, spa and pump industry, have been producing high-quality products in South Africa since 1978.
Performance curve:

Technical drawing:

Pool size equipment recommendations:

Pool size: 30000 to 55000L; Pump: 0.45kW; Filter: 2 bag
Pool size: 50000 to 85000L; Pump: 0.75kW; Filter: 3 bag
Pool size: 80000 to 150000L; Pump: 1.10kW; Filter: 4 bag

Pump specifications:

Voltage: 230V
Power input (P1): 0.4/0.7/1.05kW
Power output (P2): 0.24/0.5/0.75kW
Current: 2.8/4.8/7.2A
Motor speed: 2000/2430/2830rpm (approximately)
Maximum water temperature: 60°C
Maximum casing pressure: 2.5bar
Inlet/outlet connection (Rp)²: 63/50
Inlet/outlet pipe, PVC: 63/50
Dimensions [h x l x w]: 312.4 x 513 x 196mm
Weight: 9kg
Warranty: 60-month ex-factory warranty from date of purchase

Filter specifications:

Filter area: 4.64m² (50in)
Flow rate: 11.3m³/hr at 350kPa
Average pool size: 62000L
4 Hour turnover rate: 45200L
6 Hour turnover rate: 67800L
8 Hour turnover rate: 90400L
Material: Plastic
Dimensions [h x w]: 708 x 276mm
Weight: 6.2kg
