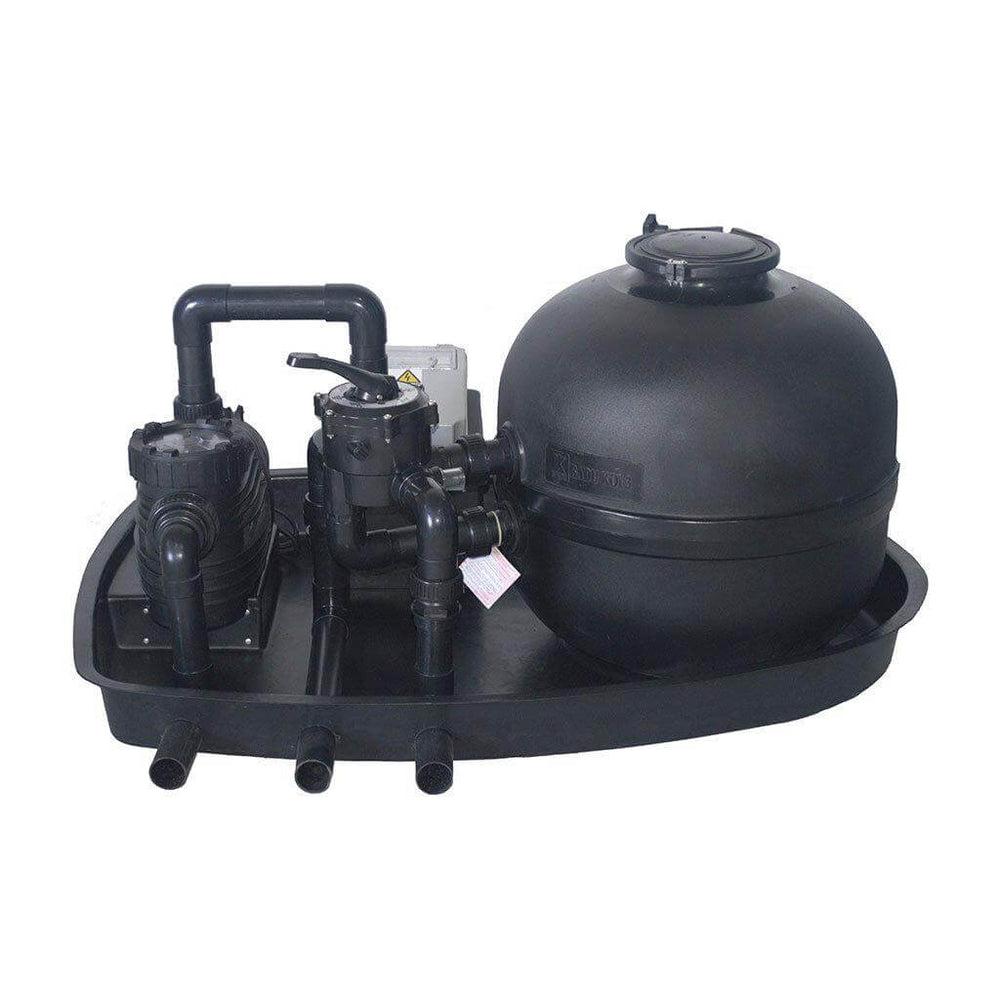

SPECK BADU Combi Koi 3 with BADU EcoTouch Variable Speed Self-Priming Circulation Pump & BADU Koi 3 Sand Filter (High Rate, 0.24/0.5/0.75kW, 230V)

The SPECK BADU Combi Koi 3 with BADU EcoTouch Variable Speed Self-Priming Circulation Pump & BADU Koi 3 Sand Filter (High Rate, 0.24/0.5/0.75kW, 230V) is the eco-friendly solution for the koi enthusiast, proving quality and reliability so you can enjoy your koi pond or water feature with little effort.

Combination unit with a 0.24/0.5/0.75kW EcoTouch variable speed self-priming circulation pump & a high rate Koi 3 sand filter
The self-priming circulation pump is equipped with a pump casing & is electrically safe with complete electrical separation of swimming pool water & the pump shaft
The pump is manufactured from high-quality plastics that are corrosion-resistant & 100% recyclable
The filter is equipped with a quick-release lid for simple manual backwash & maintenance while all components of the filter are non-corrosive, UV resistant & non-toxic
Manufactured as a roto-moulded one-piece polyethene tank, providing strength & leak-free operation while preventing pressure build-up in the tank with an automatic air relief system
Enjoy improved water filtration with twelve angled free flow internal collector arms

*Please note: Media is NOT included. See media for koi ponds here.
The BADU®Eco Touch variable speed self-priming circulation pump is manufactured with highly innovative motor technology ensuring lower energy consumption, operating costs and C0² emissions, creating better quality water for swimming pools and koi ponds.
Speck Pumps, a globally recognized name in the swimming pool, spa and pump industry, have been producing high-quality products in South Africa since 1978.
Performance curve:

How it works:
Unfiltered water is distributed at the top of the sand filter and sinks through the filter bed. The minute pores ensure that the dirt particles are unable to pass through. This filter technology is particularly suitable for pre-filtration of disinfection equipment, irrigation systems, recirculation systems, preparation for micro and ultrafiltration and groundwater cleaning.
Pool size recommendations:

Pool size: 30000 to 55000L; Pump: 0.45kW; Filter: 2 bag
Pool size: 50000 to 85000L; Pump: 0.75kW; Filter: 3 bag
Pool size: 80000 to 150000L; Pump: 1.10kW; Filter: 4 bag

Pump specifications:

Voltage: 230V
Power input (P1): 0.4/0.7/1.05kW
Power output (P2): 0.24/0.5/0.75kW
Current: 2.8/4.8/7.2A
Motor speed: 2000/2430/2830rpm (approximately)
Maximum water temperature: 60°C
Maximum casing pressure: 2.5bar
Inlet/outlet connection (Rp)²: 63/50
Inlet/outlet pipe, PVC: 63/50
Dimensions [h x l x w]: 312.4 x 513 x 196mm
Weight: 9kg
Warranty: 60-month ex-factory warranty from date of purchase

Filter specifications:

Filter size: 0.27m² (22in)
Filter sand: 120kg (not included)
Filter weight: 16.52kg (excluding sand)
Average pool size: 75000L
Flow rate at 80kPa: 12.5m³/h
4 Hour turnover rate: 50000L
6 Hour turnover rate: 75000L
8 Hour turnover rate: 100000L
Dimensions [h x l x w]: 630 x 920 x 580mm
Warranty: 18 month ex-factory warranty on the tank, multiport valve, lid clamp ring & internal parts

Housing specifications:

Dimensions [h x l x w]: 590 x 1200 x 830mm
Base depth: 110mm
