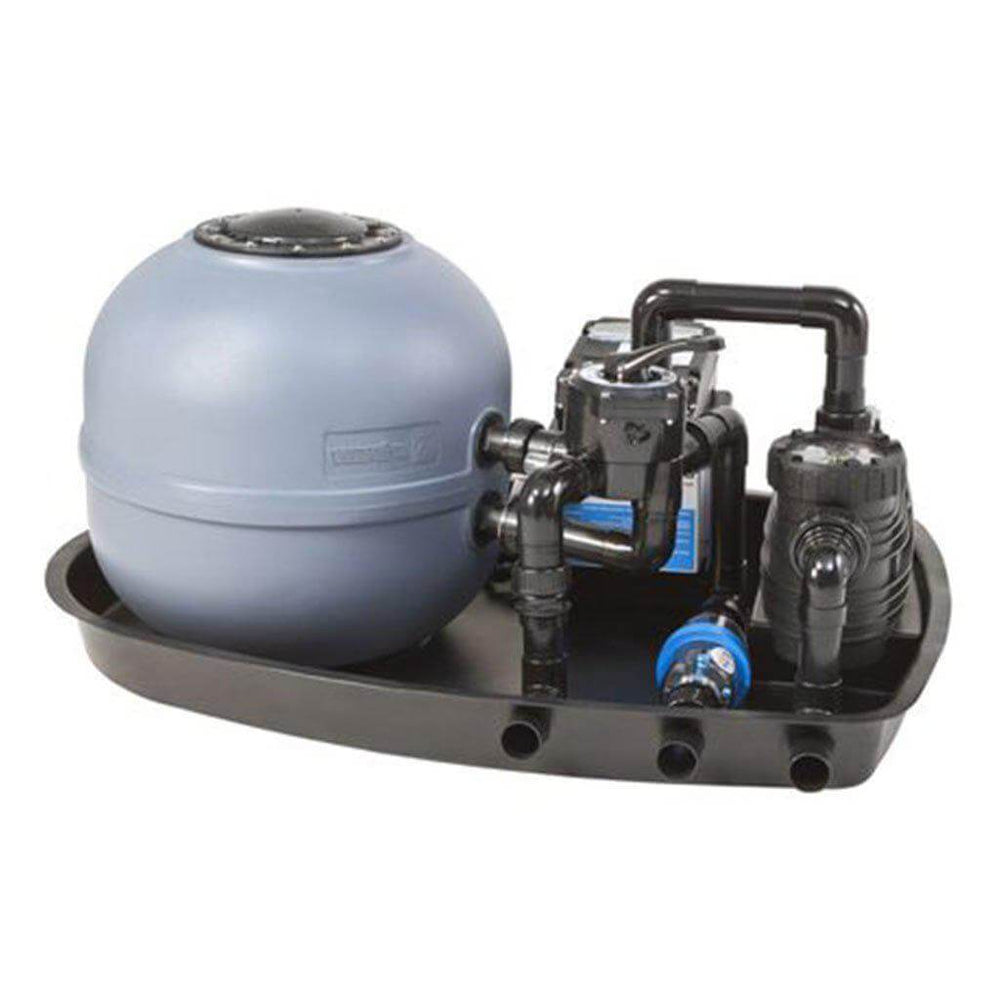

SPECK BADU Combi 3 with BADU Porpoise 16 Self-Priming Circulation Pump & Aquaswim 3 Sand Filter (75000L Pool, 230V, 0.75kW)

The SPECK BADU Combi 3 is a high-performance, pre-assembled filtration package combining a 0.75 kW BADU Porpoise 16 self-priming pump with the Aquaswim 3 sand filter. Tailored for medium-to-large residential pools up to 75,000 litres, this all-in-one system ensures efficient water turnover, secure operation via its integrated distribution board housing, and robust filtration—all in a compact, plug-and-play unit.

• Key Features

• BADU Porpoise 16 pump: 0.75 kW, self-priming, 230 V
• Aquaswim 3 sand filter: 24″ tank, 0.27 m² surface area, 120 kg sand capacity
• Corrosion-free polyethylene tank with ABS internals and automatic air relief
• Side-mounted multiport valve for control and easy operation
• Fully factory-assembled in a robust three-piece housing with integrated DB box
• Pre-wired and tested for rapid installation and reliable performance
• Warranty: 24 months on pump, filter, and internals; housing DB warranty as standard

✓ Benefits

✓ A complete plug-and-play pump + filter solution—minimises installation time
✓ Engineered for effective water clarity in pools up to 75,000 L
✓ Durable build quality with minimal upkeep required
✓ Compact design for streamlined plant room or outdoor placement
✓ Professionally tested and optimised for reliable operation

Technical Specifications

Pump (BADU Porpoise 16):

• Voltage: 230 V

• Power Output: 0.75 kW (approx. 4.8 A)

• Motor Speed: ~2,840 rpm

• Max Water Temperature: 60 °C; Max Pressure: 2.5 bar

• Inlet/Outlet: 50/40 mm connections

• Weight: Approx. 10 kg

• Warranty: 36 months

Filter (Aquaswim 3):

• Filter Area: 0.27 m²

• Sand Capacity: 120 kg (3 × 40 kg bags)

• Flow Rate: 12.5 m³/h at 80 kPa

• Weight (empty): ~14.74 kg

• Pool Size: Up to 75,000 L

• Turnover Capacity:

  • 4-hour: 50,000 L

  • 6-hour: 75,000 L

  • 8-hour: 100,000 L

Housing / Assembly:

• Approximate Dimensions: Height 610 mm × Length 920 mm × Width 580 mm

• Integrated DB distribution box for power connectivity

• Total pre-assembled weight: ~28–30 kg

What You Get

1 × Fully assembled SPECK BADU Combi 3 unit, including:

• BADU Porpoise 16 pump

• Aquaswim 3 filter with valve
