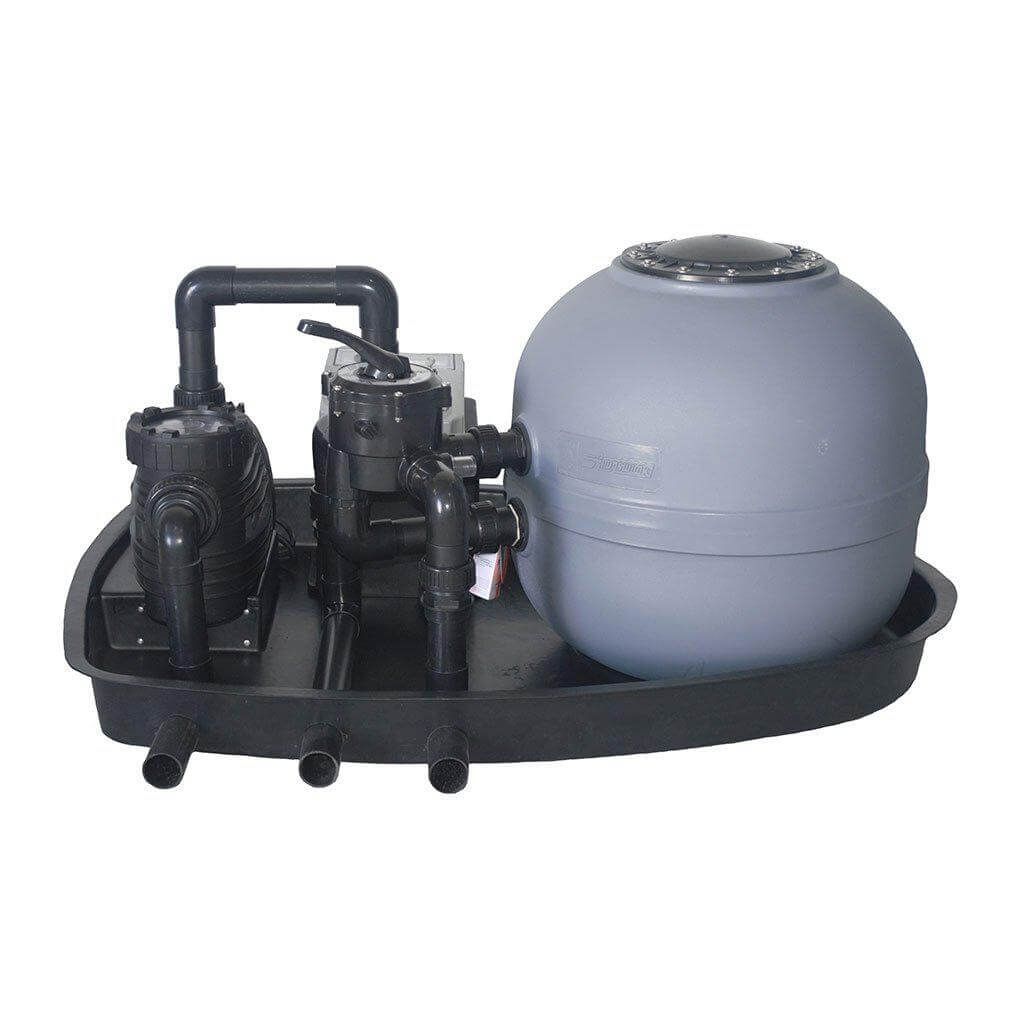

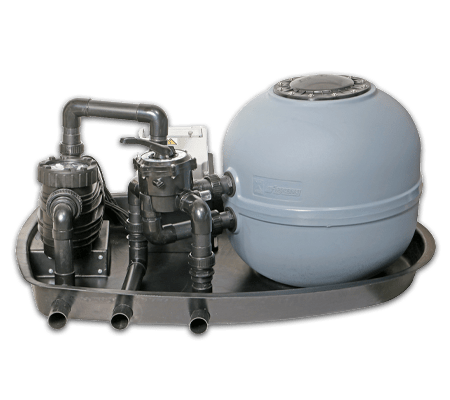

SPECK BADU Combi 3 with BADU EcoTouch Variable Speed Self-Priming Circulation Pump & Aquaswim 3 Sand Filter, (230V, 0.24/0.5/0.75kW)

The SPECK BADU Combi 3 with BADU EcoTouch Variable Speed Self-Priming Circulation Pump & Aquaswim 3 Sand Filter, (230V, 0.24/0.5/0.75kW) combines the latest material technology with innovative engineering and design to produce one of the most eco-friendly systems on the market.

Combi system including a 0.24/0.5/0.75kW EcoTouch variable speed self-priming pump & Aquaswim 3 sand filter with 3 bags of medium
The sand filter is a one-piece moulded polyethylene tank with an automatic internal air relief system & non-corrosive high flow ABS internal components
Filters solid particles from the water like algae & organic material
The self-priming circulation pump is equipped with a pump casing & is electrically safe with complete electrical separation of swimming pool water & the pump shaft
The pump is manufactured from high-quality plastics that are corrosion-resistant & 100% recyclable

*Please note: Media is NOT included. See media for koi ponds here.
The BADU®Eco Touch self-priming circulation pump is manufactured with highly innovative motor technology ensuring lower energy consumption, operating costs and C0² emissions, creating better quality water for swimming pools and koi ponds.
Speck Pumps, a globally recognized name in the swimming pool, spa and pump industry, have been producing high-quality products in South Africa since 1978.
Performance curve:

Pump technical drawing:

Filter technical drawing:

Pool size equipment recommendations:

Pool size: 30000 to 55000L; Pump: 0.45kW; Filter: 2 bag
Pool size: 50000 to 85000L; Pump: 0.75kW; Filter: 3 bag
Pool size: 80000 to 150000L; Pump: 1.10kW; Filter: 4 bag

Pump specifications:

Voltage: 230V
Power input (P1): 0.4/0.7/1.05kW
Power output (P2): 0.24/0.5/0.75kW
Current: 2.8/4.8/7.2A
Motor speed: 2000/2430/2830rpm (approximately)
Maximum water temperature: 60°C
Maximum casing pressure: 2.5bar
Inlet/outlet connection (Rp)²: 63/50
Inlet/outlet pipe, PVC: 63/50
Dimensions [h x l x w]: 312.4 x 513 x 196mm
Warranty: 60-month ex-factory warranty from date of purchase

Filter specifications:

Filter size: 0.27m² (24in)
Filter sand: 120kg (not included)
Weight excl. sand: 14.74Kg
Average pool size: 75000L
Flow rate at 80kPa: 12.5m³/h
4 Hour turnover rate: 50000L
6 Hour turnover rate: 75000L
8 Hour turnover rate: 100000L
Pool size recommendations: 50000 - 85000L with a 0.75kW pump
Dimensions [h x l x w]: 610 x 920 x 580mm

Housing specifications:

Dimensions [h x l x w]: 590 x 1200 x 830mm
Base depth: 110mm
