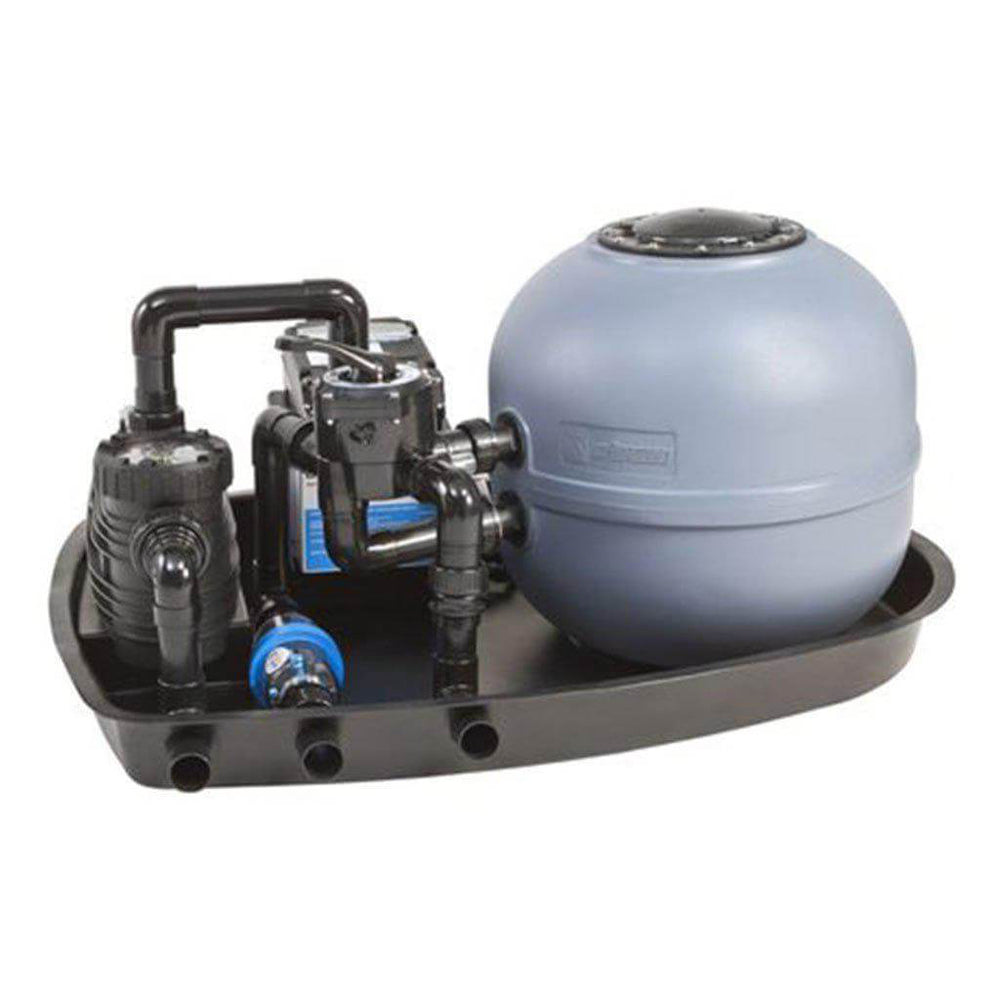

SPECK BADU Combi 2 With BADU Porpoise 10 Self-Priming Circulation Pump & Aquaswim 2 Sand Filter (57000L Pool, 230V, 0.45kW)

The SPECK BADU Combi 2 With BADU Porpoise 10 Self-Priming Circulation Pump & Aquaswim 2 Sand Filter (57000L Pool, 230V, 0.45kW) combines the latest material technology with innovative engineering and design to produce one of the most productive systems on the market.

Combi system including a 0.45kW Porpoise 10 self-priming pump & Aquaswim 2 sand filter with 2 bags of medium
The sand filter is a one-piece moulded polyethylene tank with an automatic internal air relief system & non-corrosive high flow ABS internal components
Filters solid particles from the water like algae & organic material
The self-priming circulation pump is equipped with a pump casing & is electrically safe with complete electrical separation of swimming pool water & the pump shaft
The pump is designed for ultimate efficiency & is easy-to-use with simple maintenance

Speck Pumps, a globally recognized name in the swimming pool, spa and pump industry, have been producing high-quality products in South Africa since 1978.
Performance curve:

Technical image:

Pool size equipment recommendations:

Pool size: 30000 to 55000L; Pump: 0.45kW; Filter: 2 bag
Pool size: 50000 to 85000L; Pump: 0.75kW; Filter: 3 bag
Pool size: 80000 to 150000L; Pump: 1.10kW; Filter: 4 bag

Pump specifications:

Voltage: 230V
Power input (P1): 0.67kW
Power output (P2): 0.45kW
Current: 3.1A
Motor speed: 2840rpm (approximately)
Maximum water temperature: 60°C
Maximum casing pressure: 2.5bar
Inlet/outlet connection (Rp)²: 50/40
Inlet/outlet pipe, PVC: 50/50
Dimensions [h x l x w]: 300 x 513 x 196mm
Weight: 8.9kg
Warranty: 36-month ex-factory warranty from date of purchase

Filter specifications:

Filter size: 0.21m² (20in)
Filter sand: 80kg (not included)
Weight excl. sand: 13.5Kg
Average pool size: 57000L
Flow rate at 80kPa: 9.5m³/h
4 Hour turnover rate: 38000L
6 Hour turnover rate: 57000L
8 Hour turnover rate: 76000L
Pool size recommendations: 30000 - 55000L with a 0.45kW pump
Dimensions [h x l x w]: 590 x 860 x 520mm

Housing specifications:

Dimensions [h x l x w]: 590 x 1200 x 830mm
Base depth: 110mm
