LEO 1.5kW VSD Vertical Multistage Centrifugal Pump – EVPm6H-5 (230V Single Phase)

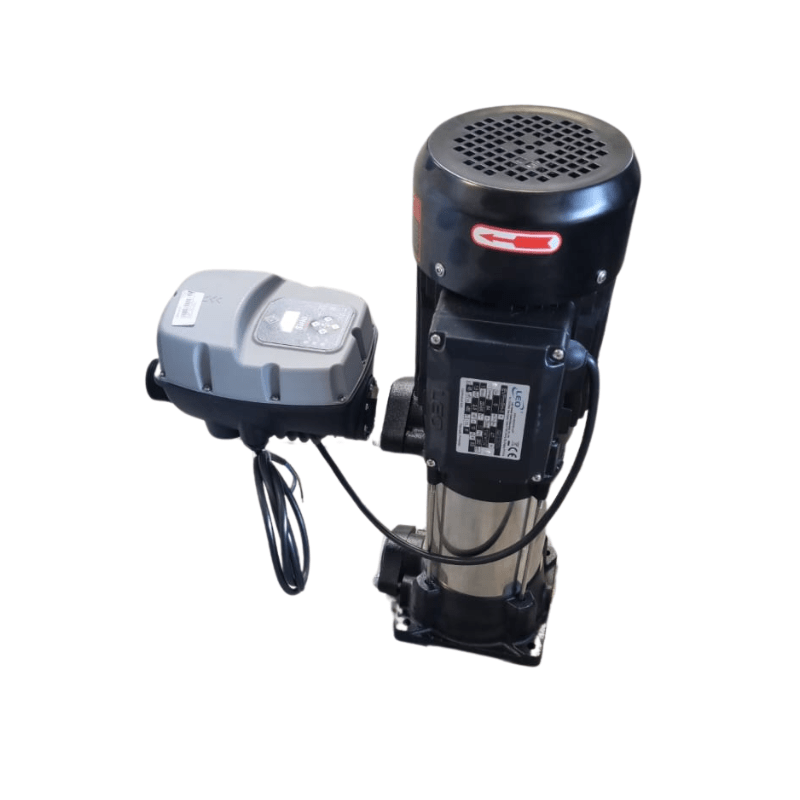

The LEO EVPm6H-5 Vertical Multistage Centrifugal Pump is a high-performance 1.5kW pump featuring an advanced separately attached Variable Speed Drive (VSD) for precise control, enhanced efficiency, and easy maintenance. The separate VSD unit allows for independent replacement of the pump, motor, or VSD, reducing downtime and long-term costs.

Designed for residential, commercial, and industrial water supply applications, the EVPm6H-5 ensures consistent water pressure, optimised energy consumption, and reliable performance, making it ideal for pressure boosting, HVAC systems, irrigation, and water transfer.

Advanced Variable Speed Drive (VSD) Features:

✔ Wi-Fi Capability – Enables remote monitoring and control
✔ Inverter-Based Pump Control – Adjusts motor speed to match system demand
✔ Constant Pressure Regulation – Automatically modulates pump speed for stable pressure
✔ Energy-Saving Design – Reduced power consumption through optimised motor operation
✔ Gradual Start & Stop – Minimises water hammer and eliminates sudden pressure surges
✔ Dry Running Protection – Shuts off in case of water shortage to prevent damage
✔ Automatic Reset & Error Recovery – Autonomous system restoration after errors
✔ Leakage Monitoring – Protects pump by detecting repeated restarts due to leaks
✔ Digital Pressure Display – Real-time pressure monitoring
✔ Motor Overcurrent Control – Prevents motor damage from excessive loads
✔ LED Status Indicators & Error Alerts – Provides clear diagnostics for system operation
✔ Master/Slave Configuration – Allows synchronised operation in twin booster systems
✔ Double Set Point with Remote Control – Enables adaptable pressure settings
✔ Remote Start & Stop Function – Enhances operational flexibility
✔ Software-Controlled Rotation Reversal – Eliminates the need for rewiring adjustments

Key Pump Features:

✔ Multistage Design – High-pressure output for demanding applications
✔ 230V Single-Phase Power Supply – Suitable for various installations
✔ Water Inlet & Outlet Rotation – Flexible assembly based on installation needs
✔ Durable Construction – Anti-rust treated cast iron inlet and outlet, with high-strength plastic flow components
✔ Advanced Hydraulic Model – Ensures stable operation and high efficiency
✔ Reliable Stainless Steel Welded Shaft – Enhancing durability and longevity
✔ Easy Installation & Maintenance – User-friendly design for minimal downtime

Working Conditions:

• Liquid Temperature: +5°C to 60°C
• Maximum Ambient Temperature: +40°C
• Maximum Operating Pressure: 15 bar
• Altitude: Up to 1,000m

The LEO EVPm6H-5 Vertical Multistage Centrifugal Pump is a premium solution for energy-efficient, high-performance water pressure management, delivering intelligent control, cost savings, and long-term reliability.
