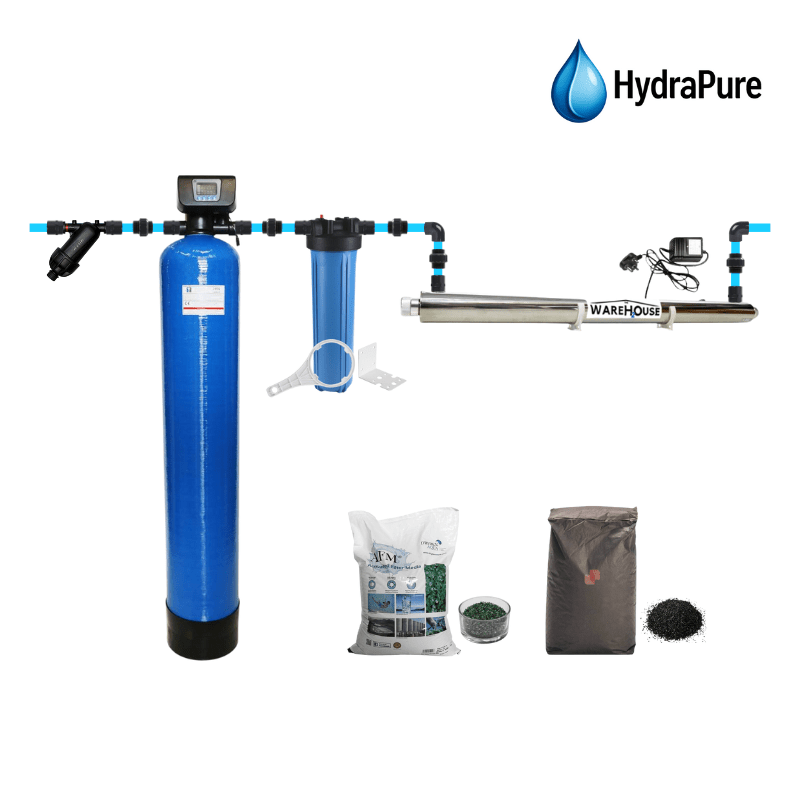

HydraPure 50 L Whole House Filtration System – Automatic Backwash (Dual Medium GAC + AFM)

The HydraPure 50 L Whole House Filtration System delivers a cutting-edge, multi-stage water purification solution ideal for borehole, rainwater, wellpoint, or municipal sources. We've enhanced its capabilities by including a dual-media filtration stage—combining 25 kg Grade 2 Activated Filter Media (AFM®) with 10 kg of premium GAC, maximising contaminant removal while maintaining optimal backwash performance.

This multi-stage system now includes:

• A 1″ 130 μm Disc Filter as the first stage to capture large debris,

• A dual-media (AFM + GAC) 10×54 inch FRP vessel with RUNXIN automatic backwash head,

• A 20″ Big Blue housing with 1 µm sediment cartridge for polishing,

• A 55 W UV steriliser for effective disinfection,

• And full interconnecting pipework for seamless installation.

Key Features:

• 1″ 130 µm Disc Pre-filter: Shields internal stages from coarse solids, safeguarding filter media lifespan.

• Dual-Media GAC + AFM Vessel: Delivers powerful removal of taste, odour, chlorine, organics, and fine suspended solids, using 25 kg Grade 2 AFM (self-sterilising, high filtration performance) beneath 10 kg GAC for enhanced adsorption and backwash efficiency.

• RUNXIN Automatic Backwash Head: Automates cleaning, minimising manual upkeep and ensuring consistent performance.

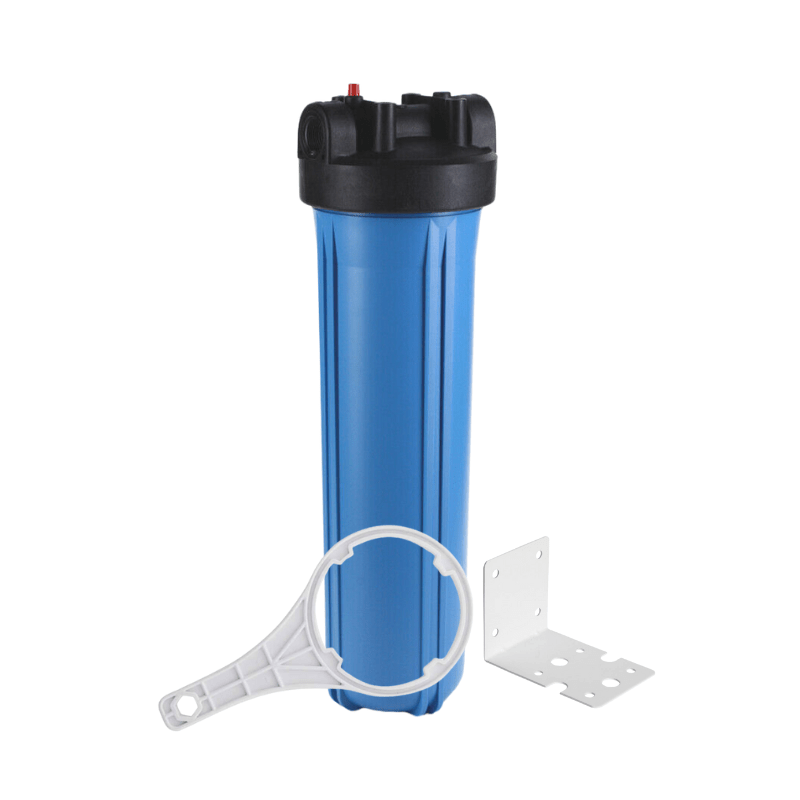

• 20″ Big Blue with 1 µm Sediment Cartridge: Final polishing ensures clarity ahead of UV treatment.

• 55 W UV Steriliser: Ensures chemical-free disinfection and safe, potable water throughout the home.

• Integrated Plumbing Kit: Facilitates quick and professional-grade installation.

Technical Specifications:

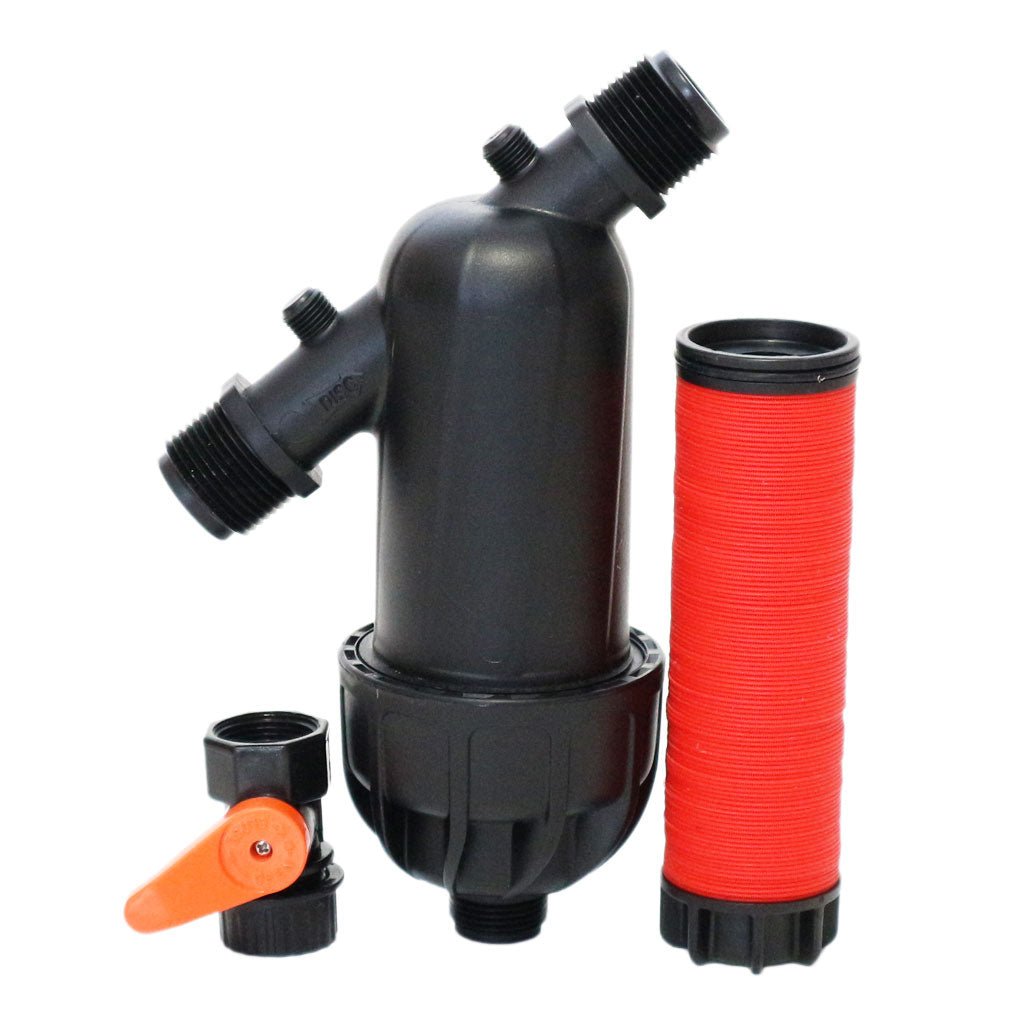

• Pre-Filter: 1″ Disc Filter, 130 µm, durable polypropylene.

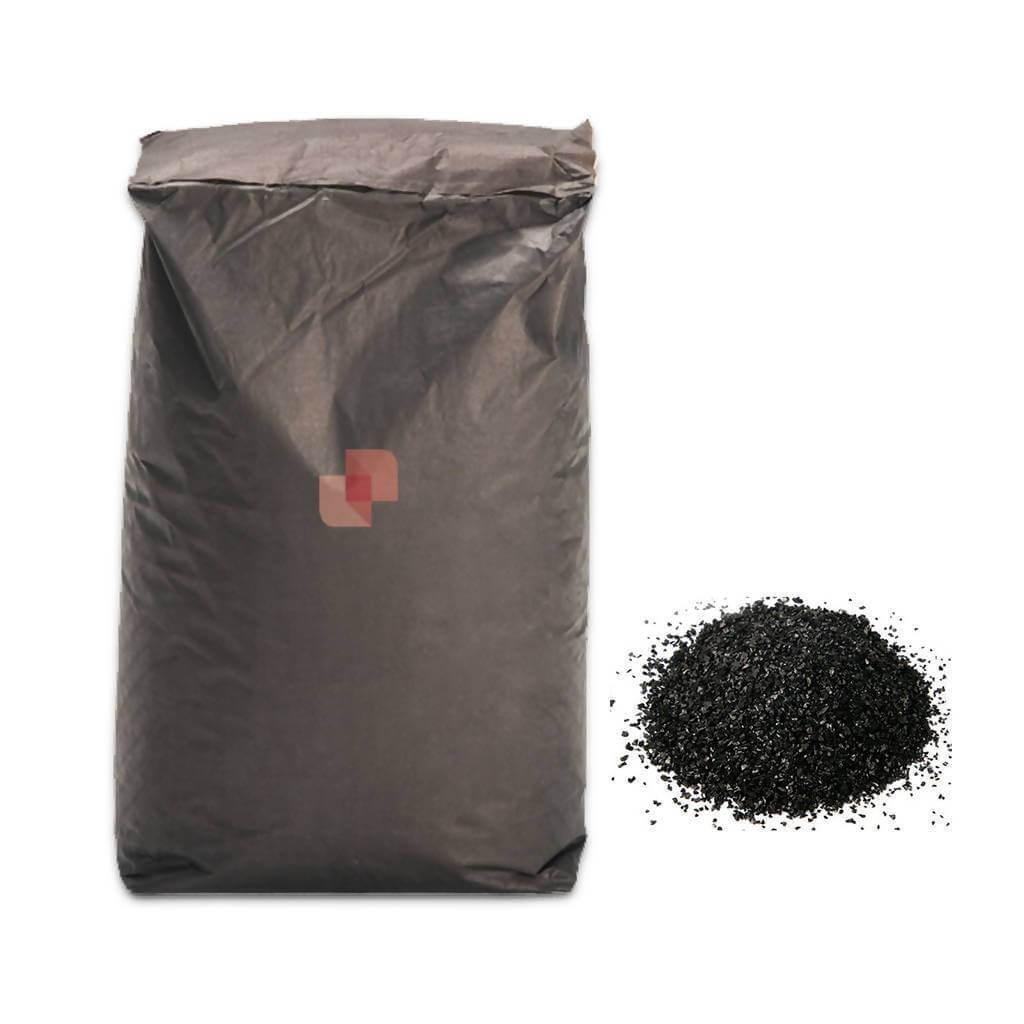

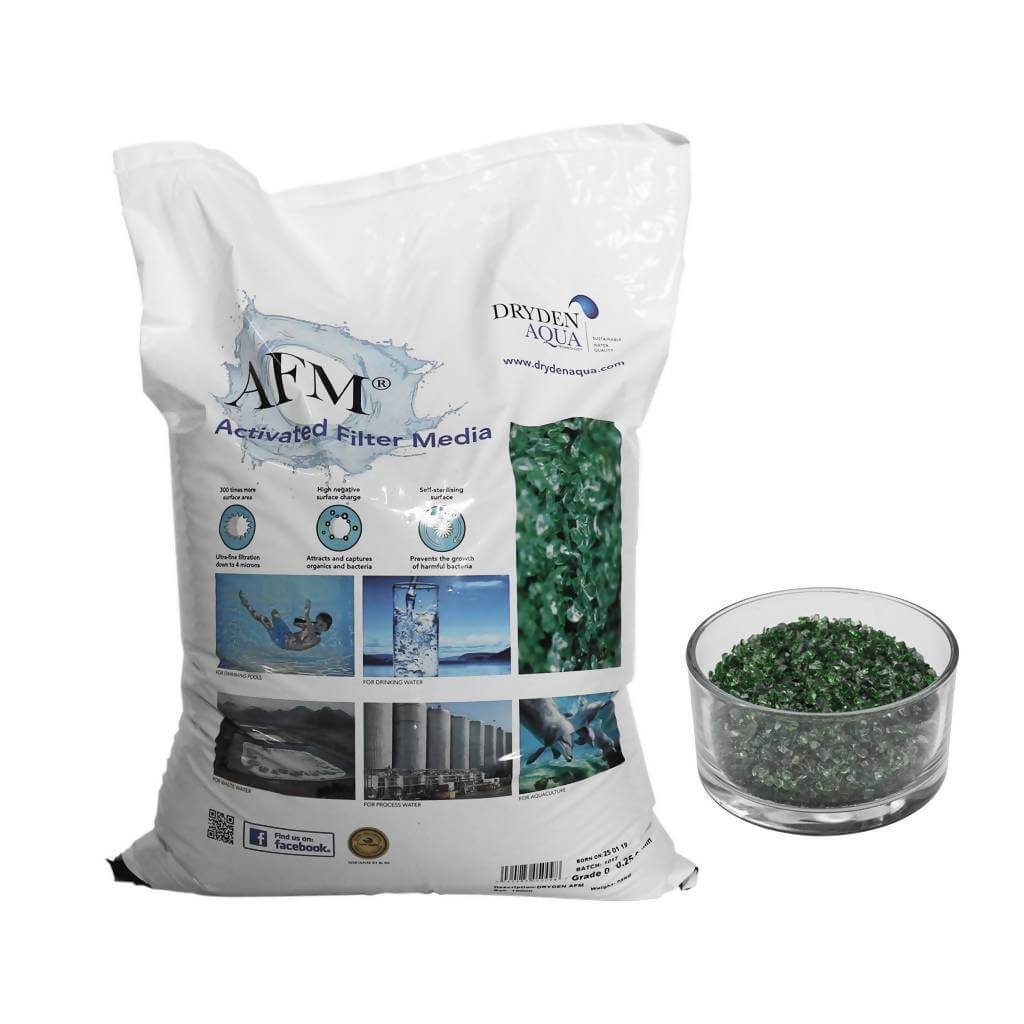

• Filter Vessel: 50 Litre FRP, dual media (25 kg AFM Grade 2 + 10 kg GAC).

• Operating Pressure: Up to 6 bar.

• Flow Rate: Up to 2 500 L/h.

• Port Size: 25 mm BSP.

• UV Output: 55 W

• Dimensions (Est.): 164 cm (H) × 48 cm × 48 cm.

Conditions for Operation:

• Water Sources: Suitable for municipal, borehole, wellpoint, and rainwater.

• Backwash Function: Automatic via RUNXIN head - disc filter is rinsed manually.

• Pre-test water quality to select media options—AFM + GAC provides superior clarity and reduced biofouling compared to conventional carbon + sand combos.

Applications:

• Whole-house water filtration for plumbing, appliances, and taps.

• Rainwater and borehole system protection and conditioning.

• Combines coarse sediment trapping, chemical adsorption, microbial safety, and polishing in one integrated system.

Benefits:

✓ Superior contaminant reduction (chemicals, organics, sediment).
✓ Enhanced filtration performance & media longevity via AFM technology.
✓ Reduced maintenance thanks to automatic backwashing and upstream screening.
✓ Clean, chemical-free sterilisation through UV.
✓ Improved efficiency and reliability over traditional dual-media systems.
✓ Modular design for easy servicing of individual components (disc filter, cartridge, UV lamp).

What You Get:

• 1 × 1″ 130 micron Disc Pre-Filter (manual flush type)

• 1 × 50 L FRP Vessel with 25 kg AFM Grade 2 + 10 kg GAC; fitted with RUNXIN Auto Backwash Head

• 1 × 20″ Big Blue Housing + 1 micron Polypropylene Cartridge

• 1 × 55 W UV Steriliser (lamp, ballast, sleeve included)

• All interconnecting pipework and fittings for modular installation

Why HydraPure is Better:

• Dual media (AFM + GAC) offers superior adsorption and filtration.

• Higher flow rate of 2 500 L/h —20% more capacity.

• Includes UV disinfection and fine polishing cartridges for safer and cleaner output.

• Advanced AFM media provides longer service life, self-sterilizing properties, and improved water clarity compared to sand.

Please note: Images are for reference only; actual product appearance may vary by batch.
