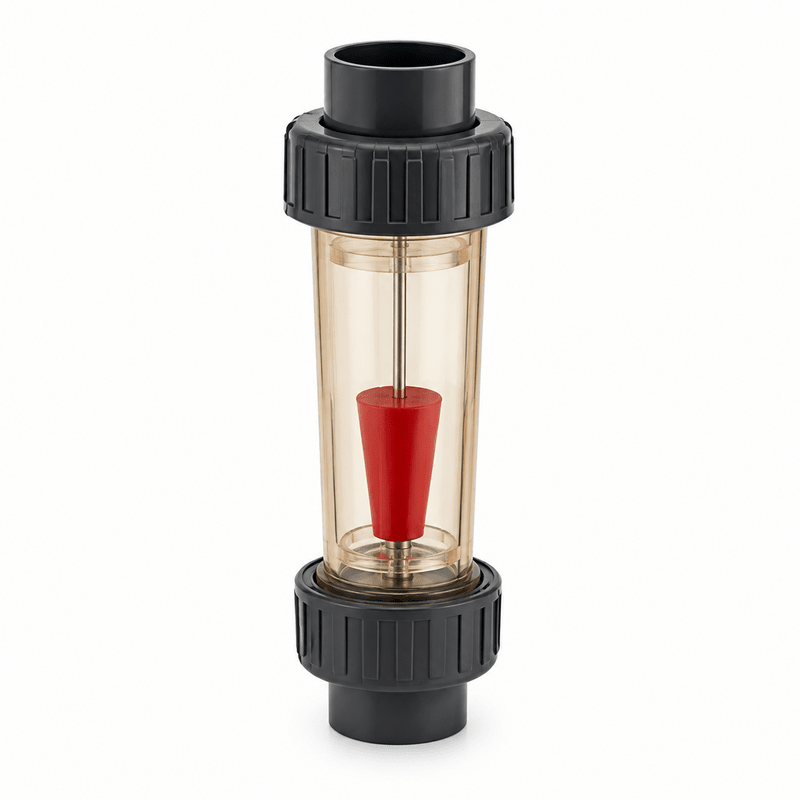

Flowtech Z-5650 PSU Inline Rotameter – 80-800 L/min, 63 mm Solvent-Weld Socket

The Flowtech Z-5650 PSU inline rotameter provides direct visual measurement of clean-water flow from 80-800 L/min. Its polysulphone metering tube and union-ended construction provide a durable, power-free flow indication solution for water-treatment and process systems.

Key features

• Direct visual flow indication without electrical power
• Polysulphone metering tube for robust water-system service
• Polypropylene float with an SS316 stainless-steel guide rod
• Viton O-rings for dependable union sealing
• Removable union-ended construction for inspection and maintenance

Technical specifications

• Model: Z-5650
• Water flow range: 80-800 L/min
• Connection: 63 mm solvent-weld socket union
• Tube material: PSU (polysulphone)
• Float material: Polypropylene
• Guide rod: SS316 stainless steel
• O-rings: Viton
• Accuracy: ±5% of full scale
• Maximum working pressure: 10 bar
• Maximum working temperature: 60 °C
• Installation: Vertical, with upward flow
• Approximate dimensions: 290 mm body length, 375 mm overall socket length and 120 mm body diameter

Typical applications

• Water-treatment and filtration systems
• Irrigation and water-distribution monitoring
• Process-water measurement
• Equipment commissioning and flow balancing

Installation guidance

• Install vertically with the inlet below the outlet.
• Use compatible pipe, primer and solvent cement for the 63 mm socket connections.
• Support adjoining pipework so that no mechanical load is transferred to the meter body.
• Open valves gradually to avoid pressure shock and sudden float impact.
• Confirm material and seal compatibility before use with liquids other than clean water.

Selection guidance

This meter is calibrated for water. Select a range that places normal operation within the middle section of the scale. Fluid density and viscosity can affect readings with other liquids.
