Flowtech Z-5625 PSU Inline Rotameter – 5-50 L/min, ¾″ NPT Female

The Flowtech Z-5625 PSU inline rotameter provides direct visual measurement of clean-water flow from 5-50 L/min. Its...
Availability: In stock
Product type: Flow Meters
R 2,049.00
R 3,801.90
R 2,049.00
Please hurry! Only 3 left in stock
Subtotal: R 2,049.00
10 customers are viewing this product

Shipping & Delivery

Select from shipping options at Check Out - Shipped & Delivered Within 2- 5 Business Days

Special Delivery Requests / Notes

All 4m & 6m pipe lengths will be cut into 2m lengths for courier delivery. If you require full lengths please email us with your order number and request.

Discounts %

Note: Not all discounts can be compunded, one discount can be applied to an order at a time. - Receive 10% off all orders from 15 Dec–8 Jan as our festive thank-you.
Flowtech Z-5625 PSU Inline Rotameter – 5-50 L/min, ¾″ NPT Female - H2O Warehouse

Flowtech Z-5625 PSU Inline Rotameter – 5-50 L/min, ¾″ NPT Female

R 3,801.90 R 2,049.00
Flowtech Z-5625 PSU Inline Rotameter – 5-50 L/min, ¾″ NPT Female - H2O Warehouse

Flowtech Z-5625 PSU Inline Rotameter – 5-50 L/min, ¾″ NPT Female

R 3,801.90 R 2,049.00
Description

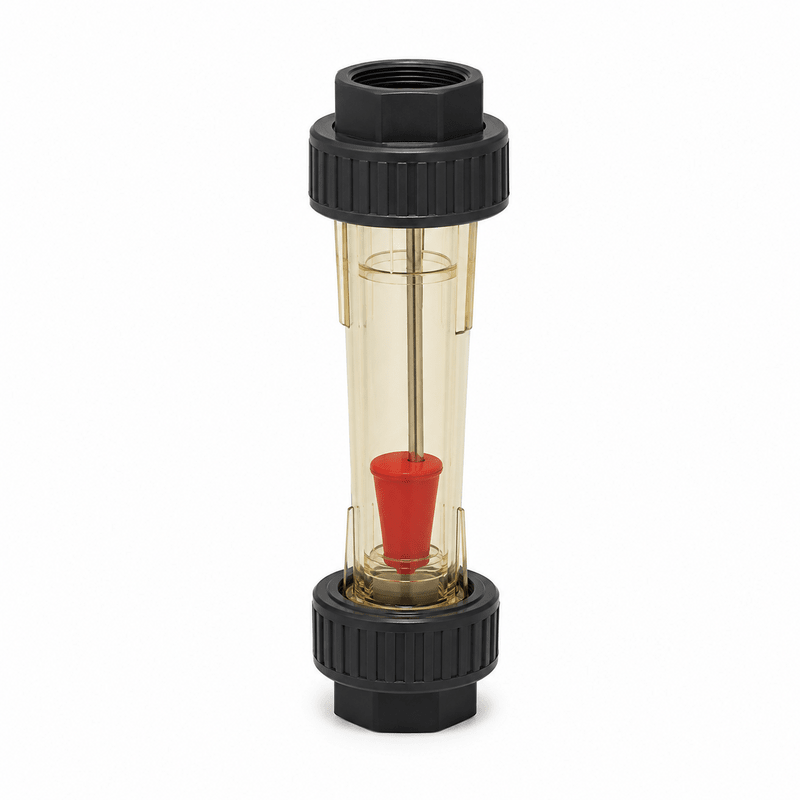

The Flowtech Z-5625 PSU inline rotameter provides direct visual measurement of clean-water flow from 5-50 L/min. Its polysulphone metering tube and union-ended construction provide a durable, power-free flow indication solution for water-treatment and process systems.

Key features

  • Direct visual flow indication without electrical power
  • Polysulphone metering tube for robust water-system service
  • Polypropylene float with an SS316 stainless-steel guide rod
  • Viton O-rings for dependable union sealing
  • Removable union-ended construction for inspection and maintenance

Technical specifications

  • Model: Z-5625
  • Water flow range: 5-50 L/min (1.2-12 GPM)
  • Connection: ¾-inch NPT female thread
  • Tube material: PSU (polysulphone)
  • Float material: Polypropylene
  • Guide rod: SS316 stainless steel
  • O-rings: Viton
  • Accuracy: ±5% of full scale
  • Maximum working pressure: 10 bar
  • Maximum working temperature: 60 °C
  • Installation: Vertical, with upward flow
  • Approximate dimensions: 199 mm body length, 254 mm overall female-thread length and 59 mm body diameter

Typical applications

  • Water-treatment and filtration systems
  • Irrigation and water-distribution monitoring
  • Process-water measurement
  • Equipment commissioning and flow balancing

Installation guidance

  • Install vertically with the inlet below the outlet.
  • Use fittings and sealing methods compatible with the ¾-inch NPT female thread.
  • Support adjoining pipework so that no mechanical load is transferred to the meter body.
  • Open valves gradually to avoid pressure shock and sudden float impact.
  • Confirm material and seal compatibility before use with liquids other than clean water.

Selection guidance

This meter is calibrated for water. Select a range that places normal operation within the middle section of the scale. Fluid density and viscosity can affect readings with other liquids.
