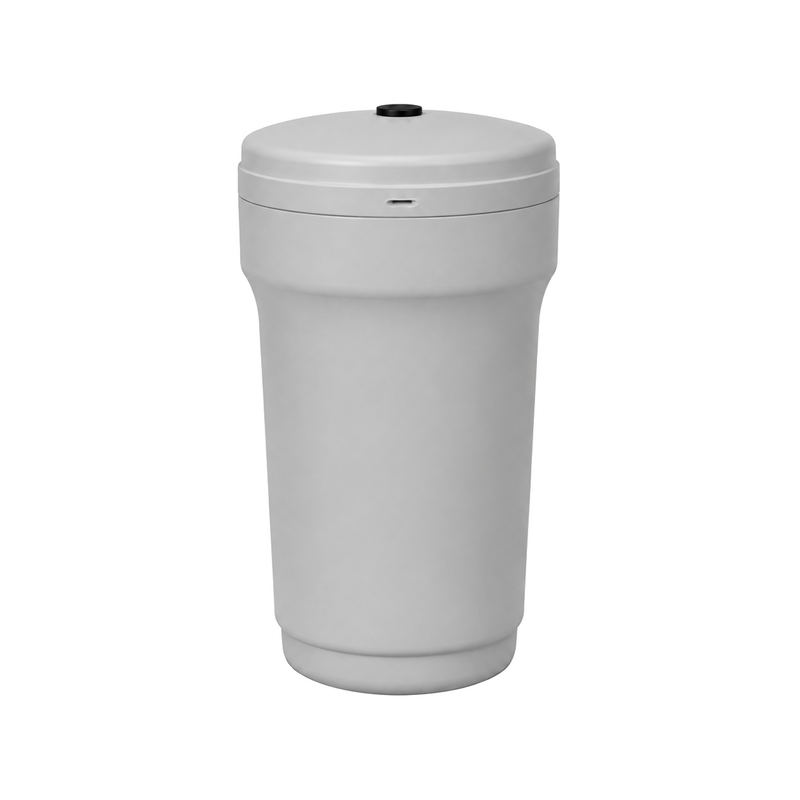

100 L Round Brine Tank Complete with Well, Grid & Brine Valve – Grey

A complete 100 L round brine tank assembly for residential and light-commercial water softeners. The durable grey tank stores salt and brine for resin regeneration and is supplied with the essential internal components for a tidy, serviceable installation.

Key features

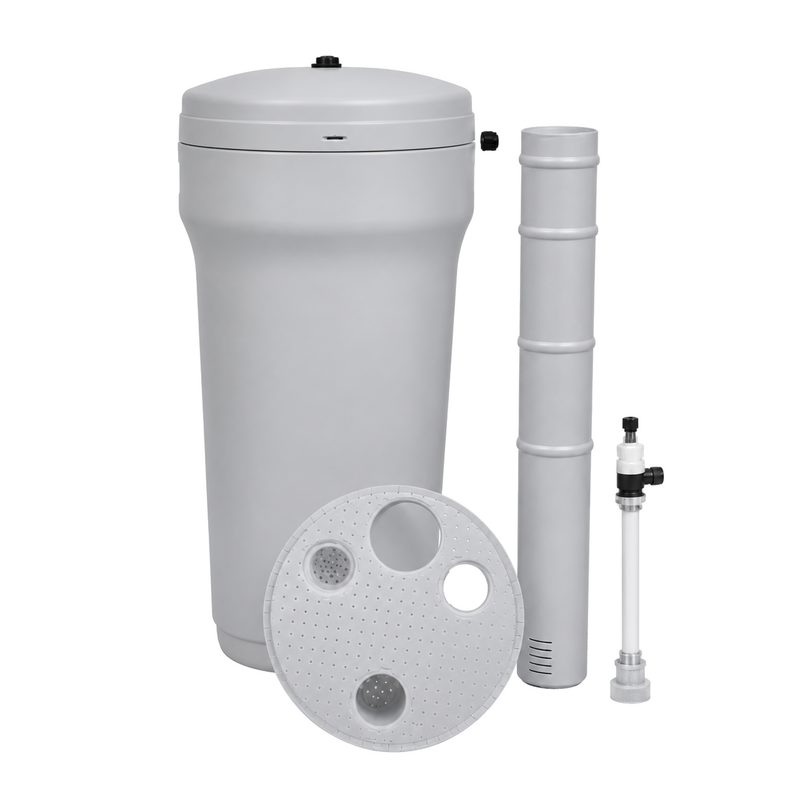

• Complete assembly with tank, lid, brine well, salt grid and safety brine valve
• Seamless blow-moulded HDPE construction for durability and crack resistance
• Round, space-efficient design with a secure removable lid
• Raised salt grid keeps the salt bed above the brine reservoir, helping reduce salt mushing and supporting consistent brine draw
• Brine well protects the valve assembly and provides convenient servicing access
• Safety brine valve helps control the refill level and reduce the risk of overfilling

Technical specifications

• Nominal capacity: 100 L
• Dimensions: Ø460 × 875 mm (diameter × height)
• Brine valve assembly: 35 inch
• Material: High-density polyethylene (HDPE)
• Colour: Grey
• Shape: Round
• Application: Water-softener salt and brine storage

What's included

• 100 L round brine tank
• Removable lid
• Brine well
• Salt grid
• Safety brine valve assembly

Installation and care

Install upright on a firm, level surface with enough clearance to remove the lid and service the valve. Use clean water-softener salt and periodically inspect the brine valve, grid and well for salt build-up or debris. Confirm compatibility with the softener control valve and brine-line connection before installation.

Dimensions are nominal and may vary slightly due to the moulding process.
