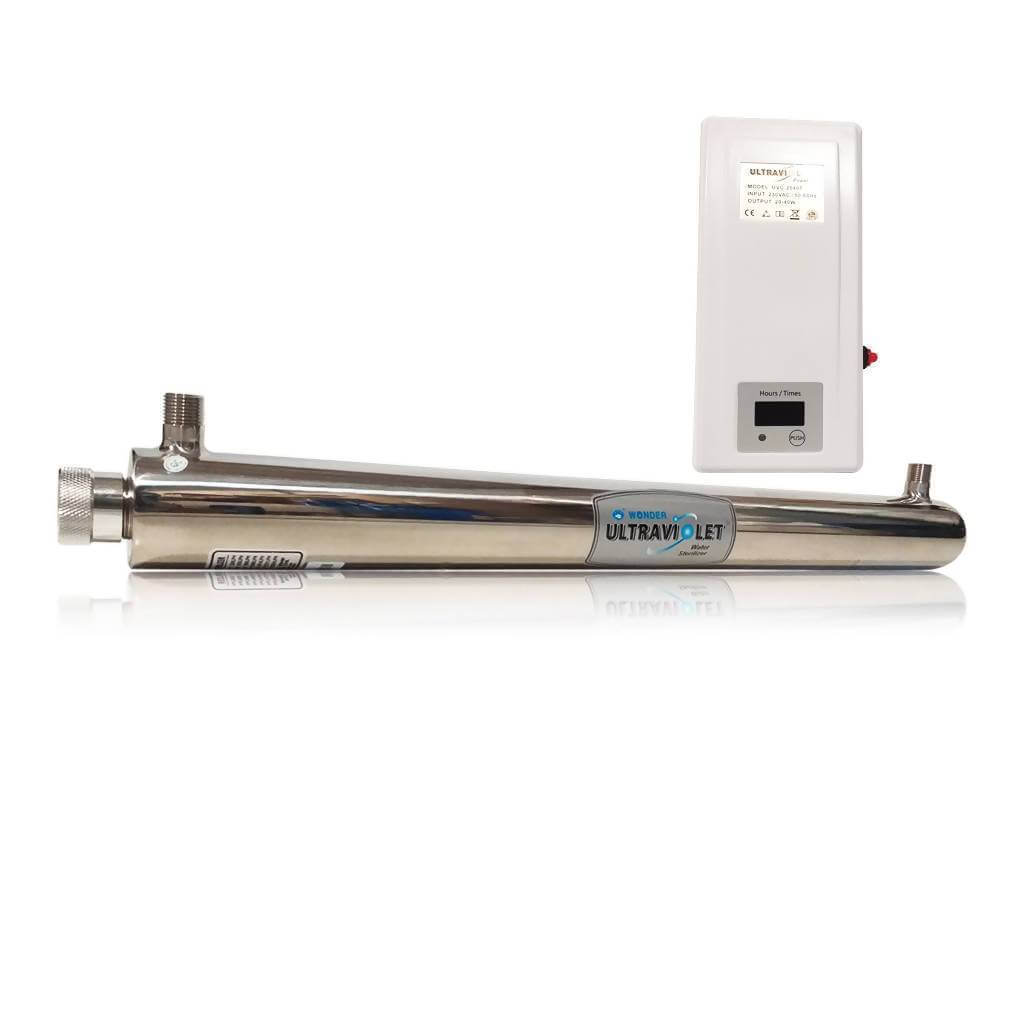

40W WONDER® HC-800 UV Steriliser | 2.72m³/h | ¾” BSP | NSF Certified

Ensure safe, bacteria-free water for residential or commercial use with the WONDER® 40W Ultraviolet Germicidal UV Steriliser. Designed to deliver powerful disinfection at high flow rates, this system is suitable for whole-house filtration, rainwater treatment, agricultural operations, and other medium-to-high volume applications. The system is fitted with an NSF-certified stainless steel chamber and a European-manufactured UV-C lamp, ensuring superior build quality and performance.

Overview: The Wonderlight HC-720 is a high-output industrial-grade UV steriliser suitable for small to medium industrial, commercial and residential water treatment applications. With a robust stainless steel body and high-efficiency UV-C output, it ensures disinfection without the use of chemicals.

Capable of handling up to 2721 litres per hour, this 40W steriliser is ideal for applications where microbial control is critical, without the use of chemicals.

Key Features:

• Triple 40W High-Output UV-C Lamp – Rapid disinfection at higher flow rates

• NSF Certified Housing – Constructed from high-grade SUS304 stainless steel

• ¾-Inch Male BSP Ports – Standardised connections for easy installation

• Chemical-Free Disinfection – No chlorine, no harmful residues

• Built-In LED Timer & Alarm – Monitors lamp life and system function

• Quartz Sleeve Enclosure – Protects the lamp and maximises UV efficiency

• European-Made Lamp – Delivers consistent UV output for up to 9000 hours

Technical Specifications:

• Brand: WONDER®

• Model: HC-720

• UV Power Rating: 40W

• Flow Rate: Up to 2721 litres per hour (45 L/min)

• Inlet/Outlet Connections: ¾” Male BSP Threaded

• Housing Material: SUS304 Stainless Steel

• Lamp: T540

• Operating Pressure: Max 6.8 bar (100psi)

• Operating Temperature: 5°C – 45°C

• Lamp Life: 9 000–10 000 hours (~1 year of continuous service)

• Certification: NSF Certified (housing & components)

• Electrical: 230V / 50Hz / Single Phase

• Control Box: Premium design with hour meter LED status lights and audible alarm

• Mounting Brackets: Included

Applications:

• Whole-house domestic water treatment

• Rainwater & borehole water sterilisation

• Commercial buildings & lodges

• Livestock drinking water disinfection

• Agricultural irrigation where bacterial control is required

• Food & beverage rinse and process water sterilisation

Benefits:

• Instant Disinfection – Destroys bacteria, viruses, and protozoa on contact

• Chemical-Free – Preserves the natural taste and composition of water

• NSF-Certified – Quality-assured materials and performance

• Low Maintenance – Replace lamp and clean sleeve annually

• Energy Efficient – Low running cost with consistent output

• Safe and Eco-Friendly – No harmful by-products

What’s in the Box:

• 1 x Stainless Steel UV Chamber

• 1 x 40W UV-C Lamp

• 1 x Quartz Sleeve

• 1 x Control Box with LED Timer & Alarm

• 2 x Mounting Brackets

• Instruction Manual

Important Notes:

• For best results, pre-filter water to remove sediment and turbidity

• Ensure lamp and quartz sleeve are kept clean to maintain effectiveness

• Replace the UV lamp annually for continued disinfection efficiency

• Product images are for reference only and may vary slightly in design

Spares & Replacement Parts:

• 40W Lamp

• Quartz Sleeve


• Control Box Complete
