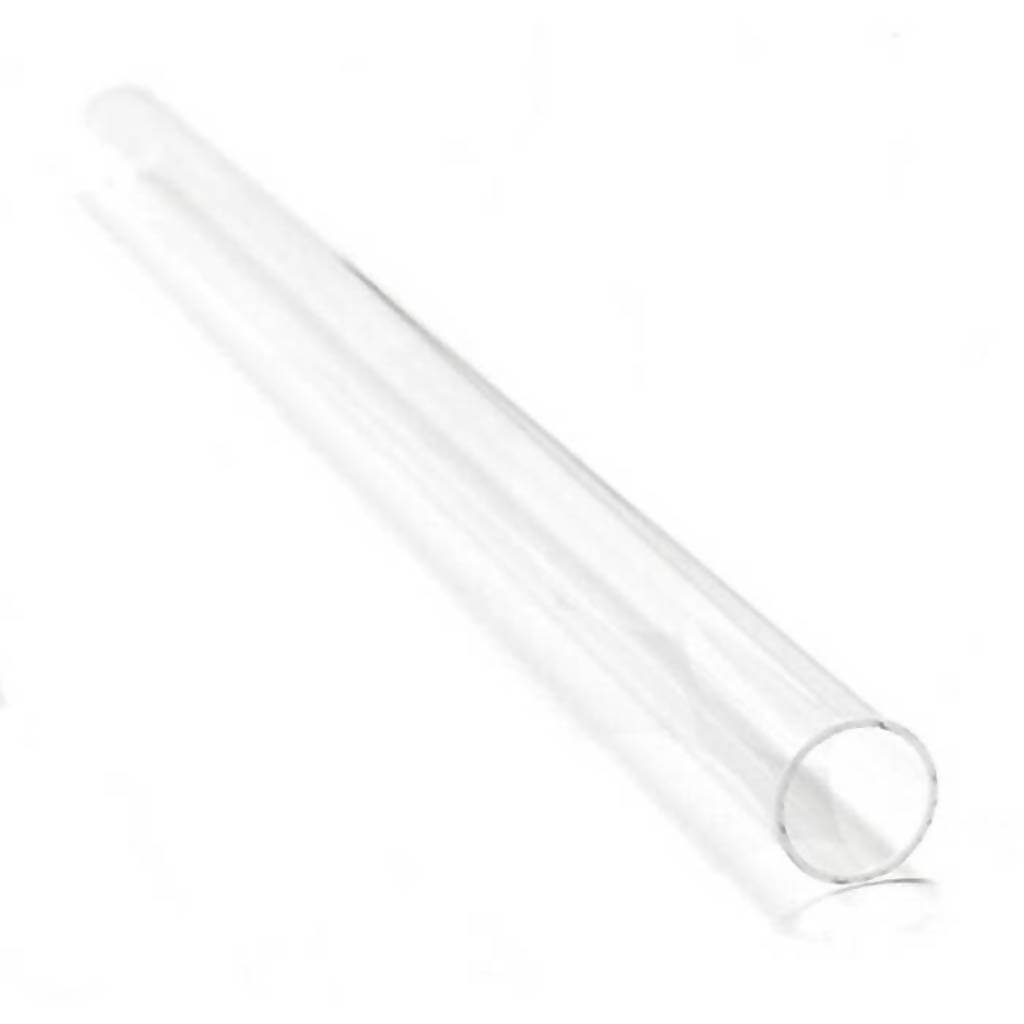

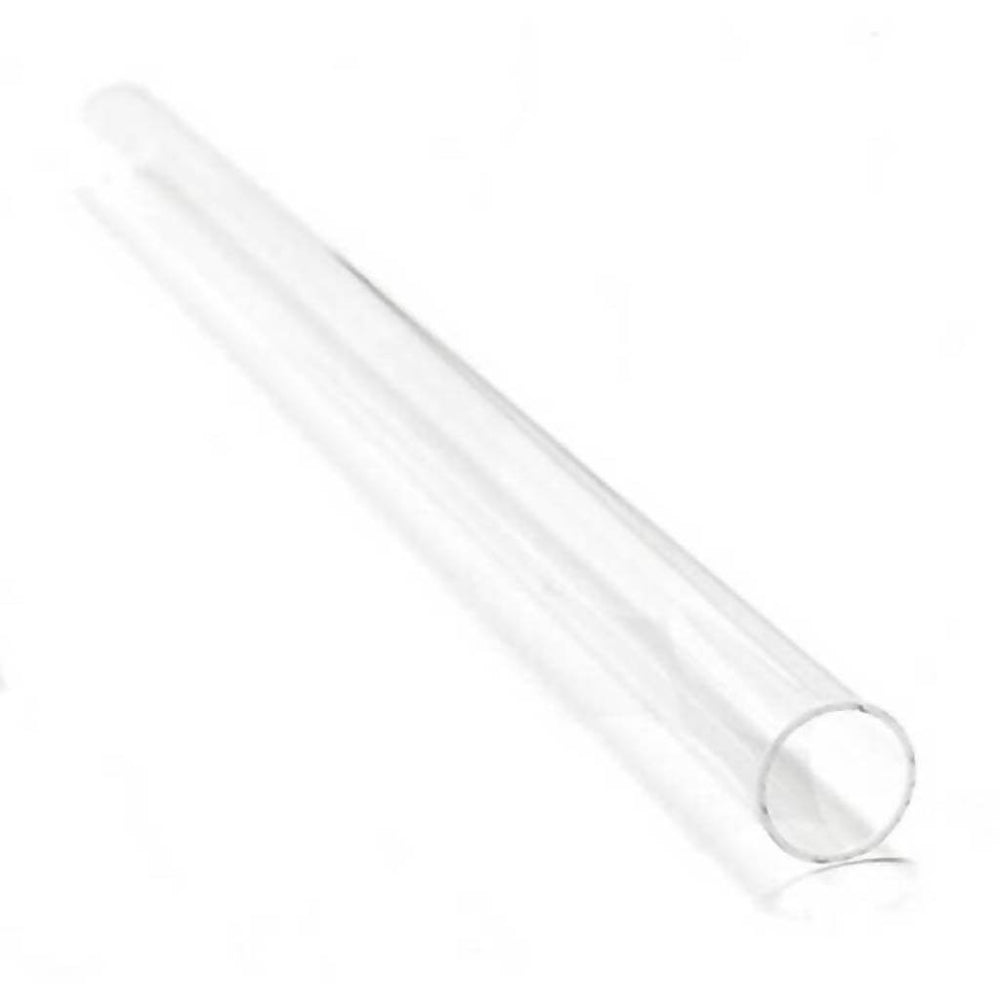

Spare Quartz Sleeve for WONDER® EB-24, EB-45, EB-150 UV Sterilisers | 910mm Double Open End | NSF Certified

Maintain peak disinfection performance with the WONDER® Spare Quartz Sleeve, designed specifically for the EB Series UV systems. This replacement sleeve fits models EB-24 (85W), EB-45 (170W) and EB-150 (285W) and is made from high-purity quartz glass to ensure maximum UV transmission. The sleeve is open at both ends, allowing for efficient cooling and lamp protection inside the steriliser chamber.

NSF Certified and built to the same quality standards as the original part supplied with the system.

Variant Options:

• EB-24 (85W UV System): 1 x Quartz Sleeve Required

• EB-45 (170W UV System – 2 x 85W): 2 x Quartz Sleeves Required

• EB-150 (285W UV System – 3 x 85W): 3 x Quartz Sleeves Required

Key Features:

• High-Purity Quartz Glass – Optimised for maximum UV-C light transmission

• Open Both Ends – Ensures proper air flow and thermal regulation

• Exact Replacement Part – Designed to fit WONDER® EB-Series chambers perfectly

• NSF Certified – Food-grade materials for potable water applications

• Protects UV Lamp – Shields the bulb from water, pressure, and sediment

Technical Specifications:

• Brand Compatibility: WONDER®

• Model Compatibility: EB-24, EB-45, EB-150

• Material: High-clarity quartz

• Length: 910 mm

• Outer Diameter: 24.5 mm

• Ends: Double open

• Certification: NSF Certified

• Lamp Housing Type: Stainless steel chamber (EB Series)

• Packaging: Secure protective sleeve tube

Applications:

• Domestic UV water purification systems

• Commercial or industrial disinfection applications

• Borehole, rainwater and whole-house treatment

• Replacement for WONDER® EB Series UV systems

Important Notes:

• Handle with care – Quartz is fragile and can crack with improper installation

• Clean sleeve every 6–12 months to prevent UV output loss

• Replace if scratched, stained, or cracked

• Use gloves during installation to prevent oil residue on the glass

• Product images are for reference only – actual item may vary slightly in design
