Puricom CE-6P 5-Stage Under-Counter Direct-Flow RO System | 400 GPD | With Pump

The Puricom CE-6P is a five-stage under-counter direct-flow reverse osmosis water filter with a pump, with a nominal 400 GPD capacity.

Drinking water from one kitchen tap: The filter sits in the cupboard under your sink or countertop and supplies a dedicated drinking-water tap mounted on the sink or countertop. The filter stays tucked away while the tap is within reach for filling glasses, bottles and the kettle.

• Product Code: CE-6P.
• Configuration: Five-stage direct-flow RO with pump.
• Nominal Capacity: 400 GPD (approximately 1 514 L/day nominal); actual production depends on feed-water conditions and pressure.

Product Description

This direct-flow system treats water at a dedicated point of use. Correct selection depends on the site's water quality, available pressure and installation requirements. A drain connection is needed for the RO concentrate stream.

Key Features

• Under-counter installation serving a dedicated drinking-water tap.
• Direct-flow configuration with five treatment stages.

Technical Specifications

• Product Code: CE-6P.
• Configuration: Five-stage direct-flow RO with pump.
• Nominal Capacity: 400 GPD (approximately 1 514 L/day nominal); actual production depends on feed-water conditions and pressure.
• Unit Dimensions (CE-6A Manual): 350 mm wide × 250 mm deep × 480 mm high. Allow additional space for plumbing and servicing. These are unit dimensions, not packed carton dimensions.

Applications And Compatibility

This is the 400 GPD configuration. Do not confuse it with the different CE-6 configurations offered in other markets. The listed 400 GPD membrane replacement is CE3012-400; other component codes require a confirmed match.

What's Included

One Puricom CE-6P 400 GPD RO filter assembly with a booster pump, with the following filters and accessories listed in the CE-6A manual:

• PP 5 µm sediment prefilter.
• GAC carbon prefilter.
• RO membrane.
• Post-carbon filter.
• Post-remineralising filter.
• Dedicated drinking-water faucet.
• PE tubing.
• Feed-water ball valve and feed-water connector.
• Filter-housing wrench and RO-housing wrench.
• Water stopper.
• Transformer for the pumped configuration.

Optional: The drain clamp is marked optional in the manual.

Not Included: Installation labour, site plumbing and any additional pretreatment required.

Maintenance And Installation

Inspect and replace filters and the membrane according to the supplied model-specific instructions and water quality. Confirm replacement codes before ordering; do not choose a membrane on capacity alone. Isolate the water and electrical supplies, where fitted, and release pressure before service.

Connect to a suitable cold-water supply. Do not use microbiologically unsafe water or water of unknown quality without adequate disinfection before or after the system. Have the installer confirm operating limits against the supplied unit documentation.

Why Choose This Product?

Select the stated model and pump configuration to suit the installation, with service parts matched to that exact system.

Alternative Configuration

Puricom CE-6 5-Stage Direct-Flow RO System | 400 GPD | Without Pump.

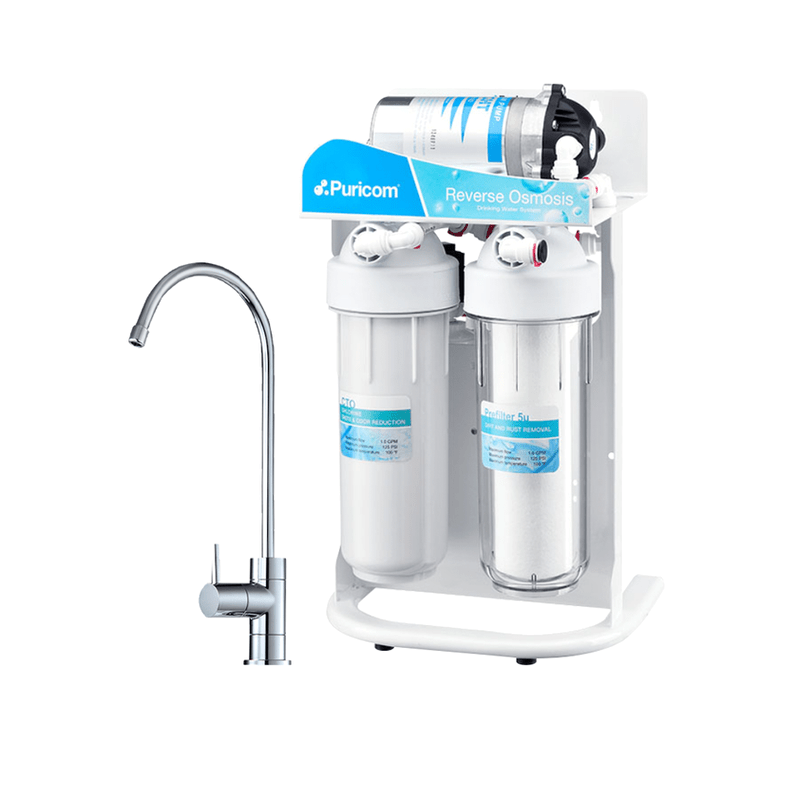

Product image shows the pumped CE-6 configuration. Supplied contents are limited to the selected model and the items listed under What's Included.

CE-6A Manual Reference

The available Puricom CE-6A user manual covers a 400 GPD pumped direct-flow system. Confirm that the supplied CE-6P matches this CE-6A configuration and rating plate before applying these details.

• Manual Model: CE-6A.
• Electrical Supply: 220 V AC, 50 Hz input; 24 V DC output.
• Inlet Pressure: 15–45 psi as specified in the manual.
• Feed-Water Requirements: TDS below 1,000 ppm; total hardness below 250 ppm; temperature 5–45 °C.
• Treatment Stages: 5-micron sediment, GAC carbon, RO membrane, post-carbon and post-remineralising.
• Maintenance Intervals: Sediment and GAC filters every 3–6 months; RO membrane every 1–3 years; post-carbon and remineralising filters every 12 months. Water quality and usage can shorten these intervals.

The kit contents above follow the manual's accessories list. Use the exact model and component codes when ordering replacement parts.

Downloads

Puricom CE-6A 400 GPD User Manual — Pumped Configuration (PDF)

This manual describes the CE-6A pumped configuration. Confirm the supplied CE-6P model and rating plate match before installation or service.
