Puricom CE-6 5-Stage Under-Counter Direct-Flow RO System | 400 GPD | Without Pump

The Puricom CE-6 is a five-stage under-counter direct-flow reverse osmosis water filter without a pump, with a nominal 400 GPD capacity.

Drinking water from one kitchen tap: The filter sits in the cupboard under your sink or countertop and supplies a dedicated drinking-water tap mounted on the sink or countertop. The filter stays tucked away while the tap is within reach for filling glasses, bottles and the kettle.

• Product Code: CE-6.
• Configuration: Five-stage direct-flow RO without pump.
• Nominal Capacity: 400 GPD (approximately 1 514 L/day nominal); actual production depends on feed-water conditions and pressure.

Product Description

This direct-flow system treats water at a dedicated point of use. Correct selection depends on the site's water quality, available pressure and installation requirements. A drain connection is needed for the RO concentrate stream.

Key Features

• Under-counter installation serving a dedicated drinking-water tap.
• Direct-flow configuration with five treatment stages.

Technical Specifications

• Product Code: CE-6.
• Configuration: Five-stage direct-flow RO without pump.
• Nominal Capacity: 400 GPD (approximately 1 514 L/day nominal); actual production depends on feed-water conditions and pressure.
• Unit Dimensions (CE-6A Manual): 350 mm wide × 250 mm deep × 480 mm high. Allow additional space for plumbing and servicing. These are unit dimensions, not packed carton dimensions.

Applications And Compatibility

This is the 400 GPD configuration. Do not confuse it with the different CE-6 configurations offered in other markets. The listed 400 GPD membrane replacement is CE3012-400; other component codes require a confirmed match.

What's Included

One Puricom CE-6 400 GPD RO filter assembly without a booster pump, with the following filters and accessories listed in the CE-6A manual:

• PP 5 µm sediment prefilter.
• GAC carbon prefilter.
• RO membrane.
• Post-carbon filter.
• Post-remineralising filter.
• Dedicated drinking-water faucet.
• PE tubing.
• Feed-water ball valve and feed-water connector.
• Filter-housing wrench and RO-housing wrench.
• Water stopper.

Optional: The drain clamp is marked optional in the manual.

Not Included: Installation labour, site plumbing and any additional pretreatment required.

Maintenance And Installation

Inspect and replace filters and the membrane according to the supplied model-specific instructions and water quality. Confirm replacement codes before ordering; do not choose a membrane on capacity alone. Isolate the water and electrical supplies, where fitted, and release pressure before service.

Connect to a suitable cold-water supply. Do not use microbiologically unsafe water or water of unknown quality without adequate disinfection before or after the system. Have the installer confirm operating limits against the supplied unit documentation.

Why Choose This Product?

Select the stated model and pump configuration to suit the installation, with service parts matched to that exact system.

Alternative Configuration

Puricom CE-6P 5-Stage Direct-Flow RO System | 400 GPD | With Pump.

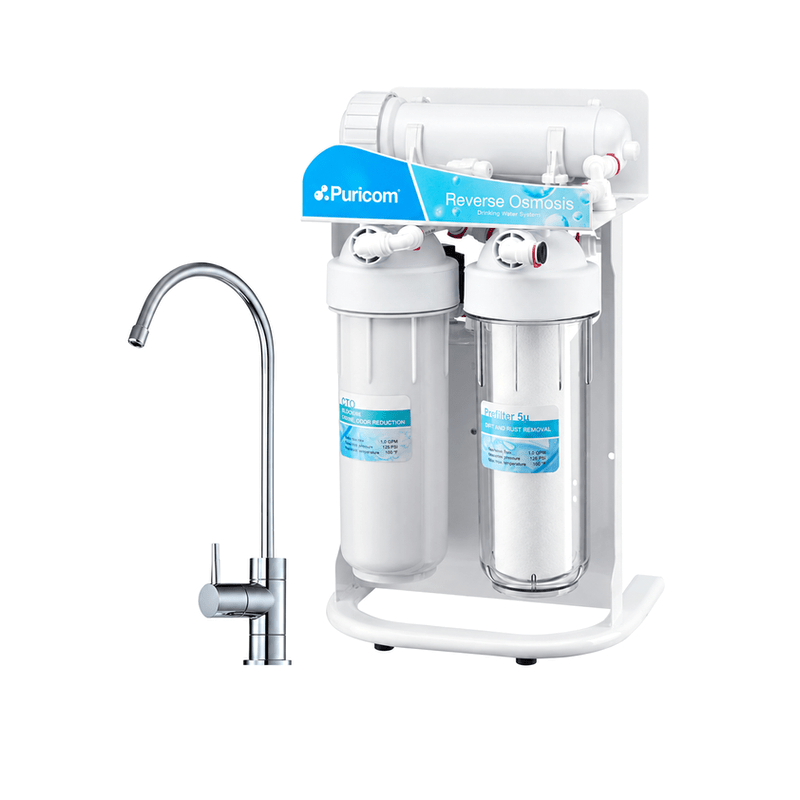

Image Note: Illustration of the CE-6 configuration without a pump. Appearance and fittings may vary. Supplied contents are limited to the selected model and the items listed under What's Included.

Manual And Configuration Reference

The dimensions and accessory references above are taken from the Puricom CE-6A 400 GPD manual. The manual illustrates the pumped configuration; this CE-6 listing is for the unit without a booster pump. Pump and transformer instructions apply to the pumped model. Follow the instructions and operating limits applicable to the supplied unit.

Downloads

Puricom CE-6A 400 GPD User Manual — Pumped Configuration (PDF)

This manual describes the CE-6A pumped configuration. Confirm the correct instructions for this unpumped CE-6 model before installation or service.
