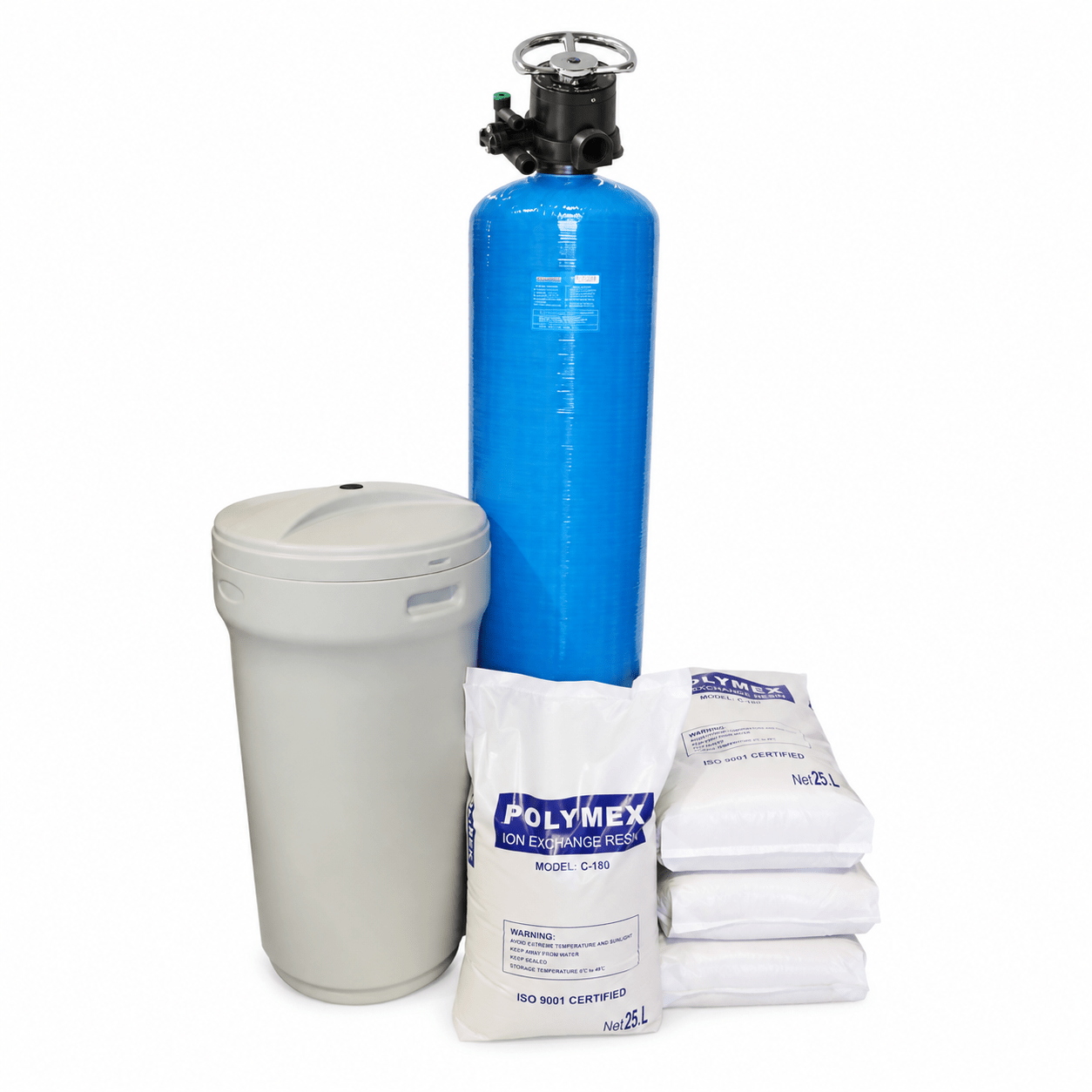

Water Softener FRP Vessel 14×65 – Manual Runxin F64A1 Head, Resin, Brine Tank & Salt

Free salt included: Each water softener comes with one free bag of softener salt, subject to availability.

This 14×65 FRP water softener combines Polymex cation-exchange resin with a Runxin F64A1 manual softener valve, and a brine tank. It reduces calcium and magnesium hardness to help limit scale in pipework and compatible appliances. The operator starts regeneration and turns the metal handwheel through each stage.

Key Features

• Nominal 14×65 FRP vessel with riser pipe and distribution strainers.
• Runxin F64A1 valve with a metal handwheel for manual stage selection.
• Polymex cation resin for ion-exchange water softening.
• Separate brine tank and brine assembly for salt regeneration.
• Pressure-driven valve operation without an electrical supply to the valve.

Technical Specifications

• Vessel size: nominal 14×65 (industry inch designation).
• Regeneration control: manual; no timer, water meter or automatic regeneration controller.
• Indicative system service flow: up to 3 000 L/h, subject to feed-water hardness, resin loading, required outlet hardness and site conditions.
• Valve rated flow: 4 m³/h. This is the valve rating, not a guaranteed softening capacity for the complete system.
• Valve inlet and outlet: DN25, 1-inch female threads.
• Drain connection: ½-inch male; brine-line connection: ⅜-inch male.
• Valve mounting thread: 2.5-inch–8 NPSM; riser outside diameter: approximately 26.7 mm (1.05 inches).
• Valve operating pressure: 1.5–6 bar.
• Valve water temperature range: 5–50 °C.

Manual Operation and Regeneration

The F64A1 provides service, backwash, brine draw with slow rinse, brine refill and fast rinse positions. Follow the Runxin instructions and the installer’s commissioning settings for the stage order and duration, salt dose and regeneration interval. The regeneration schedule must be based on measured feed-water hardness, actual resin loading and water consumption.

The operator must select and time the required stages, then return the valve to service. This single-vessel system does not provide normal softened-water service during regeneration. Keep the brine tank supplied with suitable softener salt. A feed pump, if required by the installation, has separate power requirements.

Applications

• Domestic and commercial installations requiring hardness reduction.
• Suitable whole-house or point-of-entry installations when correctly sized for water demand.
• Borehole water treatment as part of a system designed for the tested water quality.

Benefits

✓ Helps reduce hardness-related scale.
✓ Hand-operated regeneration control.
✓ No electrical supply required for the manual valve.
✓ Regenerable cation resin for ongoing softening.

What You Get

• One nominal 14×65 FRP vessel with riser pipe and distribution strainers.
• One Runxin F64A1 manual softener valve with metal handwheel.
• Polymex cation resin for the vessel configuration.
• One brine tank with brine assembly.
• One free bag of softener salt, subject to availability.

Installation and Water Quality

Professional sizing, installation and commissioning are required. Hardness testing determines the treatment capacity and regeneration settings. Where needed, provide suitable sediment and iron/manganese pretreatment. Softening does not disinfect water. Site pipework, bypass arrangements and any required feed pump are installation items.

Downloads

Runxin F64 manual softener valve instructions
