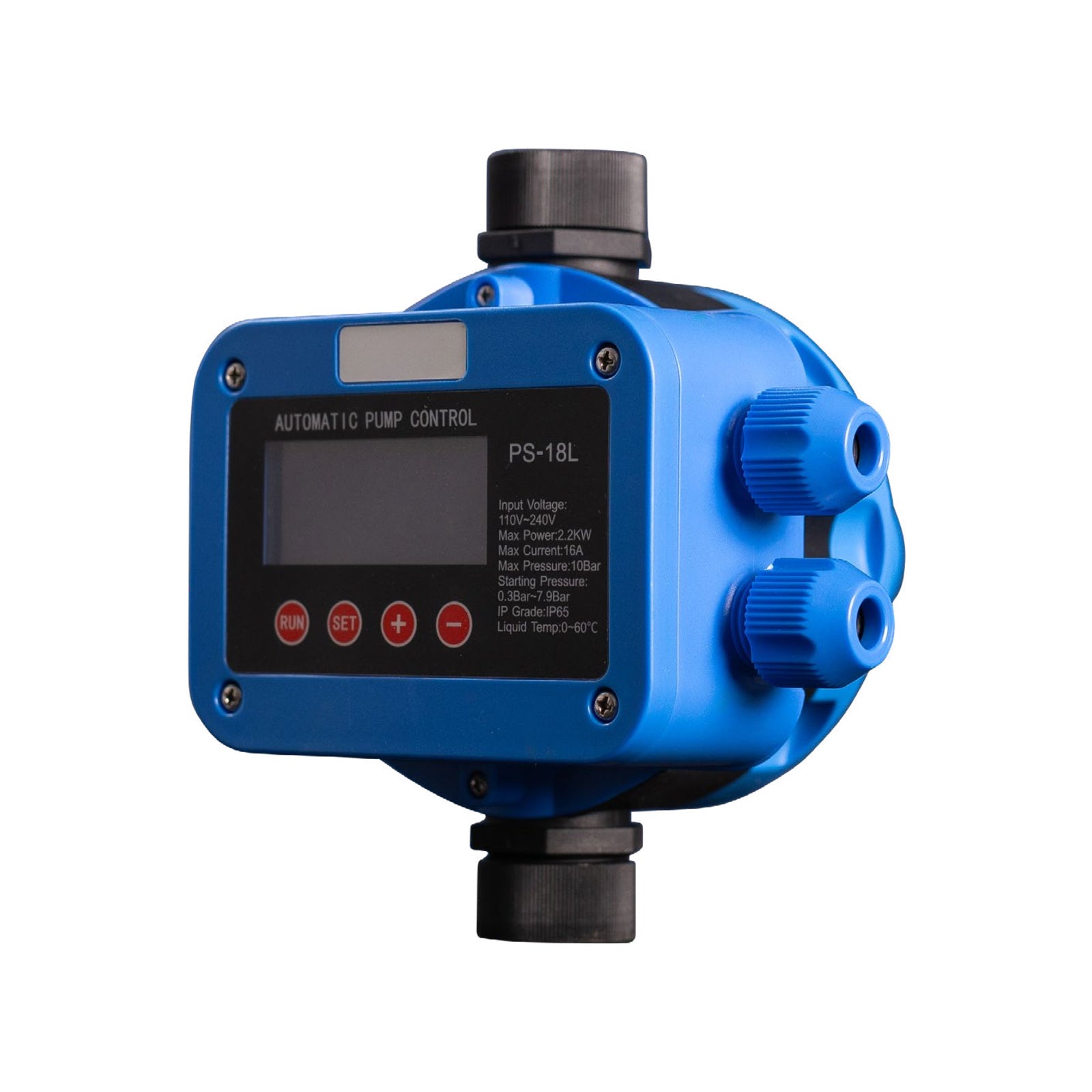

VEGA PS18L Automatic Pump Pressure Controller | 16A | 2.2 kW Max | 10 bar

The VEGA PS18L Automatic Pump Pressure Controller provides automatic start/stop control for clean-water pump systems. Its digital pressure sensor monitors pipeline pressure in real time and operates the pump as water demand changes, providing a compact alternative to a traditional pressure switch, four-way valve and separate dry-run protection arrangement.

Key Features

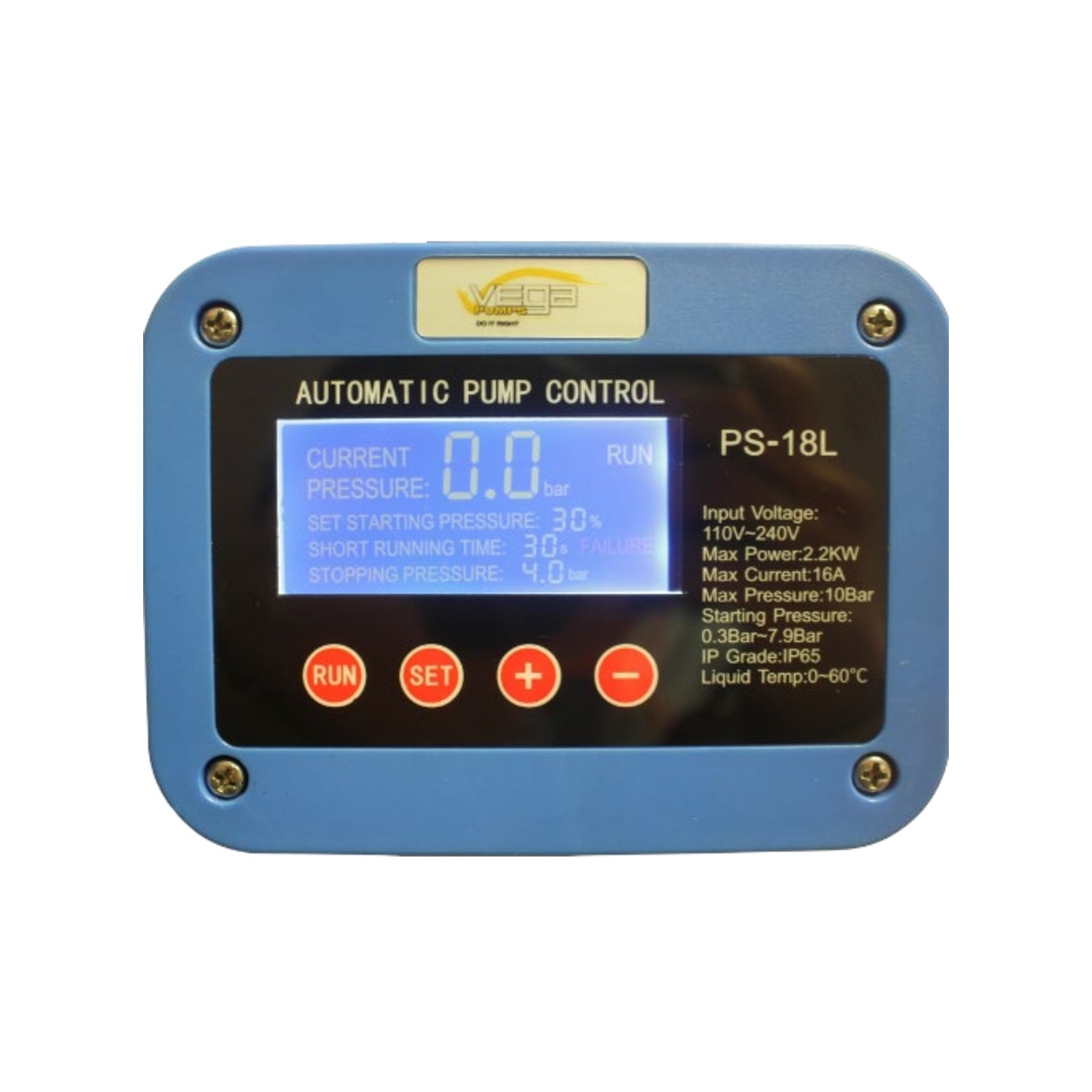

• Digital pressure sensing with real-time LCD pressure display
• Automatic pump start and stop control as water demand changes
• Adjustable start pressure from 0.3 to 7.9 bar
• Adjustable shutdown pressure from 0.5 to 9.9 bar
• Water-shortage protection with adjustable automatic restart timing
• Leak warning after repeated short start/stop cycles
• IP65-rated enclosure for improved protection in suitable pump installations
• Compact, vertically mounted design for straightforward installation

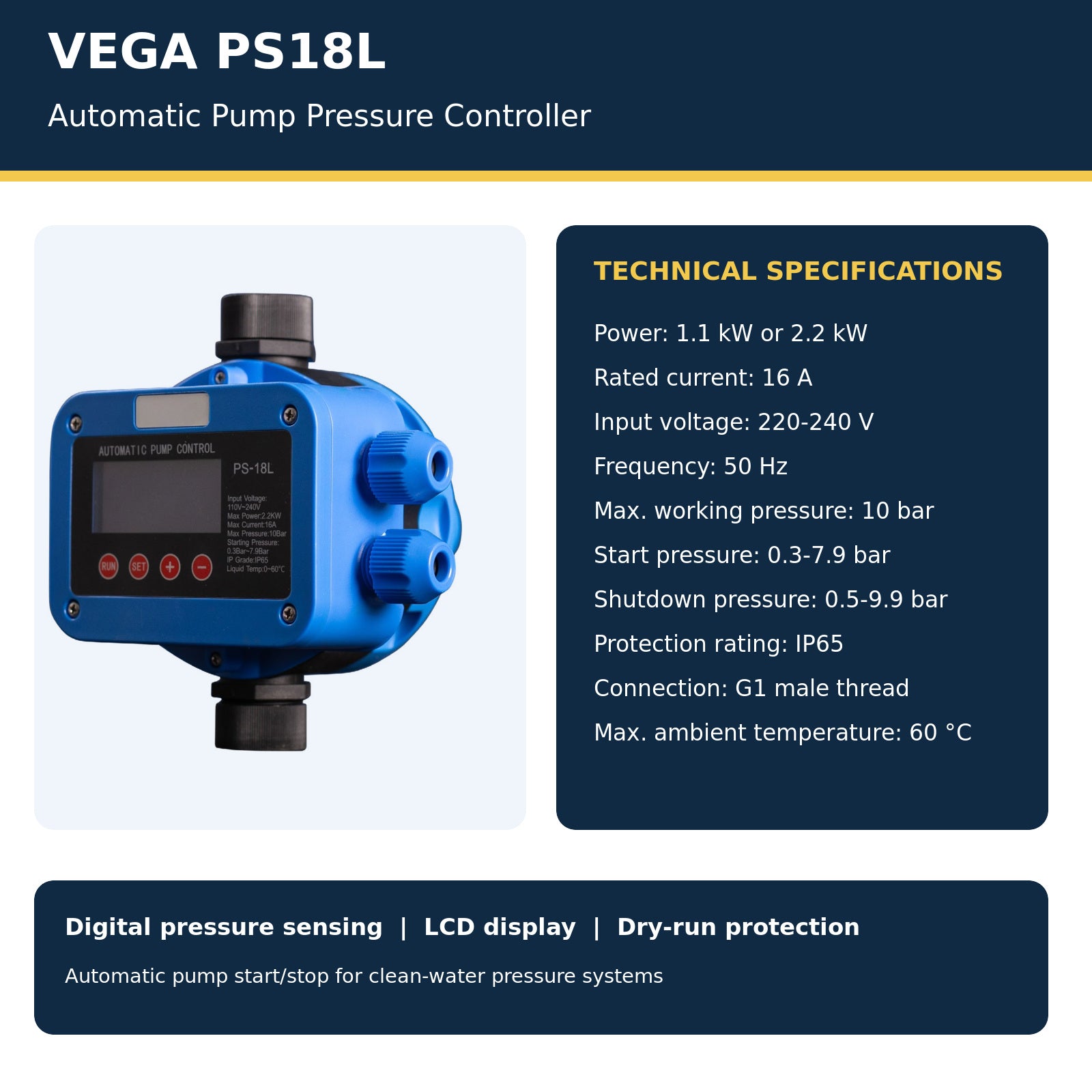

Technical Specifications

• Model: PS18L
• Supplier reference: 20040061
• Compatible pump power: 1.1-2.2 kW
• Maximum pump power: 2.2 kW
• Rated current: 16 A
• Input voltage: 220-240 V
• Frequency: 50 Hz
• Maximum working pressure: 10 bar
• Start pressure: 0.3-7.9 bar, adjustable
• Shutdown pressure: 0.5-9.9 bar
• Protection rating: IP65
• Connection: 1 inch male BSP thread
• Maximum ambient temperature: 60 °C

Suitable Applications

• Domestic water pressure boosting
• Tank-fed clean-water pump systems
• Well or borehole supply systems fitted with the required inlet check valve
• Automatic pressure control for compatible single-phase pumps

Installation Notes

• Installation and electrical connection must be completed by a suitably qualified person.
• Install the controller vertically and follow the flow-direction arrow on the housing.
• Do not install a tap or outlet between the pump and controller.
• Use with clean water only. Water containing sand, iron particles or other suspended solids should be pre-filtered.
• Fit a check valve at the pump inlet when used with a well, borehole or non-pressurised inlet line.

Package Contents

• 1 × VEGA PS18L Automatic Pump Pressure Controller

PDF BROCHURE DOWNLOAD:
PS18L Flow Controller VEGA 24-01.pdf
