Vega GFCV36T Two-in-One Pressure Tank | 36 L

The Vega GFCV36T is a 36 L two-in-one pressure tank designed for vertical or horizontal installation in...
Availability: In stock
Product type: Pressure Tanks
R 1,915.00
R 2,248.25
R 1,915.00
Please hurry! Only 2 left in stock
Subtotal: R 1,915.00
10 customers are viewing this product

Shipping & Delivery

Select from shipping options at Check Out - Shipped & Delivered Within 2- 5 Business Days

Special Delivery Requests / Notes

All 4m & 6m pipe lengths will be cut into 2m lengths for courier delivery. If you require full lengths please email us with your order number and request.

Discounts %

Note: Not all discounts can be compounded, one discount can be applied to an order at a time.
Vega GFCV36T Two-in-One Pressure Tank | 36 L - H2O Warehouse

Vega GFCV36T Two-in-One Pressure Tank | 36 L

R 2,248.25 R 1,915.00
Vega GFCV36T Two-in-One Pressure Tank | 36 L - H2O Warehouse
Vega GFCV50T Two-in-One Pressure Tank | 50 L - H2O Warehouse

Vega GFCV36T Two-in-One Pressure Tank | 36 L

R 2,248.25 R 1,915.00
Description

The Vega GFCV36T is a 36 L two-in-one pressure tank designed for vertical or horizontal installation in a water pressure-boosting system. Its EPDM membrane separates the stored water from the compressed air, allowing the tank to supply small water demands without an immediate pump start.

Key features

  • 36 L nominal tank volume.
  • Two-in-one design supports vertical or horizontal installation, offering flexibility in the pump layout.
  • Carbon steel tank body with an internal EPDM membrane that separates water from the air charge.
  • Stores a pressurised reserve to meet small water demands between pump cycles.
  • 1.2 mm EPDM membrane specified in the catalogue.

Benefits for your water system

✓ Helps reduce unnecessary starts and frequent pump cycling.
✓ Supplies small water demands from the stored pressurised reserve.
✓ Provides a useful buffer as water demand changes.
✓ Offers a choice of vertical or horizontal mounting.

GFCV36T specifications

Model / product code GFCV36T
Nominal tank volume 36 L
Orientation Vertical / Horizontal
Tank material Carbon steel
Bladder / membrane EPDM
Membrane thickness 1.2 mm
Published tank height 600 mm
Published diameter 350 mm
Connection size DN25 nominal (1 inch)

Choosing the correct tank

The stated 36 L is the nominal tank volume, rather than the amount of usable water delivered between pump starts. Available drawdown depends on the air pre-charge and the system’s operating pressures. Select the tank for the pump duty, control settings and available installation space.

Installation and maintenance

Use a suitably supported installation with compatible pipework and a pressure-control arrangement appropriate to the pump. Set and check the air pre-charge to suit the system design before commissioning. Confirm the water connection, mounting clearances and temperature limits for the supplied unit. Isolate the pump and fully depressurise the tank before maintenance.

What is included

One Vega GFCV36T 36 L pressure tank. The pump, controller, pipework and separately selected installation accessories are additional.

Two-in-one mounting layout

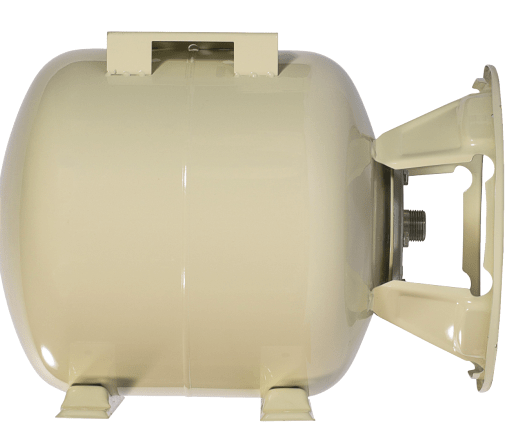

Vega two-in-one tank range shown in horizontal orientation
Catalogue photograph of the two-in-one range in horizontal orientation. This listing supplies one tank, suitable for either supported orientation.

Data sheet download

Download the official Vega pressure tank range data sheet (PDF)

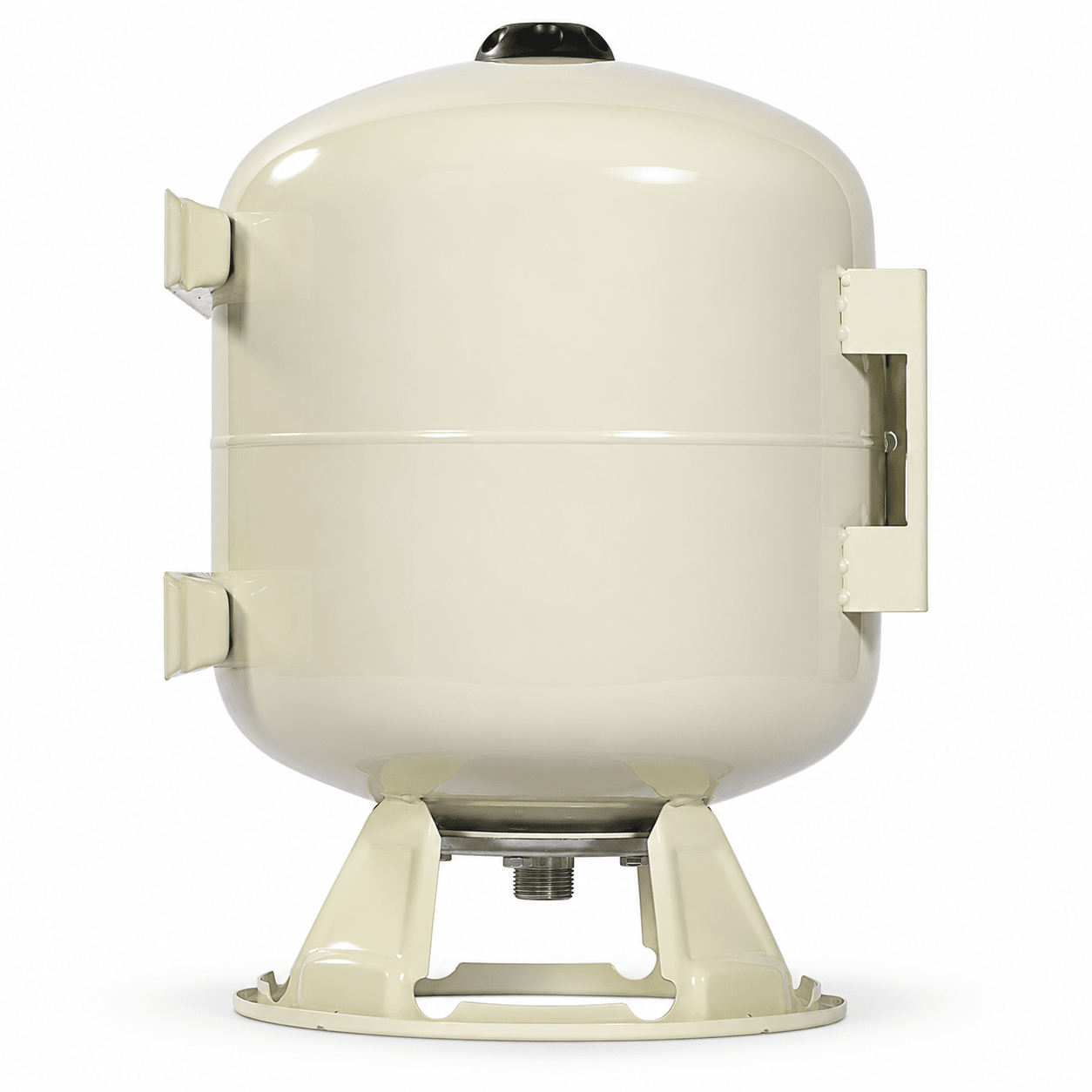

Main image is a catalogue-based product illustration. Refer to the model dimensions and data sheet when planning the installation.
