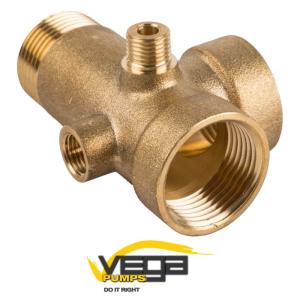

Vega FC01 Five-Way Pressure Tank Connector | 20040003

The Vega FC01 five-way connector provides a compact connection point for the pipework and instruments in a pressure-tank or booster-pump installation. Use the model and product code to select the correct fitting for your system layout.

Key features

• Five-way connection configuration.
• Model FC01; product code 20040003.
• For assembling compatible pressure-system connections in one compact fitting.
• Allows an installer to organise pipework, gauge and pressure-control connections around the selected manifold.

Benefits

✓ Provides a compact common connection point.
✓ Helps organise pressure-system pipework and instruments.

Product specifications

Choosing the correct connector

Check every port size and thread, fitting orientation, operating pressure and temperature limit before installation. FC01 and GFV-H025 are separate models; do not assume their port layouts or included components are interchangeable. Confirm any integrated non-return valve against the supplied model.

Installation

Fit with compatible pipework and thread seals, support the connected components and allow access to the gauge and controls. Isolate and depressurise the system before installation or maintenance. Leak-test the completed assembly.

What is included

One FC01 five-way connector. Pump, pressure tank, gauge, pressure switch, additional valves and pipework are sold separately.

PDF PRODUCT REFERENCE DOWNLOAD

Download the H2O Warehouse pressure tank accessories reference (PDF)

This selection reference covers product identification and compatibility checks. It is not a model-specific dimensional drawing.
