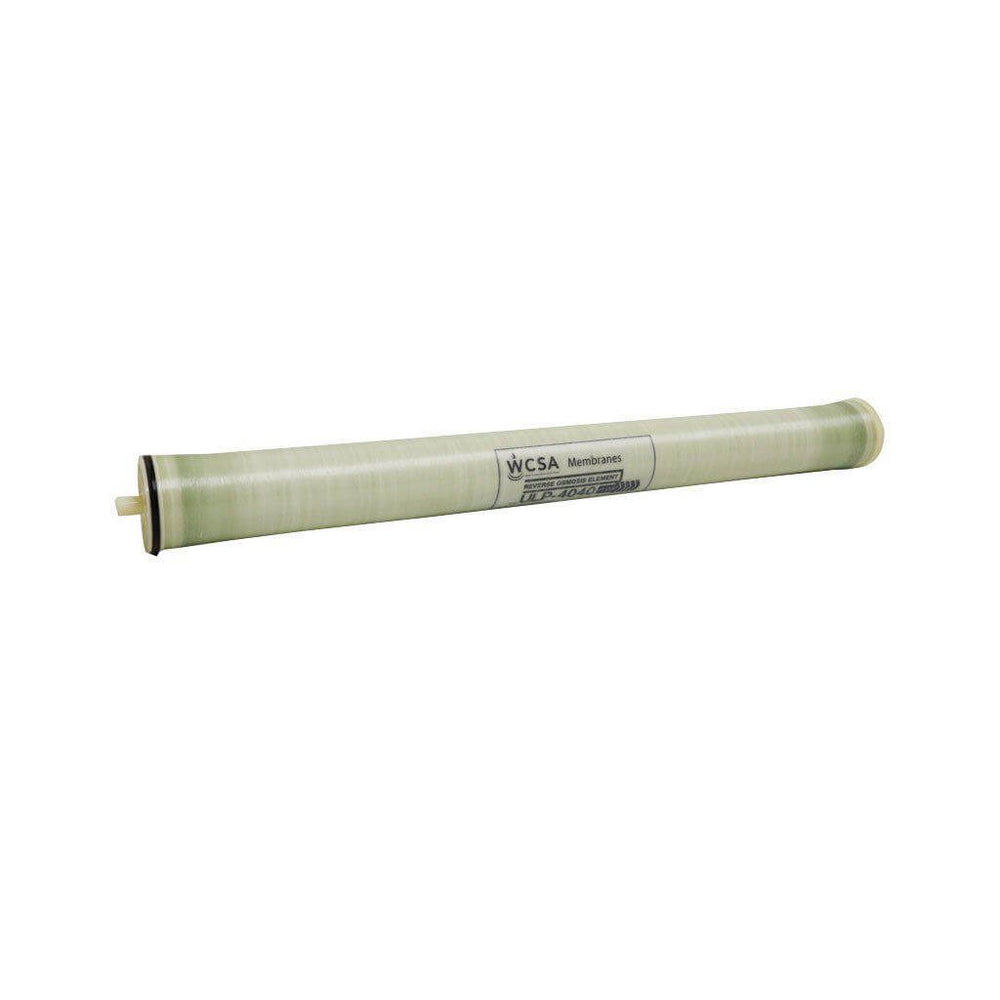

ULP-4040 Reverse Osmosis Replacement Membrane, 2400GDP

The ULP-4040 Reverse Osmosis Replacement Membrane, 2400GDP has high permeability with a high membrane area, providing a compact system with low energy demand.

Designed for reliable operation & production of high-quality drinking water

Provides a high rejection of organic compounds with low working pressure
Low running costs and 99.2% salt rejection under standard test conditions
Durable with good cleanability for long element life

Applications:

Automatic water dispensers in residential areas & schools
Direct drinking equipment in offices
Pure water machines in medical laboratories
Small-sized desalination devices

Operating conditions:

Maximum working pressure: 600psi (4.14MPa)
Maximum feed water temperature: 45ºC
Maximum feed water flow: 3.2m³/h
Maximum feed water SDI5: 5.0
Free chlorine concentration of feed water: 0.1mg/l
pH range of feed water during continuous operation: 2 - 11
pH range of feed water during chemical cleaning: 1 - 13
Maximum pressure drop of single membrane element: 13psi (0.09Mpa)

Product specifications:

Model: ULP-4040
Active membrane area: 7.2m²
Permeate flow: 2400GPD
Stable rejection rate: 99.5%
