8 kW TESK SVM(T)10-100 Twin-Pump Booster Skid | 2 x 4 kW

The TESK SVM(T)10-100 twin-pump booster skid combines two vertical multistage pumps on a common galvanised base for a project-specific water-pressure boosting installation. This listing represents one complete two-pump assembly. Each pump has a documented operating point of 10 m³/h at 81.5 m head; the final system duty must be checked against the installation requirements.

• Supply unit: One skid containing two TESK SVM(T)10-100 pumps.
• Per-pump motor: 4 kW, 380 V, three-phase, 50 Hz.
• Assembly: Common base, shared flanged pipework, valves and pump-mounted control enclosures, as shown in the reference.
• Connections: DN40 DIN PN25 flanged connections are stated for each pump; confirm complete-skid connection sizes before ordering.
• Documentation: Download the skid overview and separate single-pump performance curves below.

Product Description

The assembly brings two matching pump units, their visible control enclosures and common pipework together on one base. The SVM(T)10-100 is a non-self-priming vertical multistage centrifugal pump with inline inlet and outlet connections. The supplied technical reference identifies ten stages and a nominal speed of 2900 rpm.

A two-pump arrangement must be selected with its actual control sequence and hydraulic duty in mind. Duty/standby operation and simultaneous operation give different system behaviour. The supplied curve describes one pump; it does not establish the complete skid's output. A verified combined curve, control settings and site requirements must determine the final selection.

Key Features

• Two matching SVM(T)10-100 pump units on a shared fabricated skid.
• Vertical multistage construction with documented 304 stainless steel impellers.
• Individual motor ratings of IP55 protection and class F insulation.
• Visible flanged manifold arrangement, blue-handled valves and interconnecting wiring.

Benefits

•  A common base keeps the two-pump assembly together for coordinated site installation.
•  Matching pumps provide a consistent model reference for technical selection and service planning.
•  Included pump curves and drawings help the installer check the proposed operating point before commissioning.

Technical Specifications

• Pump quantity and model: 2 x TESK SVM(T)10-100.
• Listed duty per pump: 10 m³/h at 81.5 m head, 2900 rpm.
• Motor per pump: 4 kW; 380 V; three-phase; 50 Hz; rated current 7.84 A.
• Stages: 10 per pump.
• Listed pump efficiency: 64.1% at the stated operating point.
• Single-pump connections: DN40, DIN flange, PN25. This flange designation is not a complete-skid pressure rating.
• Curve conditions: Clean water at 20°C; the reference states ISO 9906 Grade 2 for clean cold water.
• Packed system weight and dimensions: Awaiting confirmation. Single-pump drawing dimensions and mass must not be used for freight booking.

Applications

For consideration in engineered commercial water-pressure boosting systems where the documented pump curve matches the design duty. Selection requires peak demand, static lift, pipework losses, inlet conditions and required outlet pressure. Building height or room count alone does not confirm suitability.

What's Included

• One complete skid assembly containing two SVM(T)10-100 pumps.
• Common base and the shared pipework, valves, control enclosures and wiring represented in the reference photograph, subject to the approved final bill of materials.
• Downloadable skid overview and single-pump technical reference.

Confirm installation, commissioning, delivery, external pipework, electrical connection and any additional controls separately in the project quotation.

Compatibility and Installation

Before order release, confirm the controller nameplates, site electrical supply, skid connections, operating sequence, pressure limits and final component schedule. A qualified installer must check available suction conditions and the required duty against the complete system design.

Maintenance and Service

Obtain the exact pump and controller installation and service instructions before commissioning. Confirm access for inspection, isolation and servicing in the site layout. No service interval or replacement-parts equivalence is established by the supplied performance sheet.

Why Choose This Product

This assembly brings two documented TESK multistage pumps into one packaged arrangement, with model-specific performance information available for engineering review.

Technical Downloads

• Twin-pump skid overview and per-pump specifications (PDF)
• SVM(T)10-100 single-pump curves, dimensions and structure drawing (PDF)

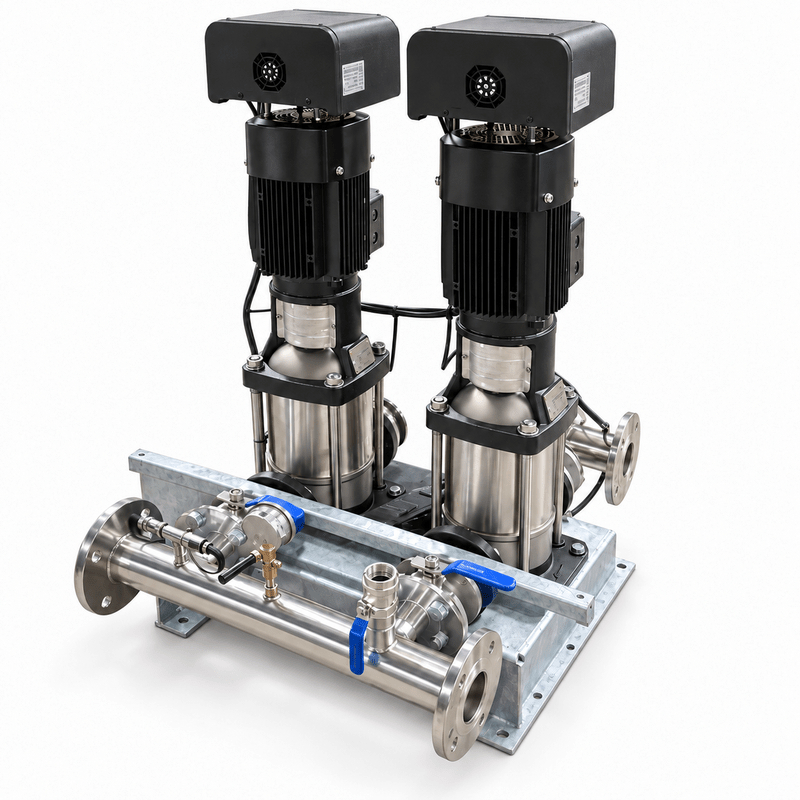

Image disclaimer: The clean product image is an illustrative edit of the supplied warehouse photograph. Final supplied components are governed by the approved bill of materials.
