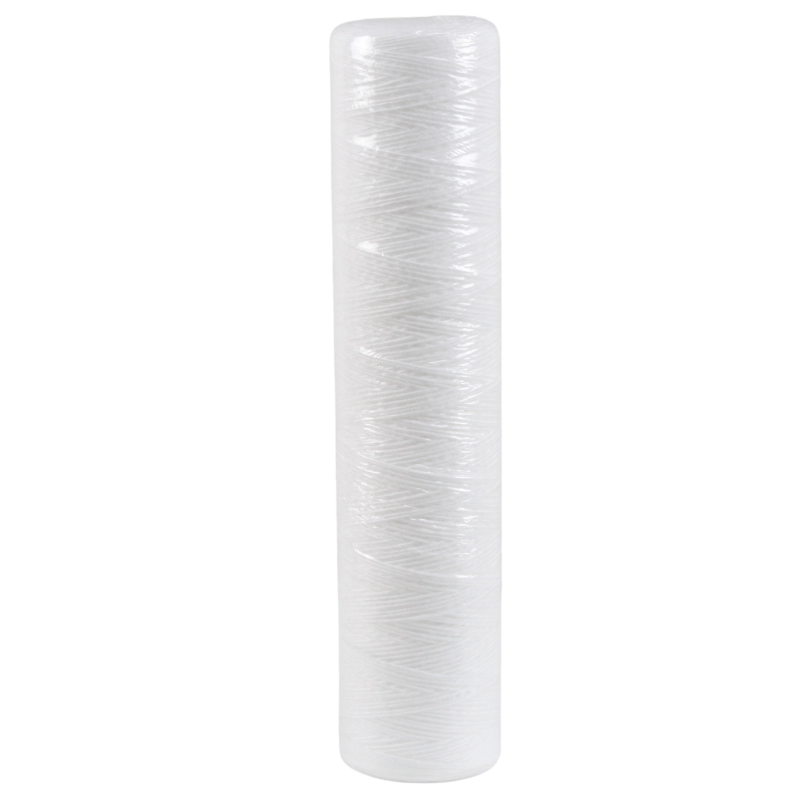

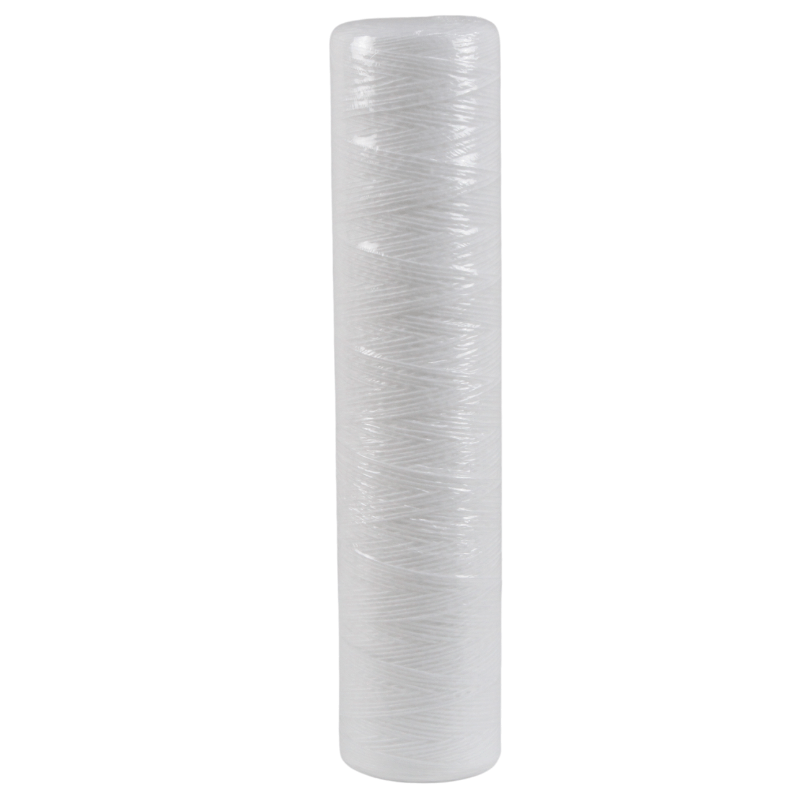

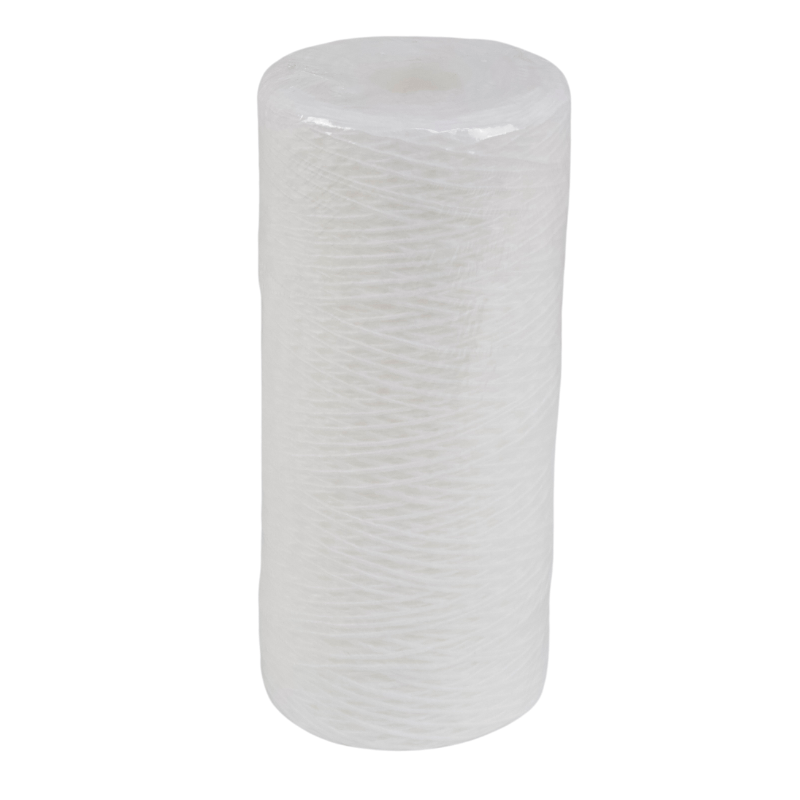

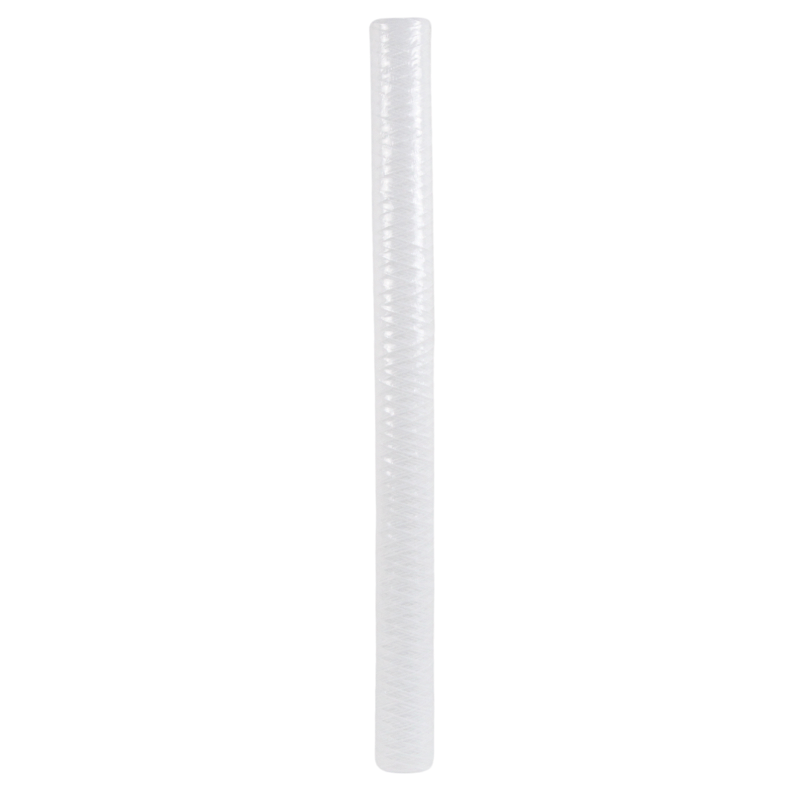

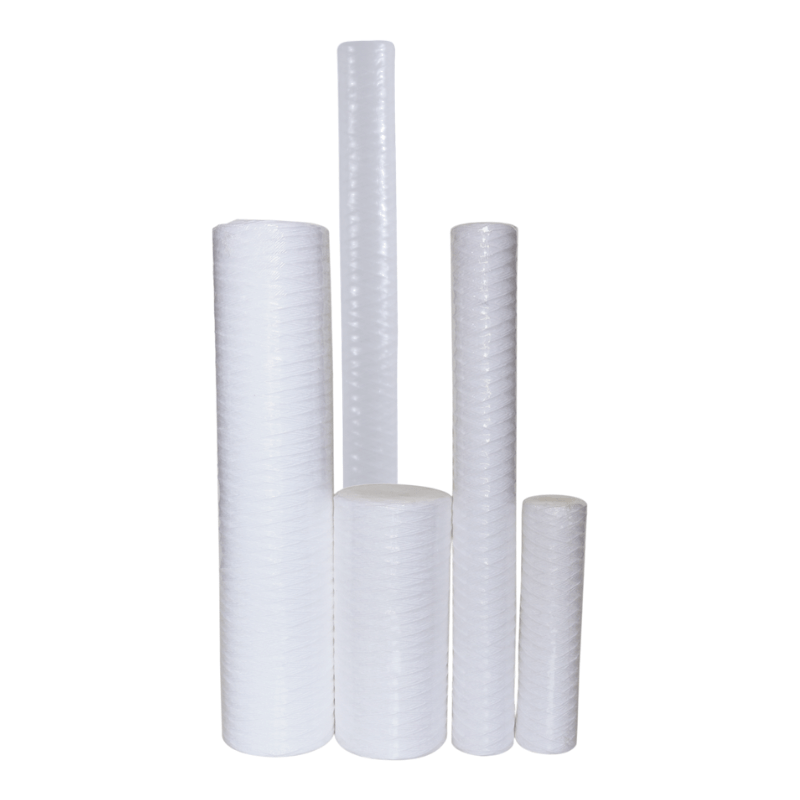

String Wound Filter Cartridges – Slimline & Big Blue | 10", 20", 30" | 1 to 100 Micron

Durable, High-Capacity Sediment Filtration for Residential & Industrial Applications

Our premium string wound filter cartridges are ideal for effective sediment removal in both residential and commercial systems. Made from high-grade polypropylene yarn tightly wound around a rigid core, these cartridges offer high dirt-holding capacity and are suitable for a wide range of water types including borehole, municipal, and rainwater.

Key Features:

• Wide Micron Range: From 1 to 100 micron for tailored sediment removal.

• Depth Filtration: Gradient density structure captures particles throughout the entire cartridge depth.

• Chemical Resistance: Compatible with a wide range of water chemistries.

• High Dirt-Holding Capacity: Reduces pressure drop and extends time between replacements.

• NSF Certified Polypropylene Material (where applicable): Safe for use in potable water systems.

• Universal Fit: Designed for standard and Big Blue filter housings.

Available Variants:

Slimline 10" String Wound Cartridges:

• 10" 1 Micron

• 10" 5 Micron

• 10" 10 Micron

• 10" 20 Micron

• 10" 30 Micron

• 10" 50 Micron

• 10" 100 Micron

Slimline 20" String Wound Cartridges:

• 20" 1 Micron

• 20" 5 Micron

• 20" 10 Micron

• 20" 20 Micron

• 20" 50 Micron

• 20" 100 Micron

Slimline 30" String Wound Cartridges:

• 30" 1 Micron

• 30" 5 Micron

• 30" 10 Micron

• 30" 20 Micron

Big Blue 10" String Wound Cartridges:

• 10" Big Blue 1 Micron

• 10" Big Blue 5 Micron

• 10" Big Blue 10 Micron

• 10" Big Blue 20 Micron

Big Blue 20" String Wound Cartridges:

• 20" Big Blue 1 Micron

• 20" Big Blue 5 Micron

• 20" Big Blue 10 Micron

• 20" Big Blue 20 Micron

Applications:

• Whole-house sediment filtration

• Pre-treatment for UV, RO or carbon systems

• Rainwater harvesting systems

• Borehole water filtration

• Industrial process water

Specifications:

• Media: Polypropylene Yarn

• Core: Polypropylene

• Max Operating Pressure: 6.9 bar

• Temperature Range: 4°C – 63°C

• Micron Rating: 1–100 micron

• Style: DOE (Double Open End)

Maintenance Tip:
Replace the cartridge when pressure drop becomes significant or water clarity declines. For best results, pair with a pressure gauge to monitor system performance.

Data Sheet Download: HERE
