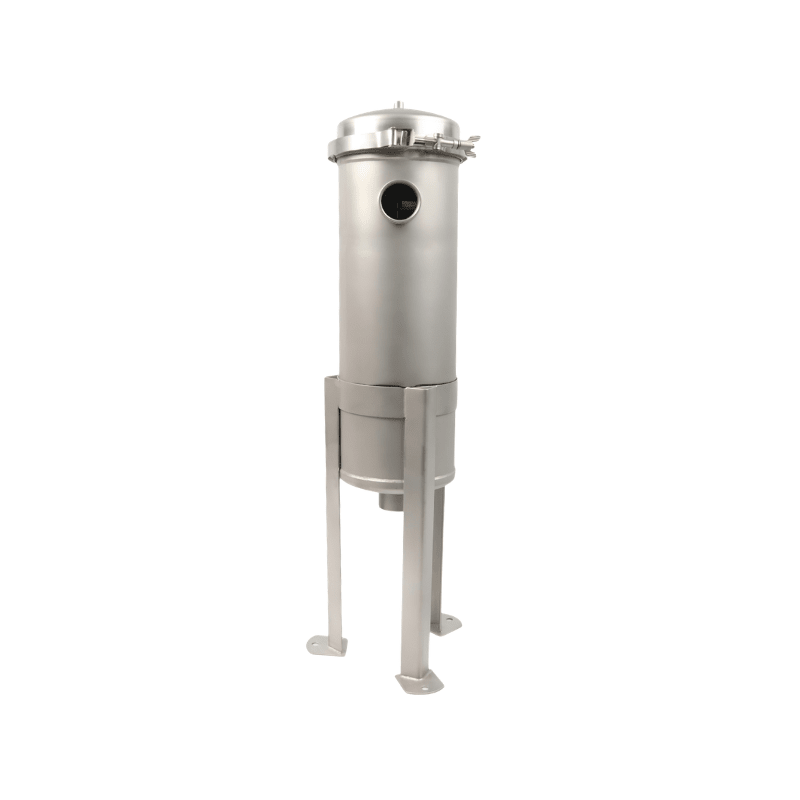

Stainless Steel Double Length Bag Filter 100PSI #2 | 2" BSP Connection

The Stainless Steel Bag Filter Housing – #2 single length with 2" Female BSP inlet and outlet connections – is a durable, high-quality, and highly efficient solution for medium-to-high volume liquid filtration in water treatment, agriculture, food and beverage, chemical processing, and general industrial use.

Made from high-grade Stainless Steel, the housing offers excellent resistance to corrosion, making it suitable for both aggressive and non-aggressive fluid applications. Allows for easy installation and maintenance, while the single-length design supports effective filtration with a more compact footprint, ideal where space is limited.

Key Features:

Stainless Steel Construction – Ideal for water treatment and chemical environments
#2 Bag Size – Double Length – Accommodates industry-standard filter bags, offering reliable service intervals
2” Female BSP Connections
High Flow Capability – Designed for continuous-duty filtration applications up to 40 m³/h
Top Entry Design – Ensures positive sealing and ease of bag replacement
Ideal for Food Grade Systems

Technical Specifications:

• Material: 304 Stainless Steel

• Bag Size: #2 (Double Length)

• Inlet/Outlet Connection: 2” Female BSPThread

• Max Flow Rate: Up to 40 m³/h (depending on fluid and micron rating)

• Max Operating Pressure: 6 Bar (100 psi)

• Max Operating Temperature: 45°C

• Housing Colour: Silver

• Seal Type: EPDM

• Installation Orientation: Vertical

• Mounting Base: Integrated flange foot for stability

• Dimensions: Ø 257mm x 1050mm (Height)

What’s in the Box?

1 x Stainless Steel Bag Filter Housing – #2 Size (Double Length)
1 x Lid with Clamp Mechanism
1 x Internal Support Basket

Filter bags sold separately HERE

Applications:

Water Treatment Plants – Removes sediment, particulates, and debris
Agricultural & Irrigation Systems – Protects pumps, nozzles, and downstream components
Food & Beverage Industry – Filters processing water, rinsing streams, and CIP return flows
Chemical Processing – Compatible with a wide range of non-aggressive chemicals
Aquaculture & Fisheries – Maintains clear, healthy water in tanks or ponds
RO Pre-Filtration – Ideal as a first-stage filter before reverse osmosis systems

Benefits:

Chemical & Corrosion Resistant – Perfect for harsh environments and aggressive media
Medium Volume Capacity – Supports routine operations with extended intervals between changes
Compact & Lightweight Design – Simplifies installation and handling
Flexible Integration – Easily connects to existing systems with standard 2” BSP
Cost-Effective Filtration – Reduces operational costs through extended filter life

Why Choose the Stainless Steel Bag Filter Housing – #1 Double Length?

This rugged, filter housing offers exceptional durability, space efficiency, and reliable performance, making it a preferred choice for medium-flow water filtration in demanding environments.

Whether used in industrial water treatment, agricultural irrigation, or chemical processing systems, the #1 Bag Filter Housing delivers dependable protection for downstream equipment and improved water quality.

Important Note:

Product images are for reference only and may not reflect the exact configuration. Filter bags are sold separately.
