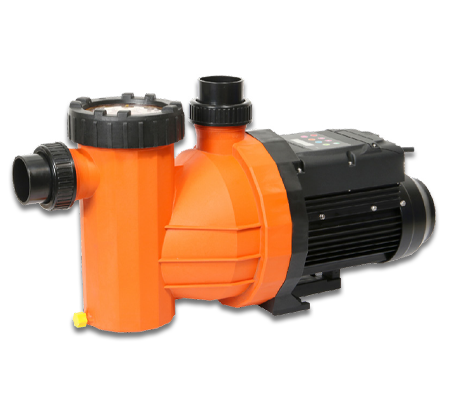

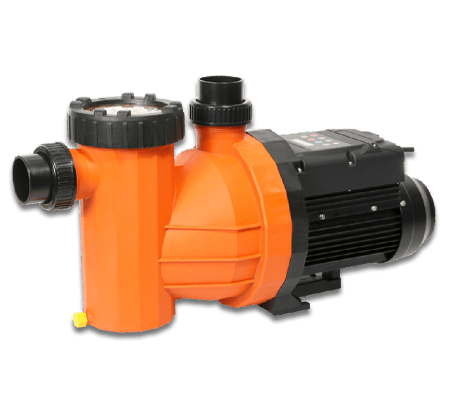

SPECK BADU Eco VSD Pro 23 Variable-Speed Pool Pump (1.50 kW)

Product Description

SPECK BADU Eco VSD Pro 23 is an energy-efficient self-priming circulation pump with an adjustable controller for swimming pools, small koi ponds and compatible water-circulation applications.

Key Features

• Variable-speed permanent-magnet motor for adjustable circulation.
• Manual and automatic operating modes.
• Self-priming design for pool and pond circulation.
• Designed to reduce energy consumption when operated at lower motor speed.

Technical Specifications

• Manufacturer: SPECK Pumps South Africa
• Supplier product code: 209.0163.938
• Electrical supply: 1~ 230 V
• Default power output P2: 1.50 kW
• Default power input P1: 1.76 kW
• Default rated current: 13.3 A
• Inlet/outlet: 63/63 mm
• Product dimensions: 723 × 260 × 274 mm (L × H × W)
• Product weight: 17.55 kg

Installation and Selection Notes

• Select the pump from the required flow and total dynamic head against the exact performance curve; motor power alone is not a sizing method.
• Provide the clearances, electrical protection and pipe diameters specified in the current installation manual.
• Confirm the exact model, site conditions and installation requirements before ordering.

Warranty

• 24-month ex-factory warranty under normal operating conditions from date of purchase.
• Warranty is subject to SPECK’s current terms, correct installation, normal operating conditions and proof of purchase.

Official Documents

• Official BADU Eco VSD Pro product page
• Official BADU Eco VSD Pro range guide
• Automatic-operation guide
• Manual-operation guide
