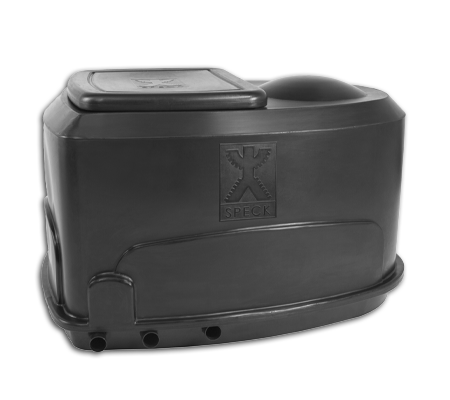

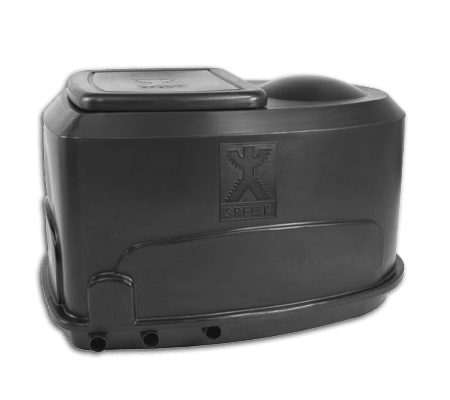

SPECK BADU Combi 3 Solar Smart with Aquaswim 3 Sand Filter

Product Description

SPECK BADU Combi 3 Solar Smart with Aquaswim 3 Sand Filter is a prefabricated filtration system combining an Aquaswim 3 sand filter, BADU Solar Smart DC self-priming pump, three-piece housing and DC breaker. SPECK rates this combination for pools up to 80,000 litres.

Key Features

• Ready-to-install combination filtration system.
• Solar-capable BADU Solar Smart pump with integrated variable-speed control.
• Aquaswim 3 sand filter and protective housing.
• DC breaker included in the supplier-described configuration.

Technical Specifications

• Manufacturer: SPECK Pumps South Africa
• Supplier product code: 700.1102.580
• Recommended pool size: Up to 80,000 L
• Motor output: 0.75 kW (1.0 HP)
• Nominal motor voltage: 72 V DC
• Operating voltage range: 60–150 V DC
• Maximum motor input: 930 W
• Maximum motor current: 15 A
• Aquaswim filter area: 0.27 m²
• Filter diameter: 24 inch
• Filter-media requirement: 120 kg sand

Included Items

• Aquaswim 3 sand filter.
• BADU Solar Smart DC self-priming pump.
• Three-piece housing.
• DC breaker.

Installation and Selection Notes

• Solar panels are not stated as included in the official product configuration and must be specified separately.
• Select and install the photovoltaic array, protection, pipework and filter media for the site conditions.
• Confirm the exact model, site conditions and installation requirements before ordering.

Warranty

• 24-month ex-factory warranty on the pump and 60-month ex-factory warranty on the Aquaswim filter under normal operating conditions from date of purchase.
• Warranty is subject to SPECK’s current terms, correct installation, normal operating conditions and proof of purchase.

Official Documents

• Official BADU Combi 3 Solar Smart product page
