AFM Sediment & Turbidity Reduction Filter – 10×54 FRP Vessel – Manual Backwash

The 10×54 sediment and turbidity reduction filter captures suspended particles to improve water clarity. AFM is activated glass filter media used as a physical filtration stage, with routine backwashing to remove accumulated material from the bed.

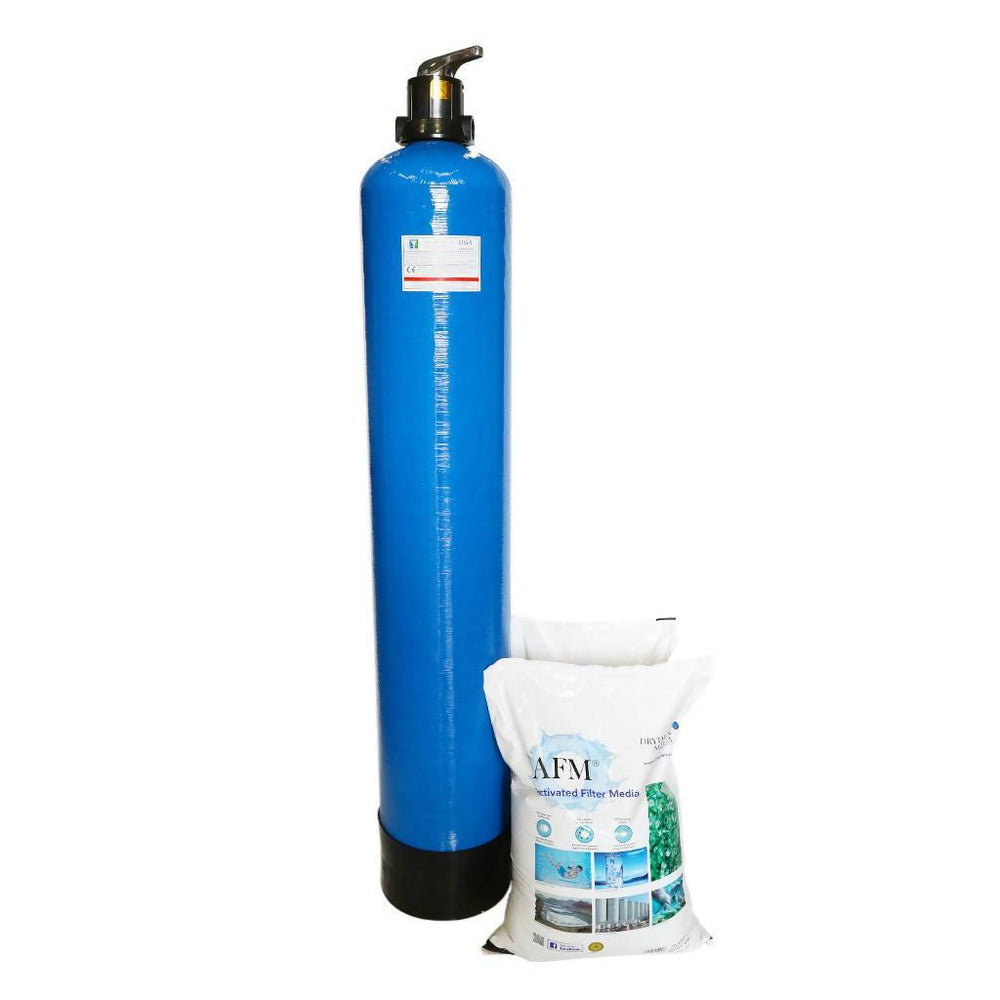

This complete media-vessel package includes the 10×54 FRP vessel, manual backwash valve and AFM activated glass filter media.

Key Features & Benefits

• Clearer water: Reduces suspended sediment and particulate matter responsible for turbidity.
• Activated glass media: Provides a filtration bed designed to resist biofouling when correctly operated.
• Useful pre-filtration: Helps reduce particulate loading on downstream cartridges and other treatment equipment.
• Manual backwash: The operator selects and times the cleaning stages, then returns the valve to service. This suits installations with someone available to carry out routine maintenance.
• FRP construction: A corrosion-resistant vessel body houses the treatment bed.

Applications

• Sediment filtration for borehole, wellpoint, rainwater and municipal supplies, following a water-quality assessment.
• Point-of-entry filtration and suitable commercial water processes.
• Pre-filtration before fine cartridges, UV or reverse osmosis where required by the treatment design.

Technical Specifications

• Product code: H2OW18
• Vessel size designation: 10×54; nominal vessel designation, not the installed height including the valve.
• Vessel material: Fibreglass-reinforced plastic (FRP).
• Treatment media: AFM activated glass filter media
• Head / control: Manual backwash valve
• System design flow: Select from the water analysis, media bed depth, required outlet quality and available backwash supply. Vessel size or valve capacity alone does not establish the treatment flow.

What’s Included

• Vessel: 1 × 10×54 FRP vessel.
• Control valve: 1 × Manual backwash valve.
• Media: AFM Grade 1: 1 × 25 kg bag; AFM Grade 2: 1 × 25 kg bag.
• Internals: Riser pipe and distribution components as specified for this vessel.

Installation & Use

• Before installation: Have the source water tested and confirm the treatment sequence, operating flow and backwash requirements.
• Site connections: Arrange inlet and outlet pipework, suitable isolation/bypass provision and a correctly sized drain for backwash water.
• Commissioning: Load and condition the media according to the media and valve instructions. Leave the required expansion space; supplied bag quantities are not an instruction to fill the vessel to the top.
• Cleaning control: Follow the fitted valve instructions for backwash and rinse. Time each stage and return the valve to service when cleaning is complete.
• Operating limits: Use the lowest pressure and temperature limits of the vessel, valve and other fitted components. Isolate and depressurise before opening the vessel.

Important Information

• Treatment role: AFM captures particles. Dissolved iron or manganese generally requires an oxidation stage before the resulting solids can be filtered.
• Filtration performance: Particle capture depends on the AFM grade, media layering, filtration velocity and feed water. The vessel is not assigned an absolute micron rating here.
• Water hygiene: Resistance to biofouling in the media does not mean the water is disinfected. Provide a separately designed disinfection stage where required.
• Bed care: Use the specified media grading, support arrangement and expansion space; backwash at a flow that cleans the bed without washing media out.
• Complete treatment design: Additional oxidation, pH correction, softening or disinfection may be required for the intended use. A media vessel alone does not establish that water is suitable for drinking.
