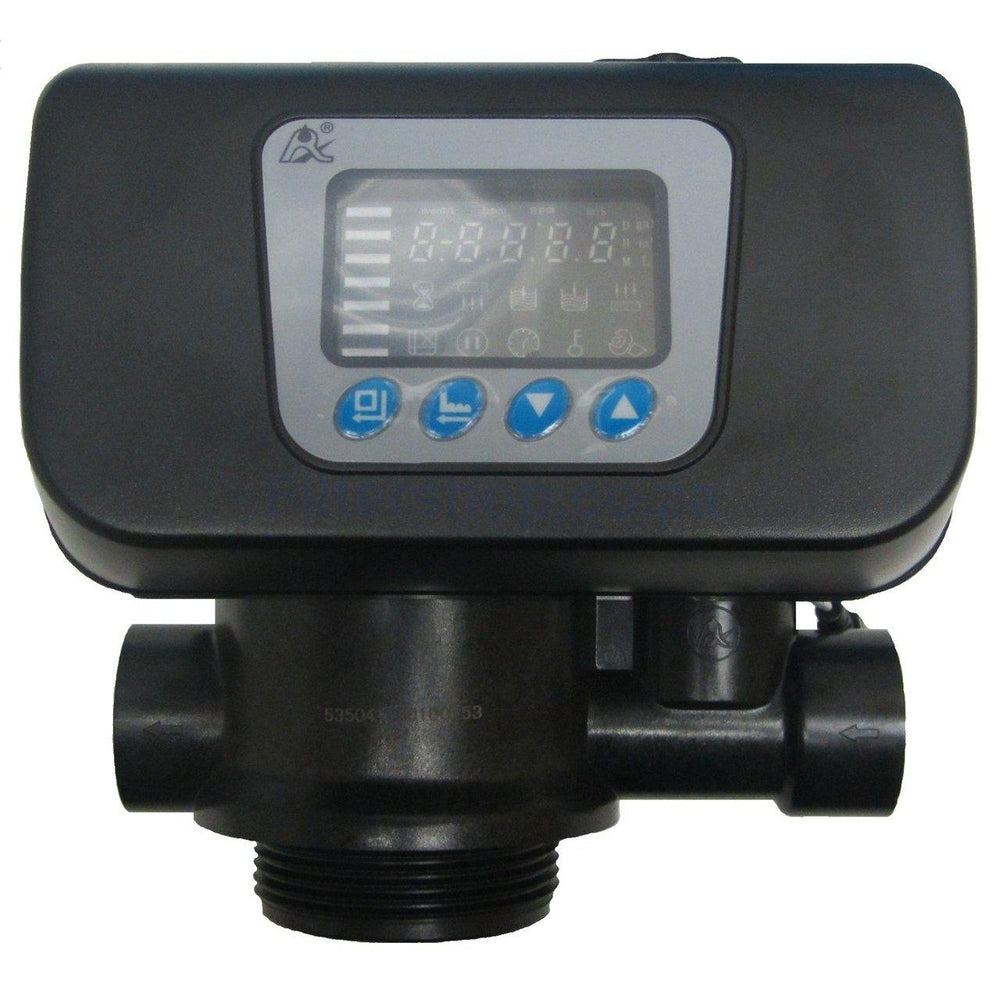

RUNXIN F67C1 Automatic Backwash Head (2.5-Inch Base Thread, 4m³/h Max Flow Rate)

The RUNXIN F67C1 Automatic Backwash Head is a robust and efficient control valve designed for backwashing filtration systems. Featuring a 2.5-inch base thread and capable of handling flow rates up to 4m³/h, this automatic backwash head is perfect for residential, commercial, and light industrial applications.

This model offers fully automated backwash and rinse cycles, ensuring optimal filter media performance without manual intervention. With an easy-to-use digital interface, the F67C1 allows for precise programming of regeneration times and cycles, making it an energy-efficient and low-maintenance solution for water filtration systems.

Key Features:

• Automatic Backwash Function: Automates the backwashing and rinsing process, ensuring consistent media performance.
• High Flow Capacity: Handles flow rates up to 4m³/h, suitable for a variety of applications.
• 2.5-Inch Base Thread: Standard base size compatible with most FRP vessels, simplifying installation.
• User-Friendly Interface: Digital display for easy programming and monitoring of backwash cycles.
• Durable Construction: Made from high-quality, corrosion-resistant materials for extended lifespan.
• Low Energy Consumption: Efficient power usage with reliable operation.
• Manual Override Option: Allows manual backwashing when required for maintenance or emergencies.
• Multi-Language Display: Supports various languages for user convenience.

Technical Specifications:

• Model: RUNXIN F67C1
• Function: Automatic backwash head for filtration systems
• Base Connection: 2.5-inch threaded base
• Maximum Flow Rate: 4m³/h
• Working Pressure: 0.15–0.6 MPa
• Water Temperature Range: 5°C – 45°C
• Power Supply: 220V/110V (50Hz/60Hz)
• Control Method: Microprocessor-controlled digital system
• Display: LED/LCD digital interface
• Weight: 3.2 kg

Conditions for Operation:

• Maximum Water Temperature: 45°C
• Working Pressure Range: 0.15–0.6 MPa
• Flow Rate Capacity: Up to 4m³/h
• Regeneration Mode: Time-based automatic backwash
• Installation: Compatible with standard 2.5-inch FRP vessels

Applications:

• Residential Filtration Systems: Ensures optimal performance of home water filtration systems.
• Commercial Water Filtration: Ideal for hotels, restaurants, and office buildings requiring reliable backwash systems.
• Industrial Filtration Processes: Suitable for light industrial applications requiring efficient backwashing.
• Pre-Treatment for Reverse Osmosis: Maintains filtration media cleanliness for improved RO system performance.
• Sand, Carbon, and Multimedia Filters: Ideal for backwashing various filtration media types.

Benefits:

• Consistent Filtration Performance: Regular backwashing keeps filtration media clean and effective.
• Low Maintenance: Automates backwashing cycles, reducing the need for manual cleaning.
• Energy-Efficient Operation: Designed for minimal energy consumption during backwash cycles.
• Easy Installation & Compatibility: Fits standard 2.5-inch FRP vessels with a simple setup process.
• Durable & Long-Lasting: Made from corrosion-resistant materials for reliable, long-term use.
• Flexible Operation: Programmable settings allow users to customise backwash cycles according to system needs.
• User-Friendly Controls: Digital interface simplifies monitoring and adjustments.

What You Get:

• 1 x RUNXIN F67C1 Automatic Backwash Head
• 1 x Power Adapter (220V/110V, 50Hz/60Hz)
• User Manual & Installation Guide

Why Choose the RUNXIN F67C1 Automatic Backwash Head from H2O Warehouse?

At H2O Warehouse, we provide high-quality water treatment components that combine performance, durability, and efficiency. The RUNXIN F67C1 Automatic Backwash Head offers reliable control of backwash filtration systems, ensuring optimal media performance with minimal maintenance. Designed with a 2.5-inch base thread and supporting flow rates up to 4m³/h, this valve is the ideal solution for residential, commercial, and light industrial applications.

Head Programming video for the F67C1 and F67C3 models:
