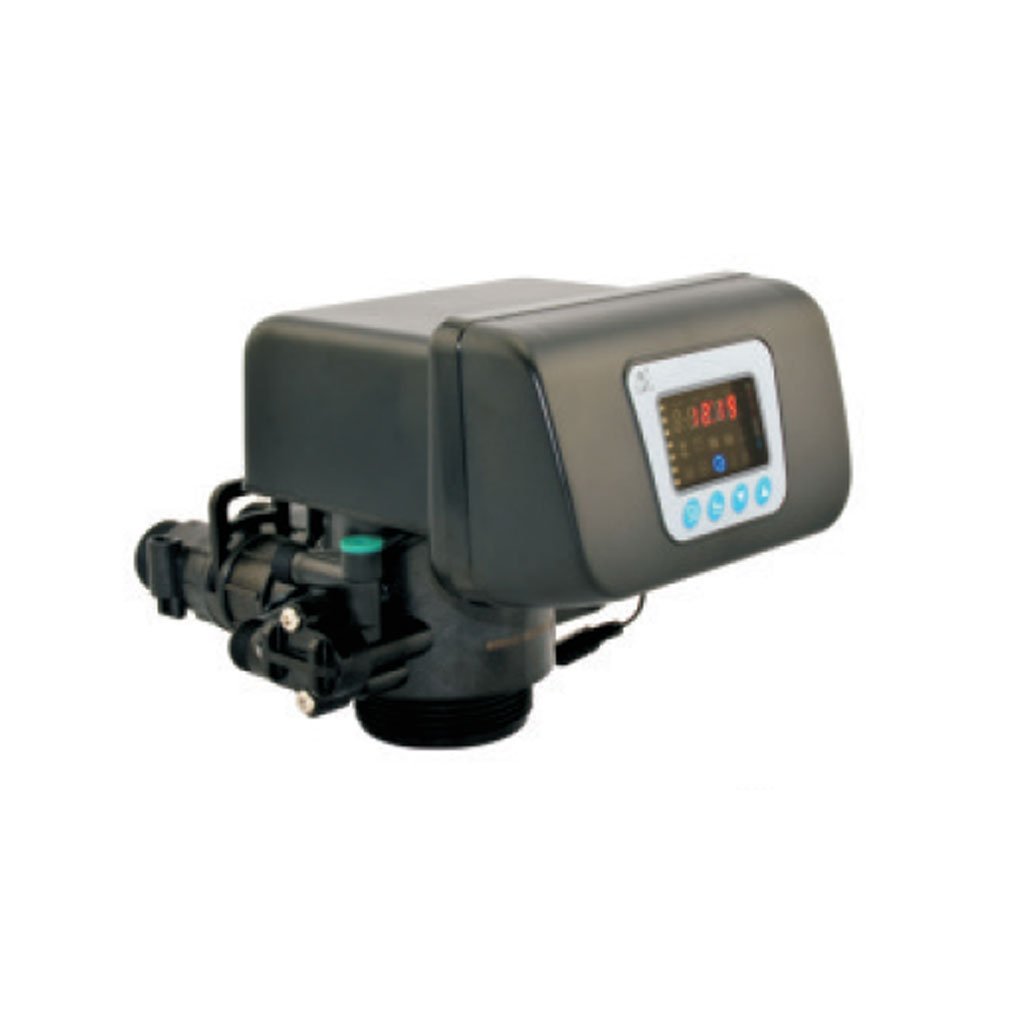

RUNXIN F63C3 Automatic Softener Valve for Water Treatment Systems (2.5inch Base, 4m³/h)

The RUNXIN F63C3 Automatic Softener Valve is a high-performance control valve designed for water softening systems in residential, commercial, and industrial applications. With a robust 2.5-inch base and capable of handling flow rates up to 4m³/h, this valve automates the softening process, including regeneration and backwashing, ensuring consistent water quality with minimal user intervention.

The F63C3 model features a user-friendly interface, programmable cycles, and durable construction for long-term performance. The F63C3 uses metered water-volume regeneration with an optional maximum day interval.

Key Features:

• Automatic Operation: Fully automates softening processes, including regeneration and backwash cycles.
• Metered Regeneration: Triggers regeneration when the programmed treatment capacity is exhausted, either immediately or at the selected regeneration time.
• High Flow Capacity: Supports up to 4m³/h flow rate, suitable for residential and commercial applications.
• Durable Construction: Made from high-quality, corrosion-resistant materials for long-lasting performance.
• 2.5-Inch Base Connection: Compatible with standard 2.5-inch FRP vessels, allowing for easy integration.
• User-Friendly Interface: Simple programming with an intuitive digital display for easy operation.
• Low Energy Consumption: Designed for efficient operation, reducing water and energy costs.
• Manual Override Option: Allows manual regeneration in case of emergencies or special requirements.

Technical Specifications:

• Model: RUNXIN F63C3
• Function: Automatic control valve for water softener systems
• Regeneration Mode: Metered water-volume regeneration with an optional maximum day interval
• Base Connection: 2.5 inches
• Maximum Flow Rate: 4m³/h
• Working Pressure: 0.15–0.6 MPa
• Water Temperature Range: 5°C – 45°C
• Power Supply: 220V/110V (50Hz/60Hz)
• Control Method: Microprocessor-based digital control
• Display: LED/LCD digital interface
• Weight: 3.5 kg

Applications:

• Residential Water Softeners: Ideal for household systems to prevent scale buildup in plumbing and appliances.
• Commercial Water Treatment: Suitable for hotels, restaurants, and office buildings requiring reliable water softening.
• Industrial Applications: Handles water softening in light industrial processes and equipment protection.
• Boiler and Cooling Tower Systems: Ensures efficient operation by preventing scale formation in heating and cooling systems.
• Pre-Treatment for Reverse Osmosis Systems: Improves RO performance and extends membrane lifespan.

Benefits:

• Consistent Water Softening: Maintains optimal water quality by automatically controlling regeneration cycles.
• Reliable & Durable: Constructed from high-grade materials to withstand long-term, continuous use.
• Easy Installation & Maintenance: Compatible with standard vessels and comes with clear instructions for setup.
• Efficient Operation: Reduces water and salt usage through optimised regeneration processes.
• User-Friendly Programming: Simple interface with adjustable settings for personalised water softening schedules.
• Versatile Application: Suitable for both residential and commercial systems with medium flow requirements.

What You Get:

• 1 x RUNXIN F63C3 Automatic Softener Valve
• 1 x Power Adapter (220V/110V, 50Hz/60Hz)
• User Manual & Installation Guide

Why Choose the RUNXIN F63C3 Automatic Softener Valve from H2O Warehouse?

At H2O Warehouse, we supply premium water treatment components designed for reliability and performance. The RUNXIN F63C3 Automatic Softener Valve offers efficient, automatic control of water softening systems with minimal maintenance. Its robust construction, user-friendly interface, and high flow capacity make it ideal for both residential and commercial applications.

Automatic Regeneration Settings:

• Water-volume control: The F63C3 meters water use and starts regeneration when the programmed treatment capacity is exhausted. Volume can be set in litres or m³ using the controller unit setting.
• Delayed regeneration (A-01): Regeneration takes place at the programmed regeneration time after the available capacity is used.
• Immediate regeneration (A-02): Regeneration starts as soon as the available capacity is used.
• Intelligent metering (A-03/A-04): Capacity is calculated from the entered resin volume, feed-water hardness and regeneration factor, with delayed or immediate operation.
• Maximum day interval: A selectable 1–40-day override starts regeneration at the programmed time when that interval is reached, even if capacity remains. Set this parameter to 0 to disable the override.
• Manual start: A regeneration cycle can also be started from the control panel.

Days and litres can work together: Use metered regeneration with a maximum day interval. The F63C3 is the metered softener model; the separate service-days/time-clock setting shown in the shared manual relates to time-clock variants.

Downloads:

• Download the Runxin F63C3 User Manual & Installation Guide (PDF)

The manufacturer's shared F63/F68 manual includes the F63C3 / 63604 metered softener valve. Refer to the F63C3 sections when programming this head.
