RainPoint 8 Zone Irrigation Controller – Wi‑Fi Ready

RainPoint Wi‑Fi Irrigation Controller – 8 Zone

The RainPoint Wi‑Fi Irrigation Controller – 8 Zone brings professional‑grade watering automation to your garden, lawn, or landscaped areas. With app‑based control, voice assistant compatibility, and support for up to eight independent watering zones, it offers unmatched flexibility for tailored irrigation schedules.

Designed for convenience and efficiency, the controller connects via your home’s 2.4 GHz Wi‑Fi through the RainPoint Smart+ app, allowing you to manage watering plans, view a visual watering calendar, and adjust settings remotely. It can also integrate with RainPoint sensors to make weather‑ and soil‑based adjustments automatically, saving water and protecting plant health.

Key Features

• 8 Independent Zones – Control up to eight valves plus a main valve.

• App Control Anywhere – Manage watering plans remotely via the RainPoint Smart+ app.

• Flexible Scheduling – Set up to 8 watering plans per valve.

• Weather‑Based Adjustments – Skip or delay watering based on rain or seasonal changes.

• Sensor Compatibility – Pair with up to 2 RainPoint sensors for soil moisture or rain detection.

• Clear Button Controls – Easy manual operation directly on the unit.

• Voice Assistant Support – Works with Amazon Alexa and Google Assistant.

• Durable Design – Built for outdoor use with a wide operating temperature range.

Benefits

✓ Saves time by automating complex multi‑zone watering schedules.
✓ Prevents over‑ or under‑watering with integrated sensor input.
✓ Reduces water waste through weather‑based programming.
✓ Ideal for large gardens, sports fields, and commercial landscaping.
✓ Easy to monitor and adjust plans with a visual calendar view in the app.

Technical Specifications

• Model: HIC801W

• Zones: 8 + 1 main valve (AC Solenoids only)

• Power Supply: AC 24V adapter (included)

• Output: 24V AC 0.8A (AC Solenoids)

• Max Input Power: 10W

• Operating Temperature: 3 °C – 50 °C

• Storage Temperature: –10 °C – 50 °C

• Connectivity: 2.4 GHz Wi‑Fi

• Sensor Support: Up to 2 sensors

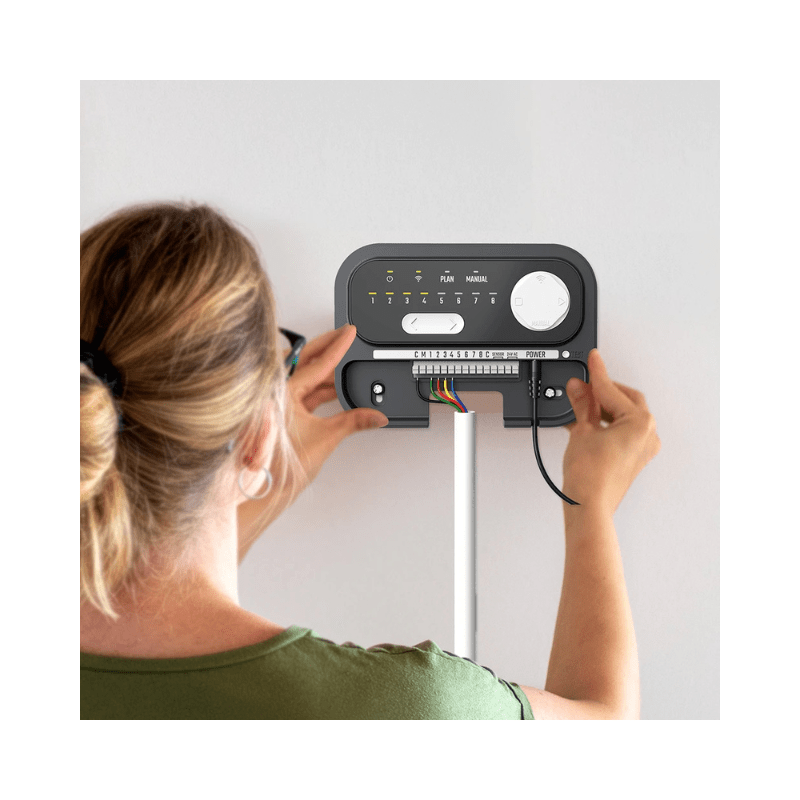

• Installation: Wall‑mountable with screws & expansion bolts included

What You Get

• 1 × RainPoint 8‑Zone Wi‑Fi Irrigation Controller

• 1 × AC Adapter

• 1 × Set of Screws & Expansion Bolts

• 1 × Quick Guide

• 1 × User Manual

• 1 × Warranty Card

Product Manual Download: Click HERE
