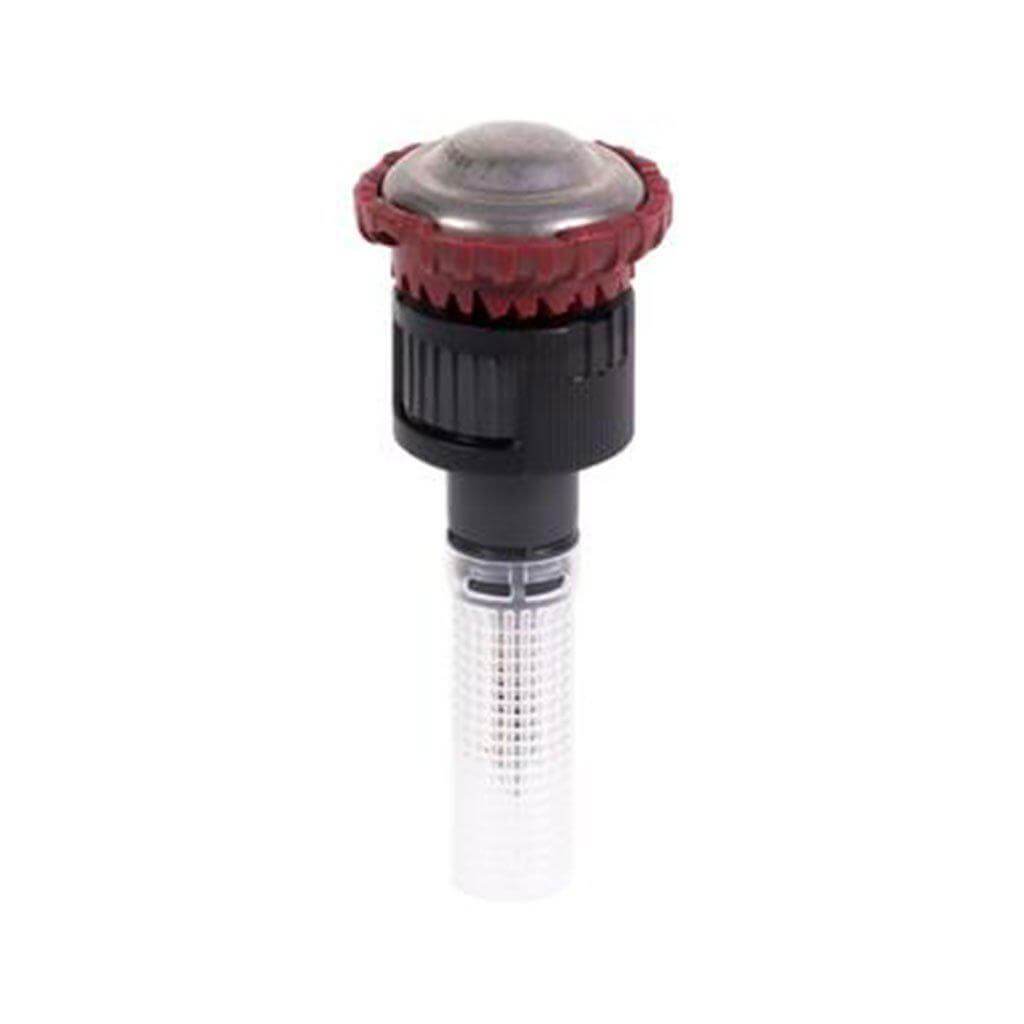

RAIN BIRD R-VAN-24 Adjustable Rotary Nozzle, 5.2 - 7.3m Radius, 45° - 270° Arc

The RAIN BIRD R-VAN-24 Rotary Nozzle saves water, is easy-to-use and provides a thick stream with large water droplets to cut through the wind and deliver water where you want it.

Hand-adjustable rotary nozzle with a 45 - 270° adjustable arc & 5.2 - 7.3m (17 - 24ft) throw radius
Quick & easy arc or radius adjustment & colour coded on top for easy identification
Operates under high pressure without misting or fogging while maintaining efficient performance
Equipped with a convenient pull-up flush feature for clearing dirt & debris from the nozzle
Enjoy matched precipitation across radius, arcs & pattern types, compatible with all models of Rain Bird spray bodies, risers & adapters

The R-VAN range is designed to deliver the most efficient coverage while making installation and maintenance quick and easy.
Rain Bird Corporation is a global privately-held manufacturer and supplier of irrigation products and services for landscapes, sports fields, golf courses, and agriculture - designed to minimize water consumption.
R-VAN-24 Rotary Sprinkler Nozzle Performace Chart:


Operating Range:

Pressure range: 30 - 55psi (2.1 - 3.8bar)
Recommended operating pressure: 45psi (3.1bar)
Spacing: 2.4 - 7.3m (8 - 24ft)
Adjustments: Arc and radius should be adjusted while water is running

*Rain Bird recommends using 1800 P45 Spray Bodies to maintain optimum nozzle performance in higher pressure situations
Product specifications:

Model: R-VAN-24 = Adjustable Rotary Nozzle, 5.2 - 7.3m throw radius
Radius: 5.2 - 7.3m (17 - 24ft)
Flow rate: 2.27 - 10.9l/m (0.96 - 2.88gpm)
Colour: Black, red
Arc: 45 - 270°
Trade warranty: 3-year

Applications:

Turf
Flower beds
Hills
Slopes
Compact soils
