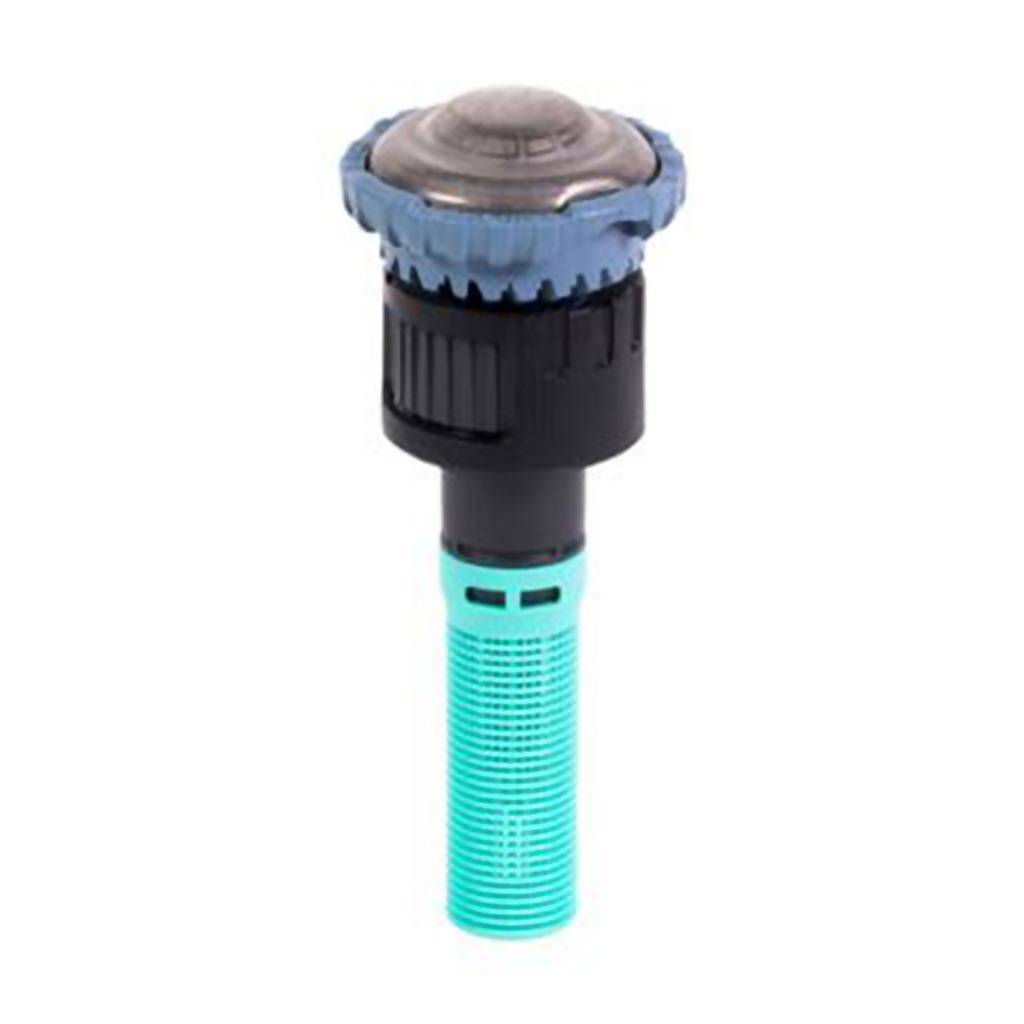

RAIN BIRD R-VAN-14 Adjustable Rotary Nozzle, 2.4 - 4.6m Radius, 45° - 270° Arc, Blue

The RAIN BIRD R-VAN-14 Adjustable Rotary Nozzle saves water, is easy-to-use and provides a thick stream with large water droplets to cut through the wind and deliver water where you want it.

Hand-adjustable rotary nozzle with 45° - 270° arc adjustment & 2.4 - 4.6m (8 - 14ft) throw radius
Quick & easy arc or radius adjustment & colour coded on top for easy identification
Operates under high pressure without misting or fogging while maintaining efficient performance
Equipped with a convenient pull-up flush feature for clearing dirt & debris from the nozzle
Enjoy matched precipitation across radius, arcs & pattern types, compatible with all models of Rain Bird spray bodies, risers & adapters

The R-VAN range is designed to deliver the most efficient coverage while making installation and maintenance quick and easy.
Rain Bird Corporation is a global privately-held manufacturer and supplier of irrigation products and services for landscapes, sports fields, golf courses, and agriculture - designed to minimize water consumption.
R-VAN14 Rotary Sprinkler Nozzle Performace Chart:

Operating Range:

Pressure range: 30 - 55 psi (2.1 - 3.8 bar)
Recommended operating pressure: 45 psi (3.1 bar)
Spacing: 2.4 - 7.3m (8 - 24ft)
Adjustments: Arc and radius should be adjusted while water is running

*Rain Bird recommends using 1800 P45 Spray Bodies to maintain optimum nozzle performance in higher pressure situations
Product specifications:

Model: R-VAN-14 = Adjustable Rotary Nozzle, 2.4 - 4.6m throw radius
Radius: 4.0 - 4.6m (13 - 15ft)
Flow rate: 1.06 - 4.43l/m (0.28 - 1.17gpm)
Colour: Black, blue
Arc adjustment: 90° - 360°
Trade warranty: 3-year

Applications:

Turf
Flower beds
Hills
Slopes
Compact soils
