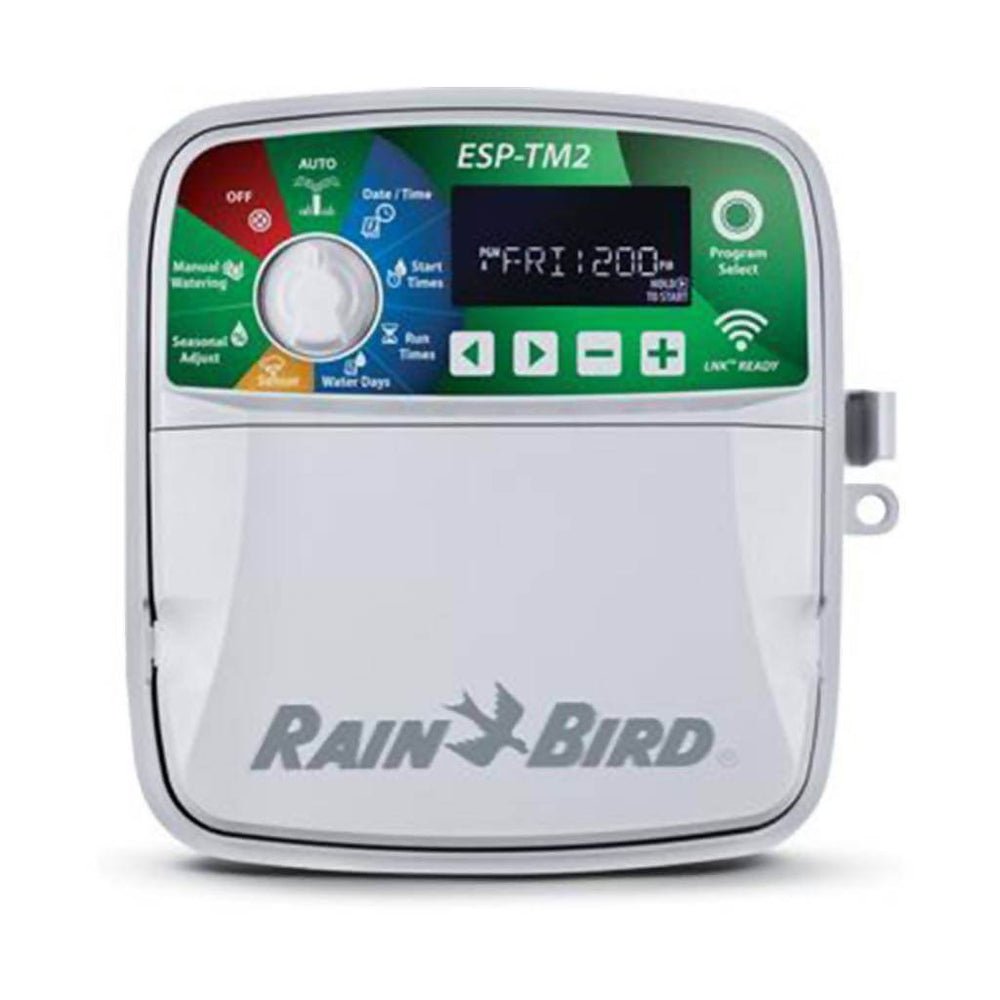

Rain Bird ESP-TM2-6 Outdoor Irrigation Controller | 6 Zone, Wi-Fi Ready

The Rain Bird ESP-TM2-6 is a 6-zone outdoor irrigation controller, designed for residential and light commercial irrigation systems that require easy programming, reliable performance, and smart watering options.

With Wi-Fi upgradeability via the LNK2 Wi-Fi Module (sold separately), homeowners and property managers can remotely manage irrigation schedules, adjust watering based on real-time weather conditions, and optimize water efficiency.

Featuring intuitive programming, seasonal adjustments, rain sensor compatibility, and manual watering options, the ESP-TM2-6 is a reliable choice for automated irrigation management.

Key Features:

✔ Supports Up to 6 Irrigation Zones – Ideal for small to medium residential landscapes.
✔ Wi-Fi Ready for Smart Control – Upgrade with the Rain Bird LNK2 Wi-Fi Module (sold separately) for app-based remote irrigation control.
✔ 3 Independent Programs – Customizable watering schedules (A, B, C).
✔ 4 Start Times Per Program – Up to 12 watering cycles per day for precise scheduling.
✔ Multiple Scheduling Options – Custom watering days, odd/even days, or cyclic (every 1-30 days).
✔ Manual Watering Modes – Activate all zones, a single zone, or a specific program with one touch.
✔ Seasonal Adjustment (5% to 200%) – Modify watering durations based on seasonal weather conditions.
✔ Rain Sensor Compatibility – Automatically pauses irrigation during rain (Rain Bird Rain Sensor sold separately).
✔ Permanent Days Off Feature – Disable watering on selected days for maintenance or special needs.
✔ Contractor Default™ Setting – Save and restore custom schedules with the push of a button.
✔ Bypass Sensor Capability – Customize which zones respond to rain sensor settings.
✔ Watering Delay Feature – Pause irrigation for up to 14 days, then automatically resume.

User-Friendly Design:

✔ Large, Backlit LCD Screen – Easy-to-read display for quick programming, even in low light.
✔ Intuitive Dial-Based Interface – Simplified programming and navigation for hassle-free setup.

Technical Specifications:

• Model: ESP-TM2-6
• Number of Zones: 6
• Programs: 3 independent programs (A, B, C)
• Start Times Per Program: 4
• Wi-Fi Compatibility: Yes (Requires LNK2 Wi-Fi Module – Sold Separately)
• Power Supply: 230VAC at 50/60Hz
• Max Operating Temperature: 50°C
• Material: Durable Weatherproof Plastic Enclosure
• Sensor Compatibility: Supports Rain Bird Rain Sensors (Sold Separately)
• Battery Backup: Includes 10-Year Lithium Battery to Retain Time & Date During Power Outages
• Non-Volatile Memory: Retains programming for up to 100 years to prevent data loss

Dimensions:

• Width: 20.1 cm
• Height: 20.0 cm
• Depth: 9.0 cm

What’s in the Box?

✔ 1 x Rain Bird ESP-TM2 Outdoor Irrigation Controller (6 Zone, 230V)
✔ 1 x Instruction Manual

Applications:

✔ Small to Medium Residential Gardens & Landscapes – Ensures efficient water distribution for irrigation setups.
✔ Light Commercial Irrigation – Ideal for office parks, commercial properties, and green spaces.
✔ Drip Irrigation & Low-Flow Systems – Supports precision watering to conserve water and promote plant health.
✔ Wi-Fi Smart Irrigation Upgrade – Allows remote access for managing schedules from anywhere.

Benefits:

✔ Future-Proof & Expandable – Wi-Fi upgradability allows for smart irrigation integration.
✔ Enhanced Water Efficiency – Seasonal adjustments and rain sensor integration reduce water waste.
✔ Simple & Intuitive Programming – Dial-based operation for quick and easy scheduling.
✔ Weather-Based Scheduling – Minimizes water waste and ensures optimal plant hydration.
✔ Weatherproof & Durable Design – Built for long-lasting outdoor performance.

Why Choose the Rain Bird ESP-TM2-6?

The Rain Bird ESP-TM2-6 is a powerful, expandable, and intuitive irrigation controller, offering smart scheduling, remote control capability, and advanced water conservation features.

With Rain Bird’s trusted technology, user-friendly interface, and Wi-Fi compatibility, this controller is ideal for homeowners and property managers looking for a high-performance irrigation solution.

Important Note:

Product images are for reference only and may not always reflect exact scale or size.
