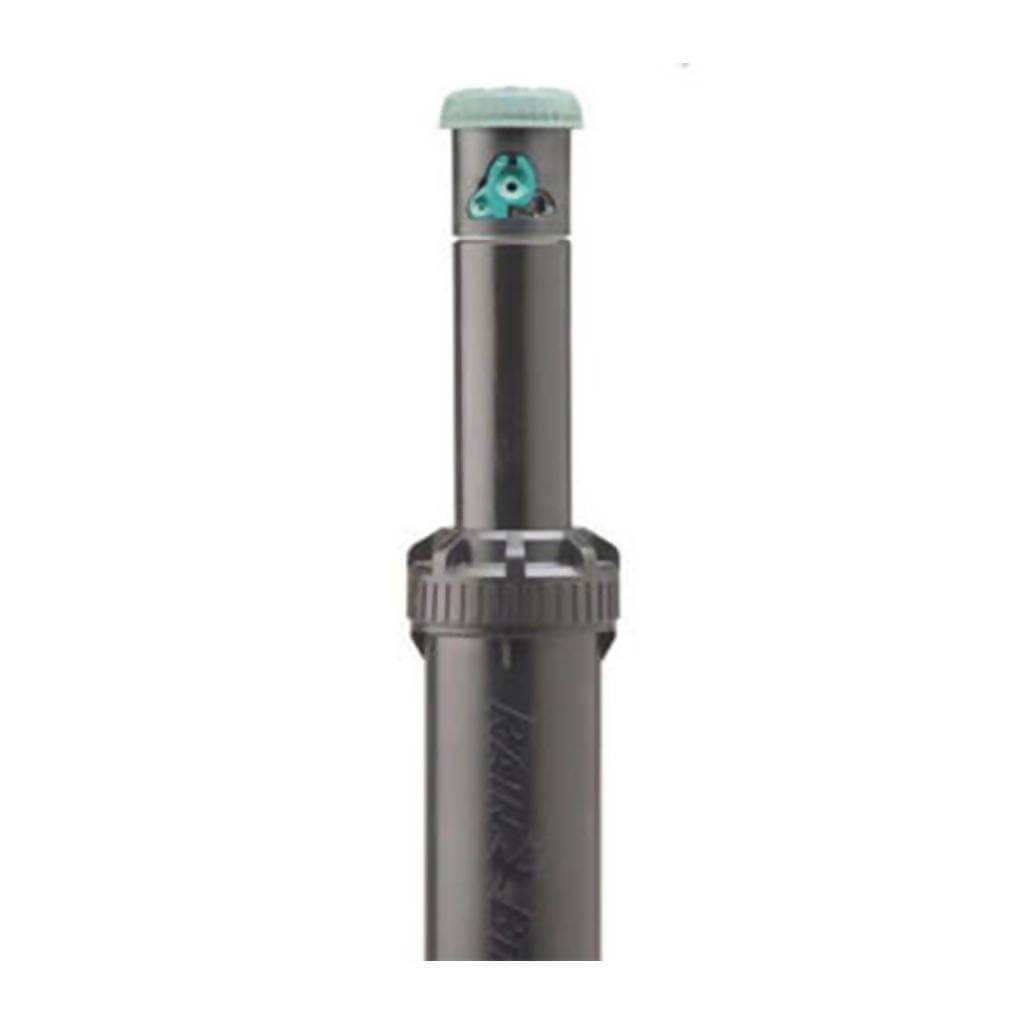

RAIN BIRD 8005 Rotor Sprinkler with 12.7cm Pop-Up & Adjustable Part-Circle & Non-Reversing Full-Circle Arc, NPT, 1 Inch

The RAIN BIRD 8005 Rotor Pop-Up Sprinkler is built rugged to withstand harsh conditions, designed and tested to ensure high reliability, ideal for sports fields, parks, and other large turf applications.

12.7cm (5in) pop-up rotor sprinkler with 50- 330° part circle adjustable arc & 360° non-reversing full-circle arc
Includes a Seal-A-Matic (SAM„¢) check valve that holds up to 3.1m (10ft) of elevation change, preventing puddling & erosion caused by low head drainage
Quick & easy wet or dry arc adjustment using a flat-blade screwdriver
Enjoy reliable operation with a memory arc & durable water-lubricated gear-driven design
Equipped with a heavy-duty retract spring - providing smooth pop-up & retraction
Includes 8 Rain Curtain nozzles that ensure even distribution of water with large wind-resistant droplets providing gentle close-in watering with no dry spots

The 8005 Series rotors are built with heavy-duty construction ensuring durability and tamper-free operation. Enjoy efficient operation with independent left & right edge adjustment with a part and full circle arc in one head. Equipped with a brass reinforced turret adding side impact protection & a non-strippable gear drive - ensuring resistance to vandals.
Rain Bird Corporation is a global privately-held manufacturer and supplier of irrigation products and services for landscapes, sports fields, golf courses, and agriculture - designed to minimize water consumption.
8005 Sprinkler Performance Chart

 Dimensions:

Exposed diameter: 4.8cm (1…žin)
Overall diameter: 7.9cm (3…›in)
Overall height: 25.7cm (10…›in)
Pop-up height: 12.7cm (5in)

*Pop-up height measured from the cover to center of the primary nozzle port. Overall body height is measured popped down
Operating range:

Radius: 11.9 - 24.7m (39 - 81ft)
Precipitation rate: 12 - 31mm/h (0.48 - 1.28in/h)
Pressure: 50 - 100psi (3.5 - 6.9bar)
Flow: 0.86 - 8.24m3/h; 14.4 - 137.4l/m (3.8 - 36.3gpm)

Product specifications:

Model: 8005 = 12cm pop-up rotor sprinkler with full and part circle adjustable arc
Inlet: 1in (26/34) NPT or BSP female threaded inlet
Nozzle outlet trajectory: 25º
Trade warranty: 5-year

Rain Curtain„¢ nozzles included:

04 - black
06 - light blue
08 - dark green
10 - grey
12 - beige
14 - light green
16 - dark brown
18 - dark blue
20 - red
22 - yellow
24 - orange
26 - white
