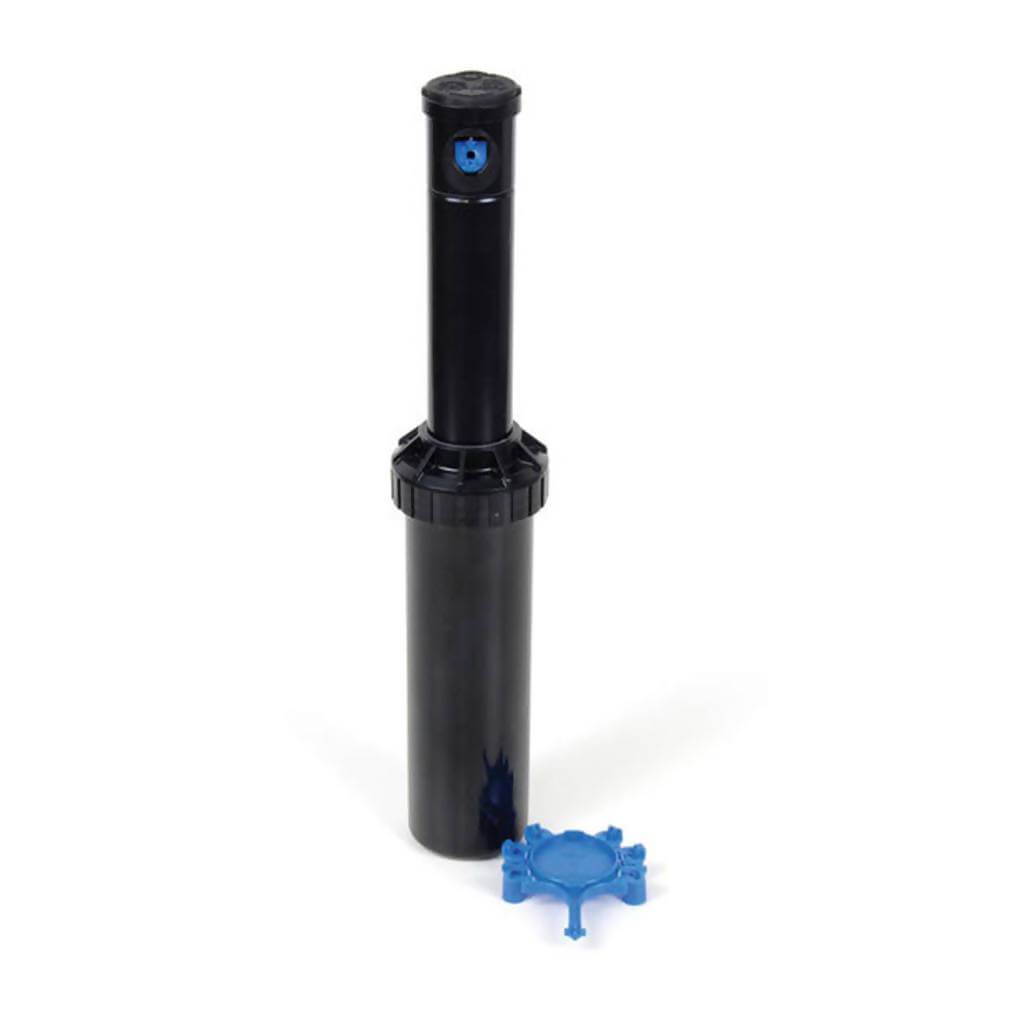

RAIN BIRD 3504-PC Rotor Sprinkler with 100mm Pop-up & Adjustable Arc, NPT, ½ Inch

The RAIN BIRD 3504-PC Rotor Sprinkler with Adjustable Arc is easy to use while providing reliability and convenience for residential applications.

10cm (4in) pop-up rotor sprinkler with a 40- 360° part circle arc rotation with reverse function
Quick & easy arc adjustment using a flat-blade screwdriver
Water lubricated gear-drive & quick get arc mechanism
Includes 6 Rain Curtain nozzles that ensure even distribution of water with large wind-resistant droplets providing gentle close-in watering with no dry spots

3500 series rotors are engineered to deliver a uniform spray pattern, giving you superior distribution uniformity - ensuring beautiful green lawns while saving water at the same time.
Rain Bird Corporation is a global privately-held manufacturer and supplier of irrigation products and services for landscapes, sports fields, golf courses, and agriculture - designed to minimize water consumption.
3500 Series Rotor Sprinkler Performance Chart

Dimensions:

Pop up height: 10.2cm (4in)
Overall body height: 16.8cm (6.6in)
Exposed surface diameter: 2.9cm (1.16in)

*Pop-up height measured from cover to center of the nozzle. Overall body height is measured popped down.
Operating range:

Precipitation rate: 9 - 21mm/h (0.37 - 0.83in/h)
Radius: 4.6 - 10.7m (15 - 35ft)
Radius may be reduced up to 35% with radius reduction screw
Pressure: 25 - 55psi (1.7 - 3.8bar)
Flow rate: 2.0 - 17.4l/m (0.54 - 4.6gpm)

Product specifications:

Model: 3504-PC = 100mm pop-up rotor sprinkler
Inlet: ½ (20/27) NPT female bottom threaded inlet
Full & part circle adjustment: 40° - 360°
Trade warranty: 3-year
