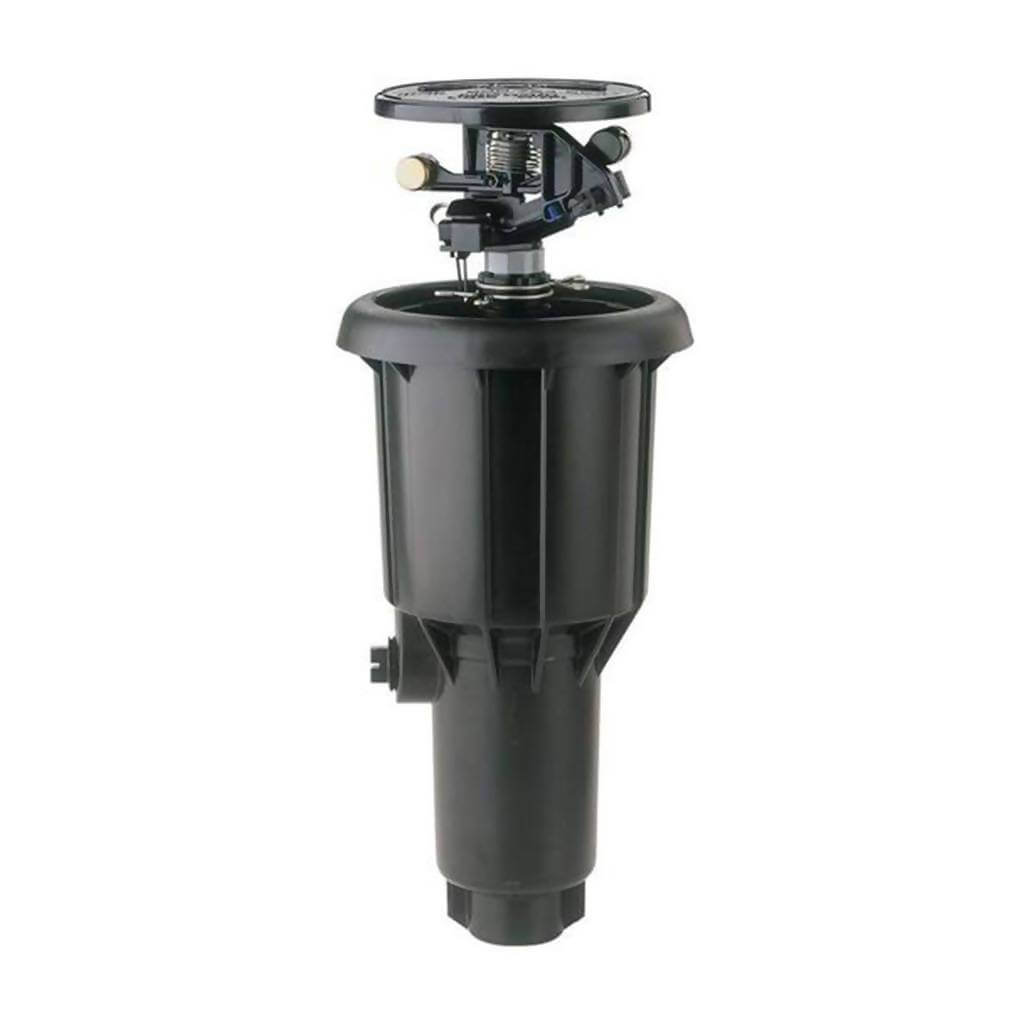

RAIN BIRD 2045A Maxi-Paw Impact Sprinkler, 76mm Pop-Up & Full-circle or Adjustable Arc

The RAIN BIRD 2045A Maxi-Paw Pop-up Impact Sprinkler has a powerful throw that allows maximum spacing and offers superior close-in watering and uniform water distribution. Low-pressure loss and an efficient, straight-through flow design to conserve energy and are ideal for dirty water applications.

7.6cm pop-up impact sprinkler with a full-circle or 20° - 340° adjustable arc & a 6.7 - 13.7m throw radius
Impact drive with straight-through flow for superior performance in dirty water with 7 different colour-coded nozzles for matched precipitation over a wide range of applications
Easy to adjust & easy to service with no tools required to change a nozzle
Heavy-duty ribbed plastic casing & double-weighted arm for decreased rotation & added throw distance
Self-flushing inner trip, powerful reverse action & adjustable arm spring - for efficient operation
Inlet filter screen & pressure-activated wiper seal protect internal parts from debris ensuring smooth pop-up & retraction

These heavy-duty impact rotors are designed for light commercial and residential automatic irrigation systems. This Series is noted for its superior performance with dirty water.
Rain Bird Corporation is a global privately-held manufacturer and supplier of irrigation products and services for landscapes, sports fields, golf courses, and agriculture - designed to minimize water consumption.
Maxi-Paw Impact Sprinkler Performace Chart:

 Dimensions:

Overall height: 23.6cm (9 3/10in)
Pop-up height: 7.6cm (3in)
Exposed surface diameter: 12.7cm (5in)

Operating Range:

Precipitation rate: 7 - 31mm/h (0.28 - 1.21in/h)
Radius: 6.7 - 13.7m (22 - 45ft)
Radius with radius reduction screw: 5.4m (18ft)
Pressure: 25 - 60psi (1.7 - 4.1bar)
Flow: 0.34 - 1.91m3/h; 0.9 - 0.53l/s (1.5 - 8.4gpm)

Product specifications:

Model: 2045A Maxi-Paw = Pop-Up Impact Sprinklers for Dirty Water Applications - Spacing Up to 13.7m (45ft)
Inlet: Combination ½in (15/21) or ¾in (20/27) FPT bottom & ½in (15/21) FPT side inlet
Nozzle outlet trajectory: 23° for 06, 07, 08, 10, & 12 nozzles
Low angle nozzle outlet trajectory: 11°
Trade warranty: 3-year

Applications:

Dirty water
