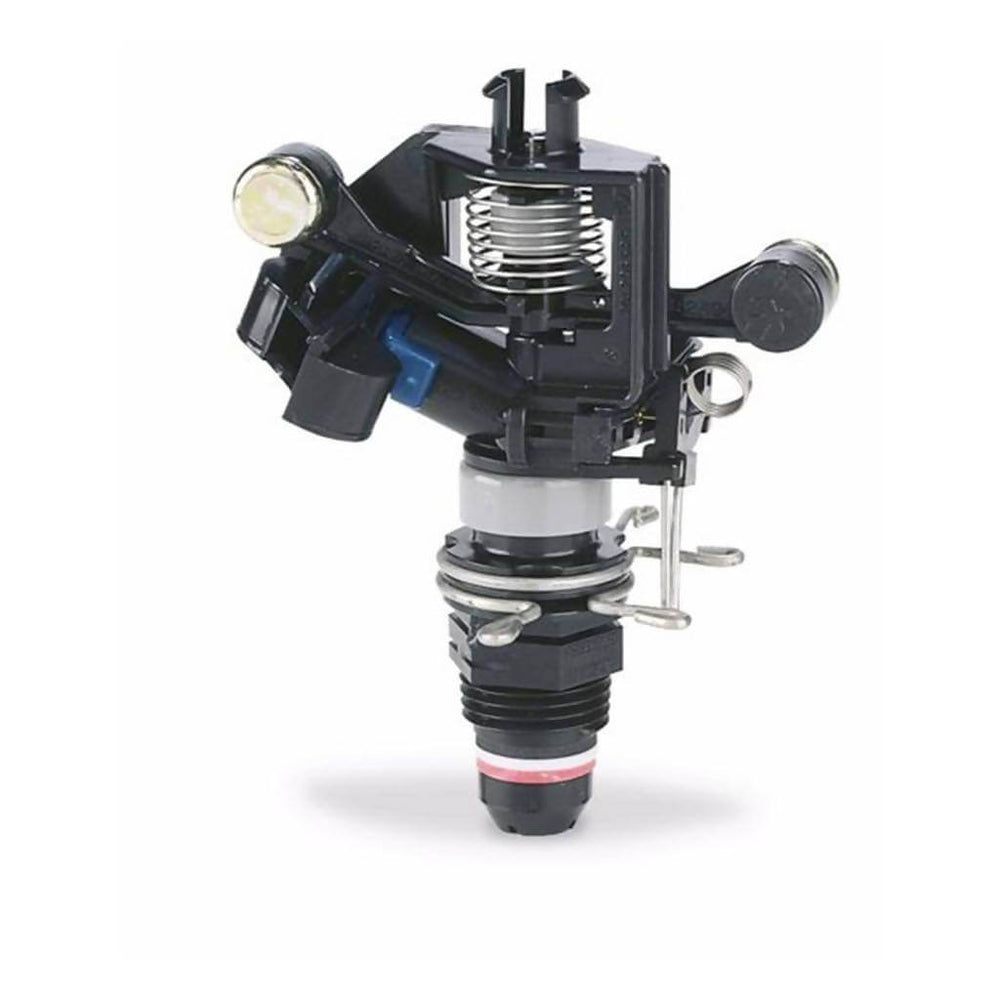

RAIN BIRD 2045-PJ Maxi-Bird Impact Sprinkler for Dirty Water Applications, 360° Full-circle or 20° - 340° Adjustable Arc

The RAIN BIRD 2045-PJ Maxi-Bird Impact Sprinkler is designed for a variety of applications where overthrow from full circle sprinklers should not reach restricted areas. The body, arm, bearing sleeve, and nipple are made of durable Delrin„¢ plastic - providing longevity.
Impact sprinkler with a full-circle or 20° - 340° adjustable arc & a 6.7 - 13.7m throw radius
Impact drive with straight-through flow for superior performance in dirty water
Equipped with 7 colour-coded bayonet mounted nozzles for matched precipitation over a wide range of applications
Easy to adjust & easy to service with no tools required to change a nozzle
Manufactured with a heavy-duty ribbed plastic casing & double-weighted arm for decreased rotation & added throw distance
Powerful reverse action & an efficient FP trip allowing full circle or part-circle operation
These heavy-duty impact rotors are designed for light commercial and residential automatic irrigation systems. This Series is noted for its superior performance with dirty water.Rain Bird Corporation is a global privately-held manufacturer and supplier of irrigation products and services for landscapes, sports fields, golf courses, and agriculture - designed to minimize water consumption.
Dimensions:
Overall height: 23.6cm (9 3/10in)
Pop-up height: 7.6cm (3in)
Exposed surface diameter: 12.7cm (5in)
Operating range:
Precipitation rate: 7 - 31mm/h (0.28 - 1.21in/h)
Radius: 6.7 - 13.7m (22 - 45ft)
Radius with radius reduction screw: 5.4m (18ft)
Pressure: 25 - 60psi (1.7 - 4.1bar)
Flow: 0.34 - 1.91m3/h; 0.9 - 0.53l/s (1.5 - 8.4gpm)
Product specifications:
Model: 2045-PJ Maxi-Bird = Impact Sprinklers for Dirty Water Applications - Spacing Up to 13.7m (45ft)
Inlet: Combination ½in (15/21) or ¾in (20/27) FPT bottom & ½in (15/21) FPT side inlet
Nozzle outlet trajectory: 23° for 06, 07, 08, 10, & 12 nozzles
Low angle nozzle outlet trajectory: 11°
Trade warranty: 3-year
Applications:Dirty water
