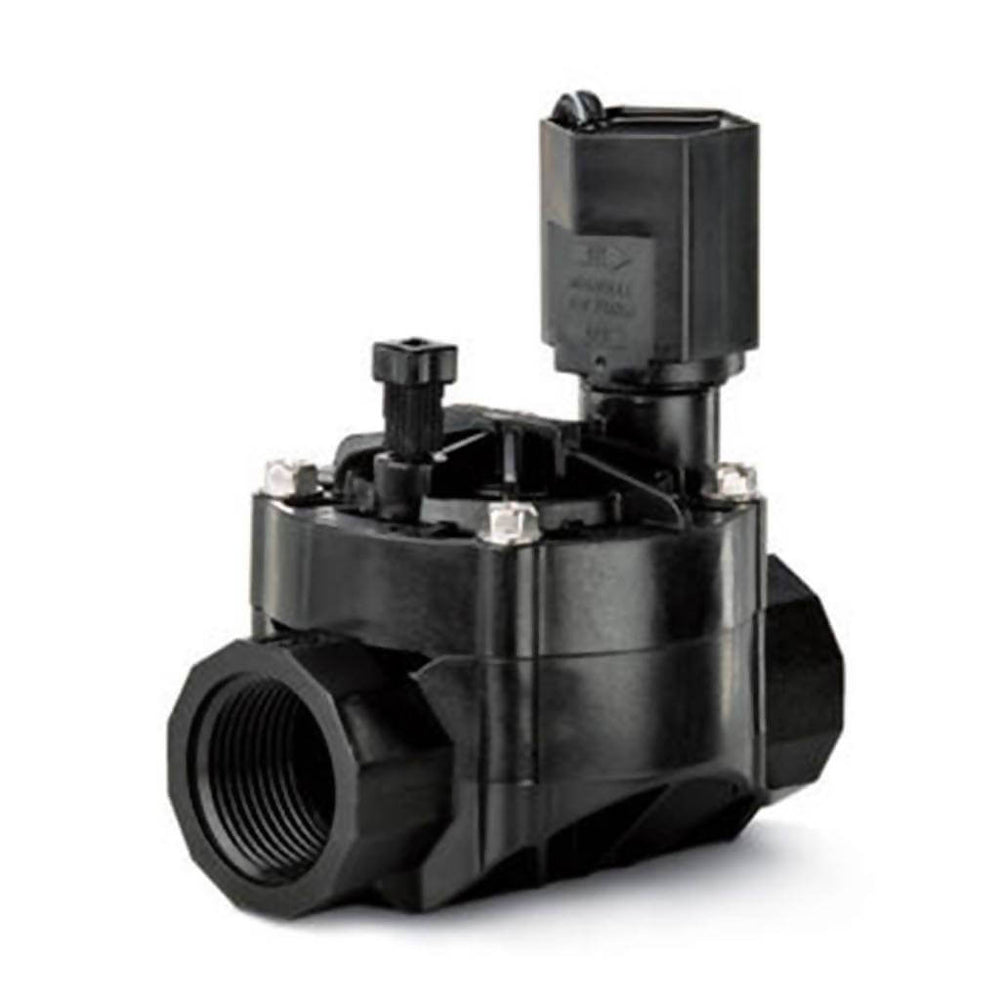

RAIN BIRD 100-HV-BSP Inline Sprinkler Valve | 1-Inch (25mm) BSP Thread | 24V AC

The RAIN BIRD 100-HV-BSP Inline Sprinkler Valve is a high-performance residential irrigation valve, built for durability, reliability, and efficiency. Its compact design makes installation easier and allows multiple valves to fit within a single valve box, while its heavy-duty construction ensures long-term durability with minimal maintenance.

Equipped with a glass-filled polypropylene body, a Buna-N diaphragm with a stainless steel spring, and self-cleaning pilot filtration, this Rain Bird HV Series valve is designed to withstand harsh conditions while providing smooth operation with reduced water hammer.

Rain Bird is a trusted global leader in irrigation, manufacturing high-quality products for residential, commercial, agricultural, and golf course irrigation systems, all designed to optimise water efficiency and performance.

Key Features:

• Compact Design – Allows easier installation and multiple valves in a single box.
• Durable Glass-Filled Polypropylene Body – Built for long-term reliability and strength.
• External & Internal Manual Bleed – Provides quick system flushing and spray-free operation.
• Eccentric Diaphragm for Smooth Closing – Minimises water hammer effects.
• Buna-N Diaphragm with 90-Mesh Pilot Filter – Ensures self-cleaning and consistent performance.
• Stainless Steel Spring – Delivers superior strength and longevity.
• Captive Multi-Drive Screws – Makes maintenance hassle-free.
• Reliable 24V AC Solenoid – Provides fast and efficient valve operation.

Product Specifications:

• Model: RAIN BIRD 100-HV-BSP
• Thread Type: 1-Inch (25mm) BSP Female x Female Thread
• Solenoid Voltage: 24V AC, 50/60Hz
• Inrush Current: 0.290A at 60Hz
• Holding Current: 0.091A at 60Hz
• Coil Resistance: 70-85 Ohms (40°F - 110°F)
• Material: Glass-filled polypropylene
• Diaphragm Material: Buna-N with self-cleaning 90-mesh (200-micron) pilot water filter
• Spring Material: Stainless steel

Performance Chart & Operating Range:

• Pressure Range: 1.0 - 10.3 bar (15 - 150 psi)
• Flow Rate: 0.05 - 6.82 m³/h (0.01 - 1.89 L/s)
• Operating Water Temperature: Up to 43°C (110°F)
• Ambient Temperature: Up to 52°C (125°F)

Dimensions:

• Height: 11.7 cm
• Length: 11.2 cm
• Width: 7.9 cm

Recommendations & Important Notes:

✔ Flow Rate Guidelines: Rain Bird recommends discharge velocities not exceeding 2.3 m/s (7.5 ft/sec) in supply lines to reduce water hammer effects.
✔ Pressure Regulation Compatibility: Rain Bird residential valves cannot be used with PRS pressure-regulating modules.
✔ System Compatibility: Not recommended for use with two-wire systems.

Applications:

• Residential Lawn & Garden Irrigation – Provides reliable and efficient sprinkler control.
• Commercial & Industrial Landscape Irrigation – Ensures consistent water distribution.
• Agricultural Irrigation Systems – Ideal for crop irrigation with precision flow control.
• Golf Course Sprinkler Systems – Maintains optimal turf hydration.
• Sports Field Irrigation – Keeps fields and stadiums well-watered.

Benefits:

✔ Built for Durability & Performance – Constructed from high-quality materials for long-lasting operation.
✔ Smooth & Quiet Operation – Reduces water hammer and ensures system longevity.
✔ Easy Installation & Maintenance – Compact design, captive screws, and self-cleaning filter for hassle-free servicing.
✔ Water-Efficient & Reliable – Provides precise irrigation control with minimal water waste.
✔ Trusted Brand – Manufactured by Rain Bird, a global leader in irrigation technology.
