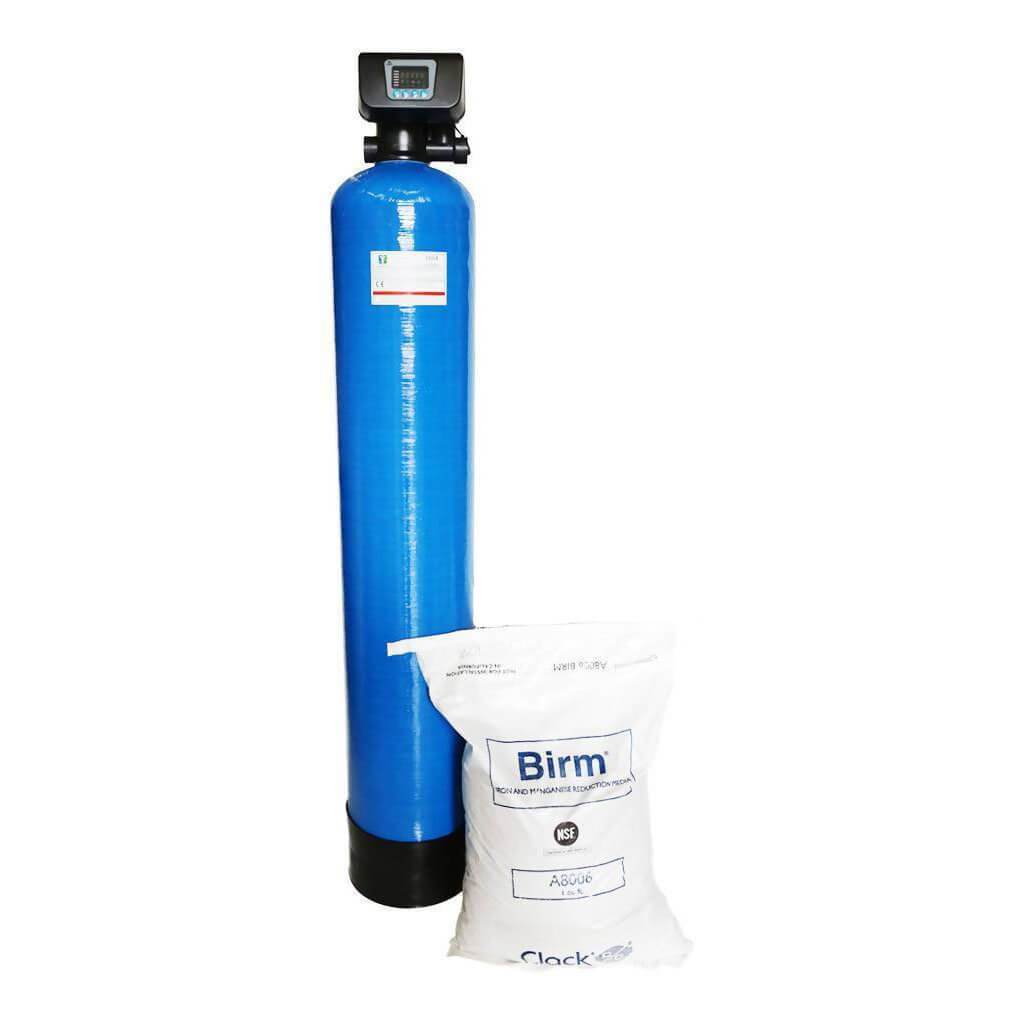

BIRM Media FRP Vessel 10x54 Automatic Backwash Complete With Media

Birm® is both an efficient and economical media for the removal of iron and manganese compounds from groundwater supplies. It is easily cleaned by backwashing to remove the filtered compounds and does not require regeneration. For effective use, it requires a pH of 6.8 to 9.0. Birm® can be used in either gravity-fed or pressurised water treatment systems. It is NSF Certified for assurance of food-grade quality.
Product Description:
Iron Removal Filter for Borehole and Wellpoint Water with FRP 10x54, Manual Backwash Head, and Birm® Media. NSF Certified, capable of filtering up to 1000 litres per hour for effective iron and manganese filtration.
FRP vessels are specifically designed to deliver high flow rates and can be combined with various specialised filtration media and chemicals for water purification systems, suitable for applications ranging from medical to residential borehole systems.
NSF Certification:
The NSF mark provides assurance that the product has been tested by one of the most respected independent certification organisations worldwide. It is highly valued by consumers, manufacturers, retailers, and regulatory agencies globally.
What You Get:
FRP Vessel 10x54: 1 unit
RUNXIN Auto Backwash Head: 1 unit
Birm® Iron Removal Media 18kg: 2 units
Conditions for Operation:
Alkalinity should be greater than twice the combined sulphate and chloride concentration.
Maximum water temperature: 38°C
Water pH range: 6.8-9.0
Dissolved Oxygen (D.O.) content must be at least 15% of the iron (or iron and manganese) content.
Bed depth: 30-36 inches
Freeboard: Minimum 50% of bed depth
Backwash rate: 10-12 gpm/sq. ft.
Backwash Bed Expansion: Minimum 20-40% of bed depth
Service flow rate: 3.5-5 gpm/sq. ft. Intermittent flow rates and/or favourable local conditions may allow for higher flow rates.
Technical Specifications:
Opening size: Top 2.5 inches
Recommended flow rate: 0.6—1.5
Vessel volume: 62L
Operating pressure: 100 PSI (PE) / 150 PSI (ABS)
Operating temperature: ? 50°C (PE) / ? 80°C (ABS)
Tank dimensions (L x B x H): 25 x 25 x 137 cm
Vessel weight: 8 kg
