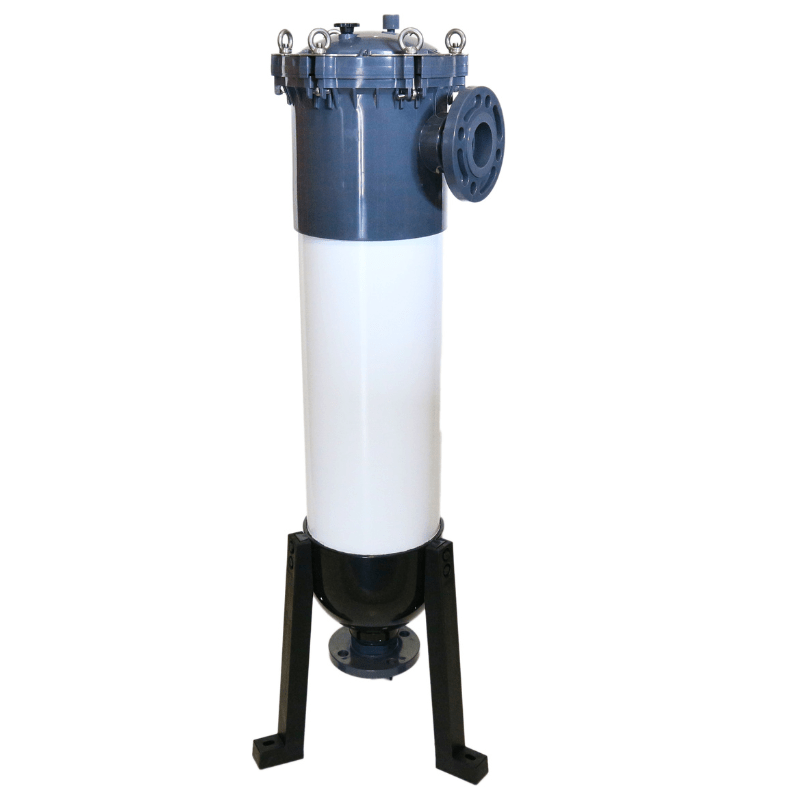

HXP PVC Bag Filter Housing – #2 Double Length, 2" Flange Connection

The HXP PVC Bag Filter Housing – #2 double length with 2" flanged inlet and outlet connections – is a durable, high quality and highly efficient solution for high-volume liquid filtration in water treatment, agriculture, food and beverage, chemical processing, and general industrial use.

Made from high-grade PVC, the housing provides excellent resistance to corrosion and chemical attack, making it suitable for both aggressive and non-aggressive fluid applications. Its lightweight structure allows for easy installation and maintenance, while the double-length design enables extended filtration cycles and reduced cartridge changeouts.

Key Features:

✔ Corrosion-Resistant PVC Construction – Ideal for water treatment and chemical environments.
✔ #2 Bag Size – Double Length – Accommodates industry-standard filter bags, offering extended service life.
✔ 2” Flanged Connections – Provides secure, high-flow system integration with minimal pressure loss.
✔ High Flow Rate Capability – Designed for continuous-duty filtration applications.
✔ Top Entry Design – Ensures positive sealing and ease of bag replacement.
✔ Lightweight & Durable – Easy to install, transport, and maintain, with long-term performance.
✔ Ideal for Non-Metallic Systems – Suitable for setups requiring metal-free liquid contact.

Technical Specifications:

• Material: PVC (Polyvinyl Chloride)

• Bag Size: #2 (Double Length)

• Inlet/Outlet Connection: 2” Flanged

• Max Flow Rate: Up to 40 m³/h (depending on fluid and micron rating)

• Max Operating Pressure: 4.5 Bar (65 psi)

• Max Operating Temperature: 45°C

• Housing Colour: Grey & White

• Seal Type: EPDM

• Installation Orientation: Vertical

• Mounting Base: Integrated flange foot for stability

• Dimensions: Ø 257mm x 1200mm (Height)


What’s in the Box?

✔ 1 x HXP PVC Bag Filter Housing – #2 Size (Double Length)
✔ 1 x Lid with Clamp Mechanism
✔ 1 x Internal Support Basket
✔ 2 x Flanged Ports (2")
✔ Seal Kit (EPDM or Viton, depending on selection)

(Filter bags sold separately)

Applications:

✔ Water Treatment Plants – Removes sediment, particulates, and debris.
✔ Agricultural & Irrigation Systems – Protects downstream components like pumps, nozzles, and drippers.
✔ Food & Beverage Industry – Filters processing water, rinsing streams, and CIP return water.
✔ Chemical Processing – Compatible with a wide range of non-aggressive chemicals.
✔ Aquaculture & Fisheries – Maintains water clarity and health in tanks or ponds.
✔ RO Pre-Filtration – Ideal as a first-stage filter before reverse osmosis units.

Benefits:

✔ Chemical & Corrosion Resistant – Perfect for harsh environments.
✔ High Volume Capacity – Long intervals between filter bag changes.
✔ Compact & Lightweight Design – Simplifies installation and handling.
✔ Flexible Integration – Easily connects to existing piping via 2” flanges.
✔ Cost-Effective Filtration – Reduces operational costs through longer filter life.

Why Choose the HXP PVC Bag Filter Housing – #2 Double Length?

This rugged, non-metallic filter housing offers superior chemical resistance, long service intervals, and efficient particulate removal, making it a top choice for high-flow water filtration in demanding environments.

Whether used in water treatment, agriculture, or industrial processes, the HXP Bag Filter Housing delivers reliable protection for equipment and improved water quality.

Important Note:

Product images are for reference only and may not reflect the exact configuration. Filter bags are sold separately.
