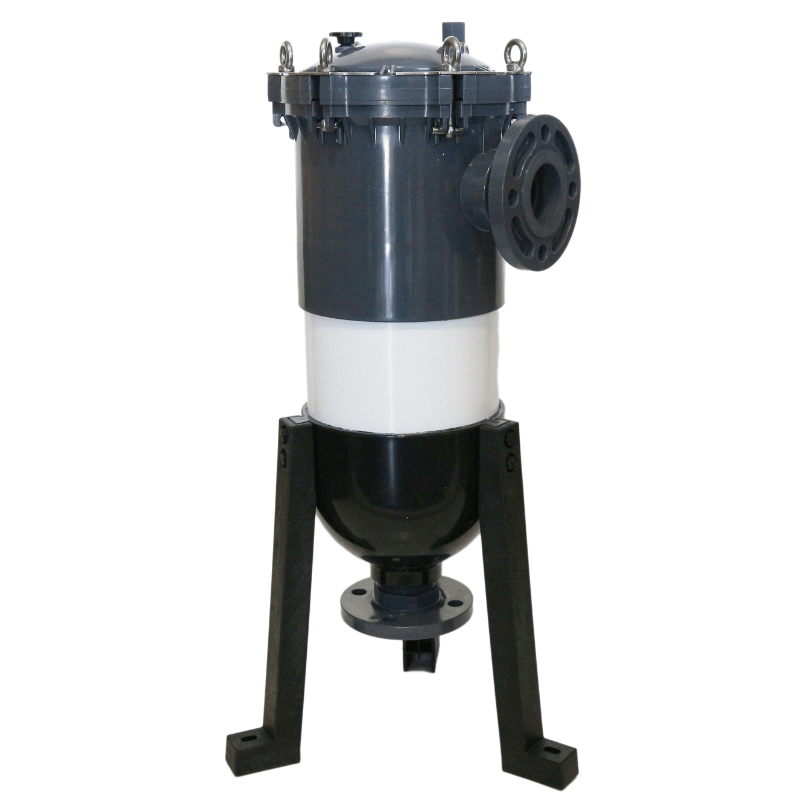

HXP PVC Bag Filter Housing – #1 Single Length, 2" Flange Connection

The HXP PVC Bag Filter Housing – #1 single length with 2" flanged inlet and outlet connections – is a durable, high-quality, and highly efficient solution for medium-to-high volume liquid filtration in water treatment, agriculture, food and beverage, chemical processing, and general industrial use.

Made from high-grade PVC, the housing offers excellent resistance to corrosion and chemical attack, making it suitable for both aggressive and non-aggressive fluid applications. Its lightweight structure allows for easy installation and maintenance, while the single-length design supports effective filtration with a more compact footprint, ideal where space is limited.

Key Features:

✔ Corrosion-Resistant PVC Construction – Ideal for water treatment and chemical environments
✔ #1 Bag Size – Single Length – Accommodates industry-standard filter bags, offering reliable service intervals
✔ 2” Flanged Connections – Provides secure, high-flow system integration with minimal pressure loss
✔ Medium-High Flow Capability – Designed for continuous-duty filtration applications up to 20 m³/h

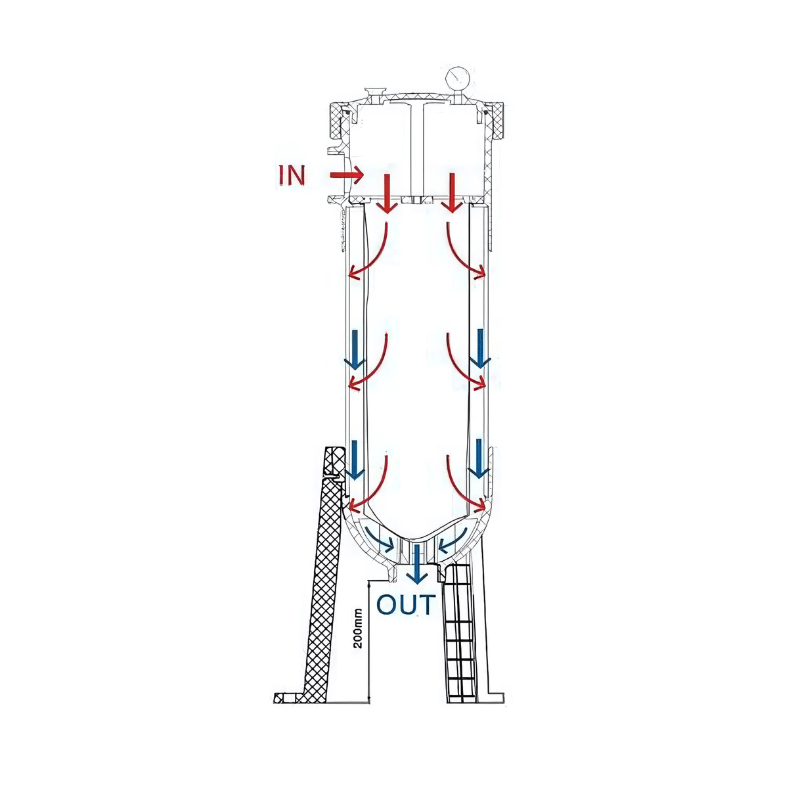

✔ Top Entry Design – Ensures positive sealing and ease of bag replacement
✔ Lightweight & Durable – Easy to install, transport, and maintain, with long-term performance
✔ Ideal for Non-Metallic Systems – Suitable for metal-free liquid handling applications

Technical Specifications:

• Material: PVC (Polyvinyl Chloride)

• Bag Size: #1 (Single Length)

• Inlet/Outlet Connection: 2” Flanged

• Max Flow Rate: Up to 20 m³/h (depending on fluid and micron rating)

• Max Operating Pressure: 4.5 Bar (65 psi)

• Max Operating Temperature: 45°C

• Housing Colour: Grey & White

• Seal Type: EPDM

• Installation Orientation: Vertical

• Mounting Base: Integrated flange foot for stability

• Dimensions: Ø 257mm x 800mm (Height)

What’s in the Box?

✔ 1 x HXP PVC Bag Filter Housing – #1 Size (Single Length)
✔ 1 x Lid with Clamp Mechanism
✔ 1 x Internal Support Basket
✔ 2 x Flanged Ports (2")
✔ Seal Kit (EPDM or Viton, depending on selection)

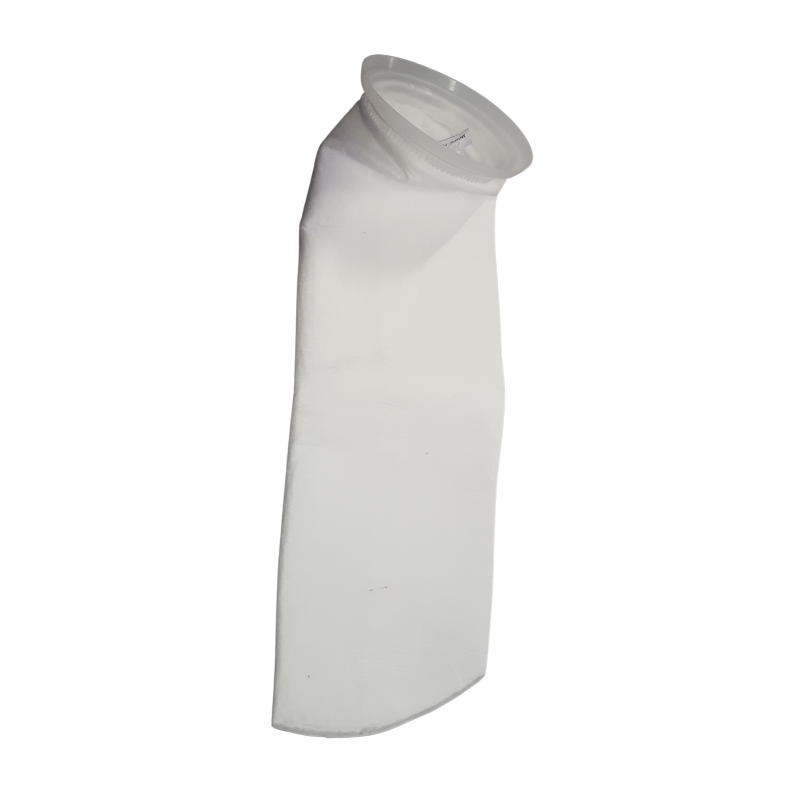

Filter bags sold separately

Applications:

✔ Water Treatment Plants – Removes sediment, particulates, and debris
✔ Agricultural & Irrigation Systems – Protects pumps, nozzles, and downstream components
✔ Food & Beverage Industry – Filters processing water, rinsing streams, and CIP return flows
✔ Chemical Processing – Compatible with a wide range of non-aggressive chemicals
✔ Aquaculture & Fisheries – Maintains clear, healthy water in tanks or ponds
✔ RO Pre-Filtration – Ideal as a first-stage filter before reverse osmosis systems

Benefits:

✔ Chemical & Corrosion Resistant – Perfect for harsh environments and aggressive media
✔ Medium Volume Capacity – Supports routine operations with extended intervals between changes
✔ Compact & Lightweight Design – Simplifies installation and handling
✔ Flexible Integration – Easily connects to existing systems with standard 2” flanges
✔ Cost-Effective Filtration – Reduces operational costs through extended filter life

Why Choose the HXP PVC Bag Filter Housing – #1 Single Length?

This rugged, non-metallic filter housing offers exceptional chemical resistance, space efficiency, and reliable performance, making it a preferred choice for medium-flow water filtration in demanding environments.

Whether used in industrial water treatment, agricultural irrigation, or chemical processing systems, the HXP #1 Bag Filter Housing delivers dependable protection for downstream equipment and improved water quality.

Important Note:

Product images are for reference only and may not reflect the exact configuration. Filter bags are sold separately.
