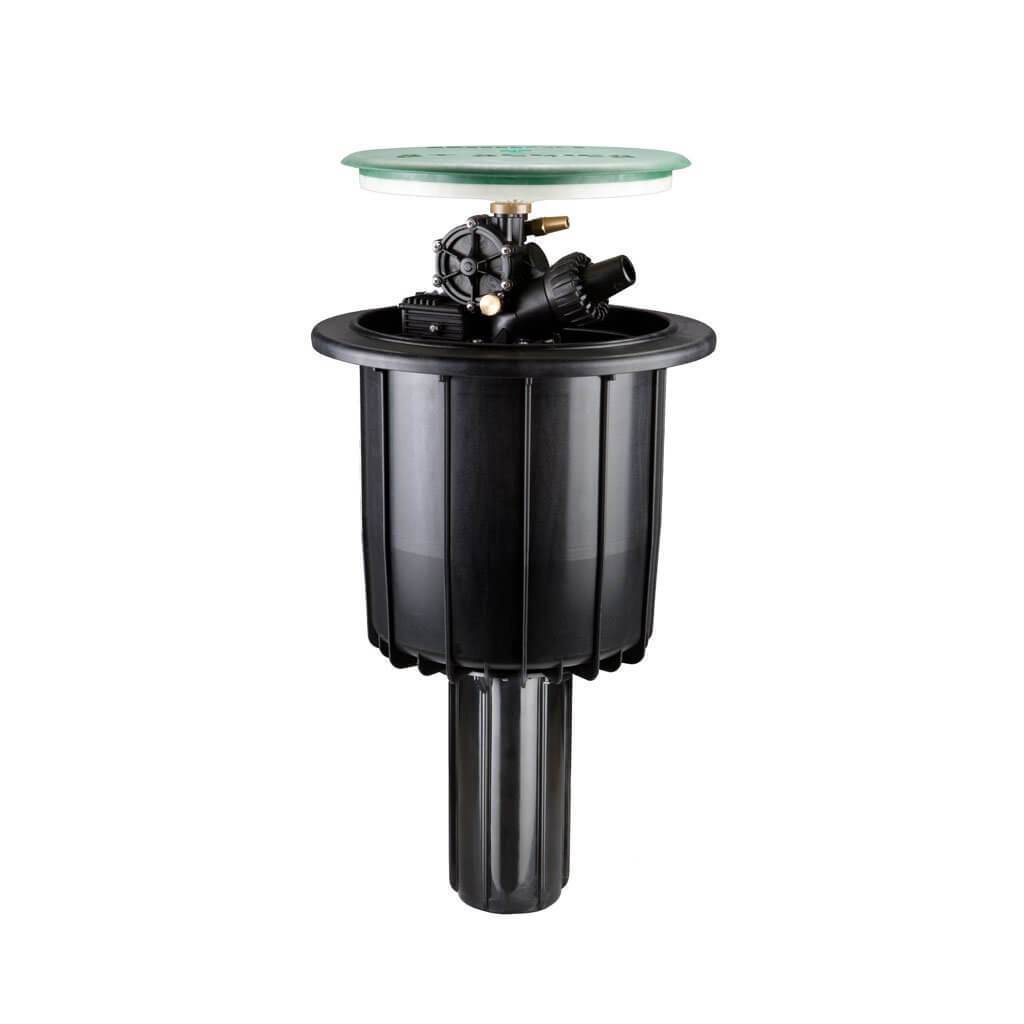

HUNTER ST1600HSB High-Speed Sprinkler for Synthetic Turf (50.3m Max Throw Radius, 57cm Height)

The HUNTER ST1600HSB High-Speed Sprinkler for Synthetic Turf (50.3m Max Throw Radius, 57cm Height) is a riser-mounted rotor with adjustable arc and full-circle capabilities that can be mounted onto the enhanced ST synthetic turf irrigation system solution, perfect for those installations where it is preferable to keep all irrigation piping and equipment away from the synthetic surface.

Efficient high-speed rotation up to 65 seconds at a 180° arc setting with 8 bar operating pressure.

Riser-mounted sprinkler allows retrofitting without disturbing the surface
Long-range performance up to 50.3m with 6 nozzles
Short-range performance at 32.5m
Full-circle & adjustable-arc in 1 model 40° - 360°

Hunter Industries is a global manufacturer of a full range of high-quality irrigation products from controllers, rotors, rotary sprinklers, spray head sprinklers, nozzles, valves, weather drips, and much more.
ST1600HSB Performance Chart:

Product specifications:

Standard nozzle: #20
Nozzle range: #16 to #26
Nozzle trajectory: 22.5°

Gear drive: Isolated & grease-lubricated

Arc adjustment: Movable stops (left & right)

Arc setting: 40° to non-reversing 360°
Ratcheting nozzle turret
Telescoping rubber infill barrier on riser
Adjustable speed of rotation: 0 to 65secs & high-speed at 180°/8bar setting, 800kPa)
Internal construction: brass, stainless steel, & ball bearings

Dimensions:

Overall height: 57cm

Pop-up height: 13cm

Diameter: 36cm

Inlet size: 50mm BSP*

*Use P/N 241400 adapter to 50mm PVC pipe if needed
Operating specifications:

Radius: 32.5 to 50.3m
Flow: 21.8 to 74.2m3/hr; 364 to 1,237l/min
Operating pressure range: 4.0 to 8.0bar; 400 to 800kPa
Precipitation rate: 60mm/hr approximately

Warranty: 5 years for component parts
