HUNTER Soil-Clik Moisture Sensor Module & Probe

HUNTER Soil-Clik shuts down irrigation when desired moisture level has been reached.
One-touch override allows soil moisture bypass for special conditions
Low voltage outdoor enclosure powered by host controller
Easy installation allows probe to be up to 300m from controller
Connects to Hunter sensor inputs, or use to interrupt common wires in virtually any 24 VAC irrigation system
Ideal companion sensor to Solar Sync®
Soil moisture level & status at a glance

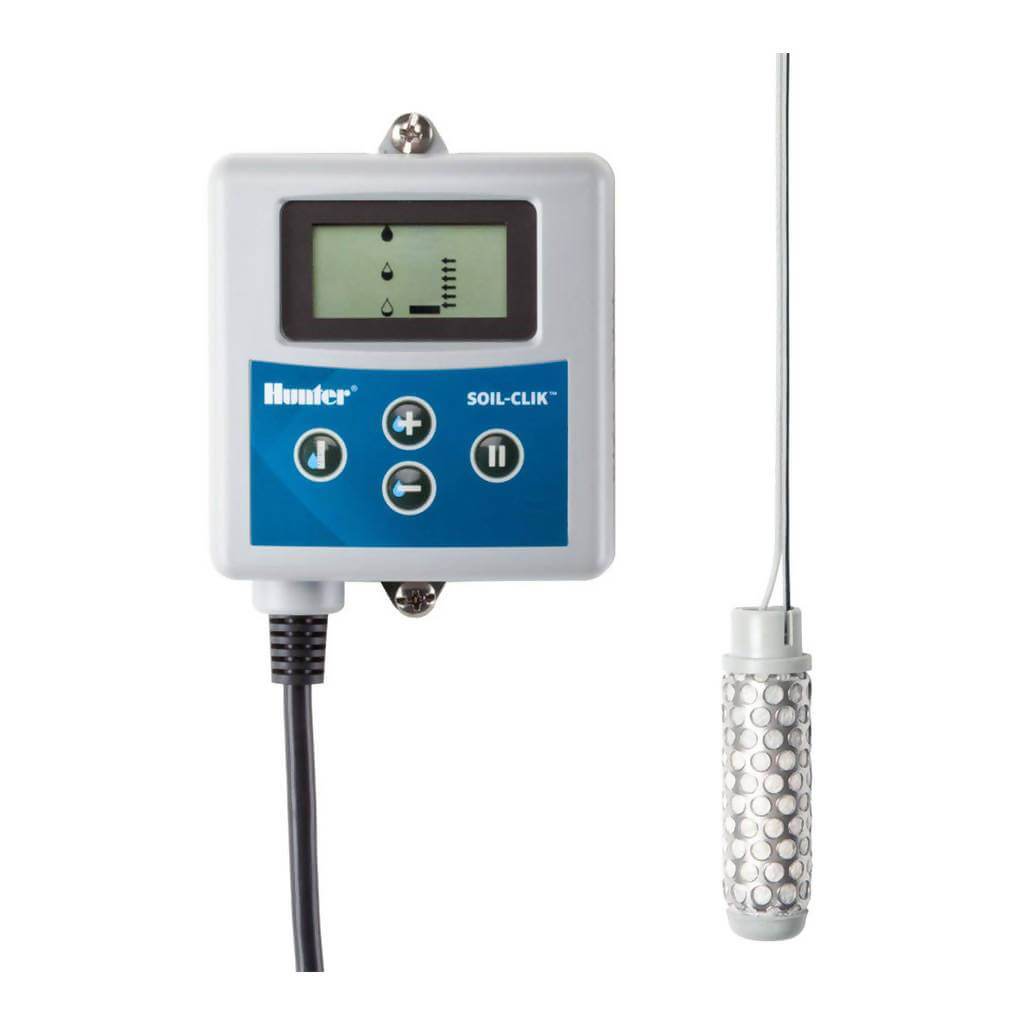

The Soil-Clik simplifies soil moisture sensing. The Soil-Clik probe uses proven technology to measure moisture within the root zone. When the probe senses that the soil has reached its desired moisture level, it will shut down irrigation, preventing water waste.Soil-Clik has two components: A moisture sensor probe, which is placed in the soil, and an electronic module, which communicates with the probe and the controller. The probe is simple to install €“ bury it to the correct root depth for your plant material. It can be placed up to 300 metres from the controller. Easy push-button operation allows adjustments to the desired moisture level, with an immediate update of actual measurements.The module attaches to all AC powered Hunter controllers and will work with most other manufacturers€™ AC powered controllers. Soil-Clik can be programmed to shut down irrigation when it senses adequate moisture.Dimensions:Module
Height: 11.4cm
Width: 8.9cm
Depth: 3cm
Power: 24 VAC, 100mA max
Probe
Diameter: 2cm
Height: 8.3cm
Wire to probe: 300m max
1 mm² direct-burial wire
Hunter Industries is a global manufacturer of a full range of high-quality irrigation products from controllers, rotors, rotary sprinklers, spray head sprinklers, nozzles, valves, weather drips and much more.Product specifications:
Model: SOILCLIK = Soil-Clik moisture sensor module and prob
Max distance, control module to controller: 2m
Max distance, control module to sensor probe: 300m
Input power: 24 VAC, 100mA max
Output: Normally-closed dry contact closure
Enclosure: NEMA 3R, indoor/outdoor
