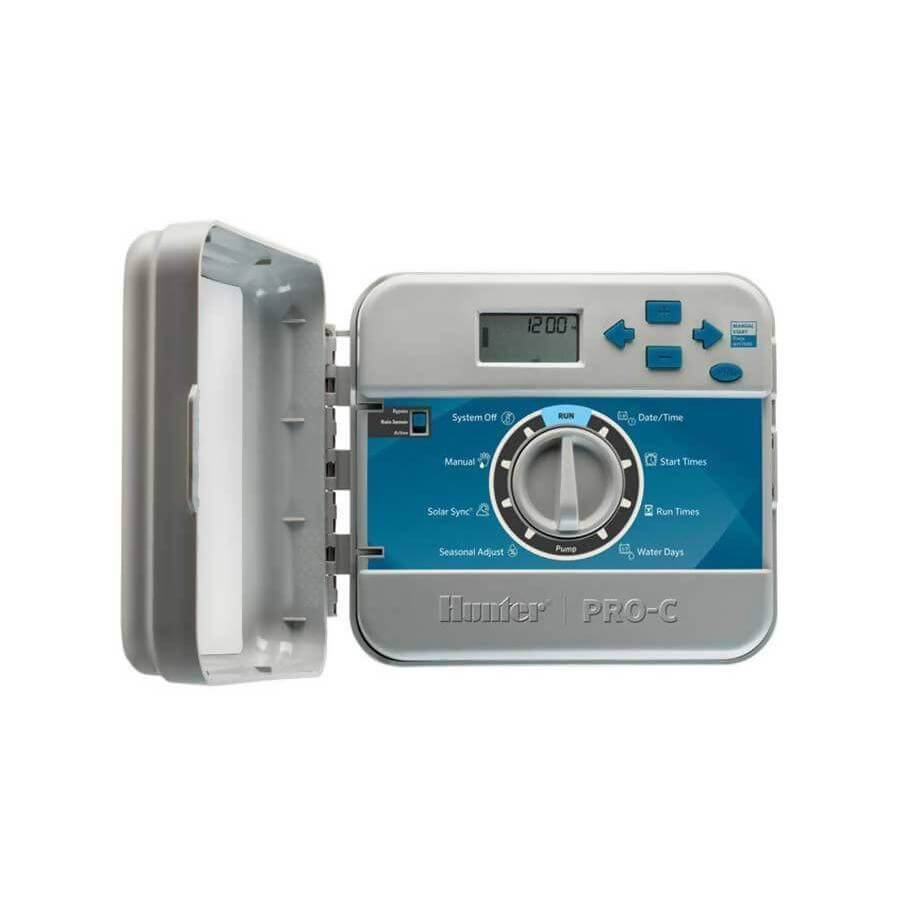

HUNTER PRO-C PC401iE 4 Station Indoor Controller, Plastic, 230 VAC

The Hunter PRO-C PC401iE 4-Station Indoor Irrigation Controller is a versatile, expandable, and highly reliable irrigation controller, designed for residential and small commercial irrigation systems.

With 4 base stations and modular expansion up to 16 zones, it offers flexibility for system growth, making it ideal for landscapes requiring scalable irrigation solutions.

The indoor-rated plastic enclosure ensures safe installation in protected areas, while advanced scheduling featuresprovide precision irrigation management for water efficiency and landscape health.

Key Features:

✔ 4-Station Base Model (Expandable to 16 Stations) – Scalable design for growing irrigation systems.
✔ Indoor-Rated Plastic Enclosure – Safe and compact design for protected installation areas.
✔ Modular Expansion – Supports additional station modules for future growth.
✔ 3 Independent Programs with 4 Start Times Each – Customisable watering schedules for different zones.
✔ Seasonal Adjustment (10% to 150%) – Allows easy adaptation of irrigation schedules based on seasonal changes.
✔ Rain Sensor Compatibility – Integrates with weather sensors to automatically pause irrigation when needed.
✔ Non-Volatile Memory – Retains programmed schedules even after power loss.
✔ Pump/Master Valve Control – Ensures efficient operation for pump-fed irrigation systems.
✔ User-Friendly Dial-Based Programming – Easy setup with an intuitive interface.

Technical Specifications:

• Model: PC401iE
• Number of Stations: 4 (Expandable up to 16)
• Number of Programs: 3
• Start Times Per Program: 4
• Max Station Run Time: 6 hours
• Enclosure Type: Indoor-Rated, Plastic
• Power Supply: 230VAC
• Transformer Output (24VAC): 1A
• Station Output (24VAC): 0.56A
• Pump/Master Valve Output: Yes
• Sensor Input: Yes (Compatible with Rain & Weather Sensors)
• Operating Temperature: -18°C to 60°C
• Certifications: CE, UL, cUL, C-tick, FCC

Dimensions:

• Height: 20.3cm
• Width: 22.9cm
• Depth: 9cm

Applications:

✔ Residential Irrigation Systems – Perfect for home gardens and lawn irrigation.
✔ Small Commercial Landscapes – Ideal for office courtyards and green spaces.
✔ Expandable Irrigation Systems – Start with 4 stations and expand up to 16 zones.
✔ Weather-Based Irrigation Control – Integrates with rain and freeze sensors for water efficiency.

Benefits:

✔ User-Friendly Programming – Dial-based scheduling for easy and quick setup.
✔ Scalable & Future-Proof – Modular expansion ensures long-term system adaptability.
✔ Water-Saving Efficiency – Rain sensor compatibility and seasonal adjustments reduce water waste.
✔ Compact & Indoor-Friendly – Designed for indoor installation in garages, pump rooms, and protected areas.
✔ Reliable & Durable – Non-volatile memory ensures settings are retained even during power interruptions.

Why Choose the Hunter PRO-C PC401iE Controller?

The Hunter PRO-C PC401iE is an expandable and feature-rich indoor irrigation controller, offering smart scheduling, modular flexibility, and reliable performance.

With advanced scheduling capabilities, an intuitive user interface, and seamless sensor integration, it is the perfect solution for residential and small commercial irrigation setups.
